ZKHOIST Vacuum Sheet Lifters are engineered specifically for automated loading and unloading of laser cutting machines, as well as the handling of various smooth, flat plates. Utilizing secure vacuum suction to grip materials, they seamlessly execute lifting and horizontal transfer operations smoothly and efficiently—all while ensuring zero damage to the plate surfaces.
Vacuum Sheet Lifters with a rated lifting capacity spanning 500 kg to 2500 kg, we offer three distinct power configurations to perfectly match your specific working conditions:
- AC Powered Series (AC): Driven directly by industrial power supplies, this option delivers high and stable vacuum levels. It is purpose-built for long-term, high-intensity, uninterrupted operations, making it particularly well-suited for plates with complex surface conditions.
- DC Battery Powered Series (DC): Powered by an integrated, high-performance 12V battery, this setup requires no external power cables. Eliminating cable entanglement allows unrestricted, highly flexible movement across multiple workstations when paired with overhead cranes.
- Pneumatic Series (Pneumatic): Driven purely by compressed air (with a maximum capacity of 500 kg), its pneumatic cylinder lifting system achieves cycle times significantly faster than traditional electric hoists. It integrates flawlessly with pillar-mounted or wall-mounted jib cranes, making it the ultimate solution for short-distance, high-frequency loading applications.
Fully compatible with a wide range of industrial cranes, jib cranes, and manipulator arms, our vacuum lifters deliver efficient, ergonomic, and secure solutions for your smart material handling needs.
Configurations & Features
To accommodate diverse working condition requirements, we provide three customized power configurations as follows:
| Features | Descriptions |
| 3 Power Configurations | AC Powered / DC Battery / Pneumatic, covering all operational scenarios. |
| Broad Load Range | Rated lifting capacity of 500kg – 2500kg, ideal for laser cutting loading/unloading and various sheet handling. |
| Non-Destructive Suction | Grips via vacuum suction, ensuring zero damage to sheet surfaces and edges. |
| Optional Tilting Function | Supports 90° / 180° tilting/flipping, making it easy to verticalize, flatten, or perform dual-sided inspections. |
| Smart Integration & Adaptation | Compatible with industrial cranes, jib cranes, and manipulator arms to achieve automated material handling. |
| Ergonomic Design | Simple operation that drastically reduces manual handling intensity and workplace safety risks. |
| Fully Customized Solutions | Pad sizes, load capacities, and power configurations can be tailored to your specific working conditions. |
Industries & Typical Applications
- Laser Cutting: Automatic loading & unloading of metal sheets.
- Metal Fabrication: Production line handling of steel, aluminum & stainless steel sheets.
- Stone Processing: Lifting & flipping of marble and granite slabs.
- Glass Manufacturing: Vacuum handling of raw glass sheets.
- Panel Manufacturing: Loading & unloading of MDF, plywood and particle boards.

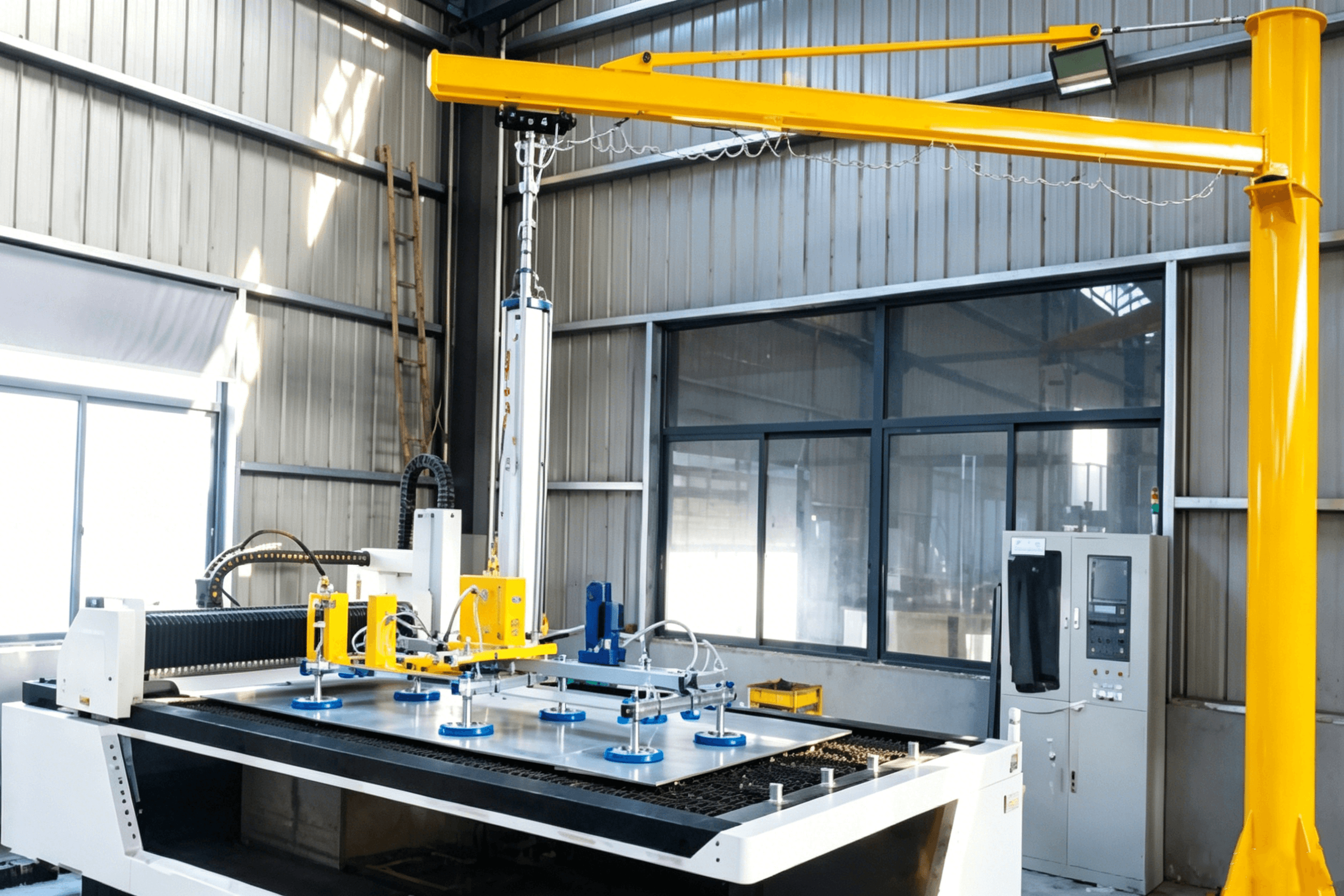

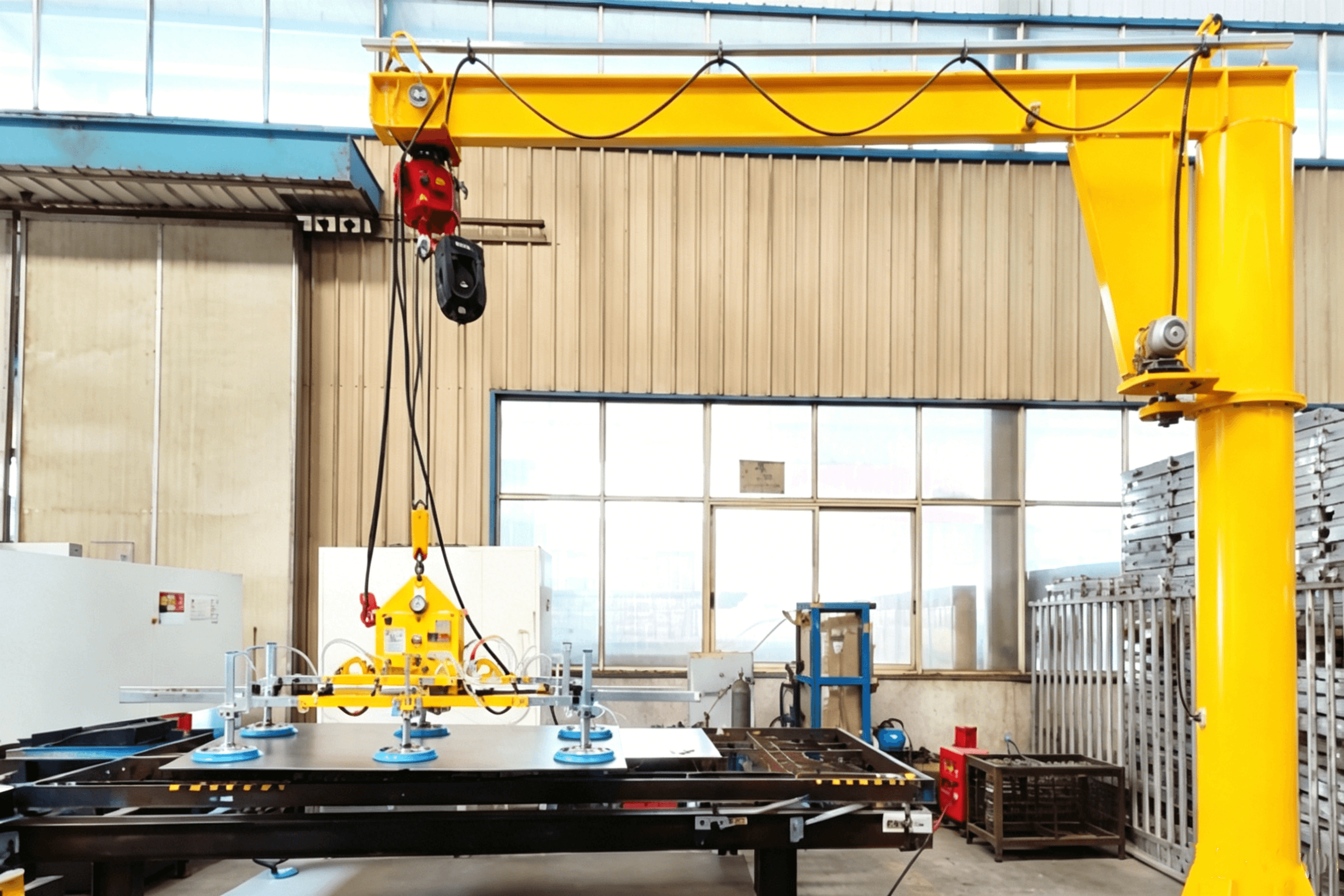

Application: Steel Plate Handling with Freestanding Jib Crane
The combination of a vacuum sheet lifter and a freestanding jib crane is one of the most widely used solutions for handling steel plates. It provides safe, efficient, and precise lifting while reducing manual labor, improving productivity, and protecting material surfaces.
Parameters
| Model | WLL (kg) | Dimensions L×W×H (mm) | Cup(mm) | Qty | Power Supply | Control | Net Weight (kg) |
| ZH-J500-6S | 500 | 2000×800×720 | Φ230 | 6 | AC208-460V (±10%) | Manual/Remote | 120 |
| ZH-Z500-6S | 500 | 2000×800×720 | Φ230 | 6 | DC12V | Manual/Remote | 120 |
| ZH-Q500-6S | 500 | 2000×800×720 | Φ230 | 6 | Pneumatic | Manual/Remote | 155 |
| ZH-J1000-6S | 1000 | 2000×800×720 | Φ300 | 6 | AC208-460V (±10%) | Manual/Remote | 125 |
| ZH-Z1000-6S | 1000 | 2000×800×720 | Φ300 | 6 | DC12V | Manual/Remote | 125 |
| ZH-J800-8S | 800 | 2800×800×720 | Φ230 | 8 | AC208-460V (±10%) | Manual/Remote | 140 |
| ZH-Z800-8S | 800 | 2800×800×720 | Φ230 | 8 | DC12V | Manual/Remote | 140 |
| ZH-J1500-8S | 1500 | 2800×800×720 | Φ300 | 8 | AC208-460V (±10%) | Manual/Remote | 150 |
| ZH-Z1500-8S | 1500 | 2800×800×720 | Φ300 | 8 | DC12V | Manual/Remote | 150 |
| ZH-J1000-10S | 1000 | (1000+3000+1000)×1000×950 | Φ230 | 10 | AC208-460V (±10%) | Manual/Remote | 250 |
| ZH-Z1000-10S | 1000 | (1000+3000+1000)×1000×950 | Φ230 | 10 | DC12V | Manual/Remote | 250 |
| ZH-J2000-10S | 2000 | (1000+3000+1000)×1000×950 | Φ300 | 10 | AC208-460V (±10%) | Manual/Remote | 260 |
| ZH-Z2000-10S | 2000 | (1000+3000+1000)×1000×950 | Φ300 | 10 | DC12V | Manual/Remote | 260 |
| ZH-J2500-12S | 2500 | (1000+3000+1000)×1000×950 | Φ300 | 12 | AC208-460V (±10%) | Manual/Remote | 280 |
| ZH-Z2500-12S | 2500 | (1000+3000+1000)×1000×950 | Φ300 | 12 | DC12V | Manual/Remote | 280 |
For detailed product information, please refer to the PDF.
