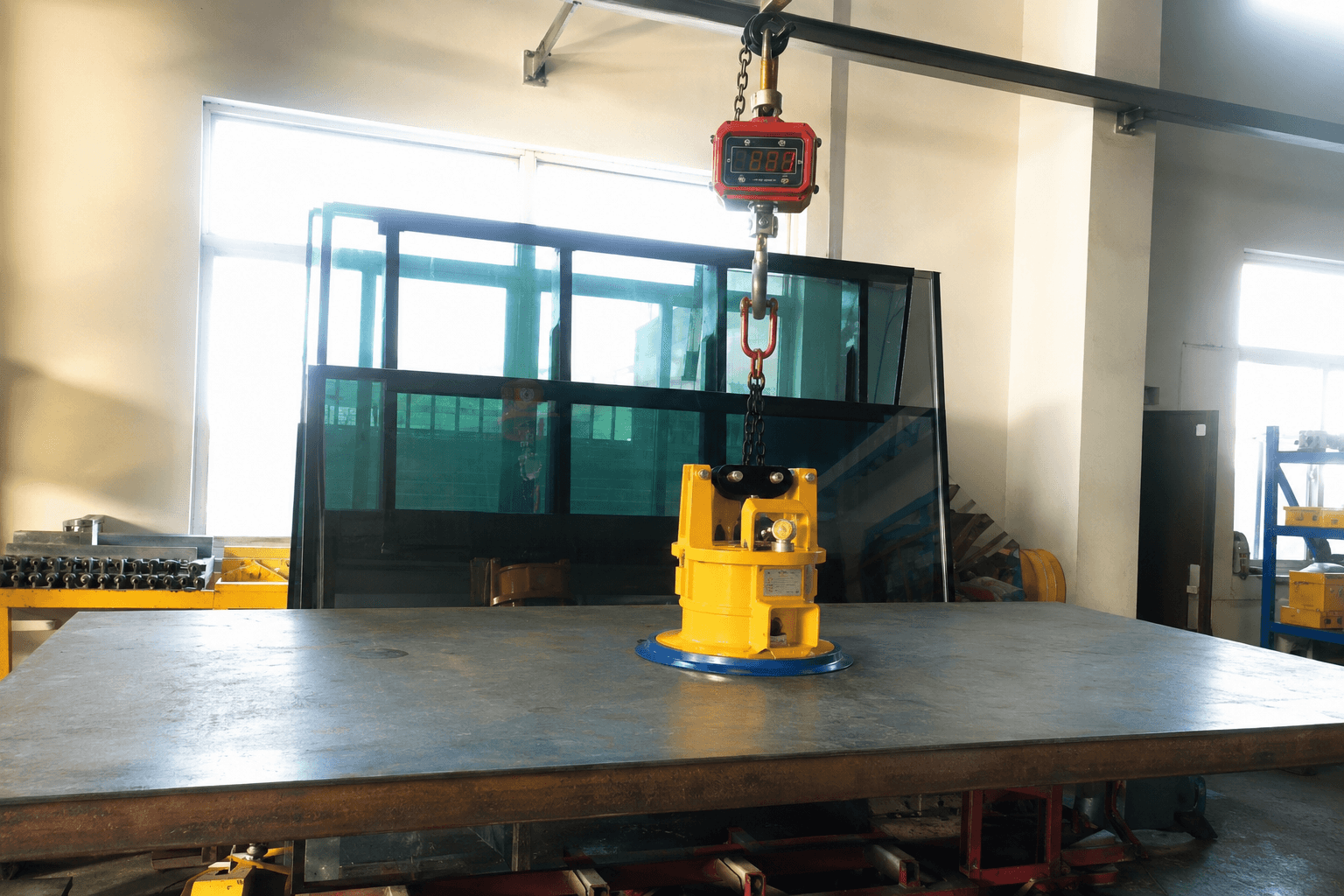

Mono Mechanical Vacuum Lifters Product Introduction

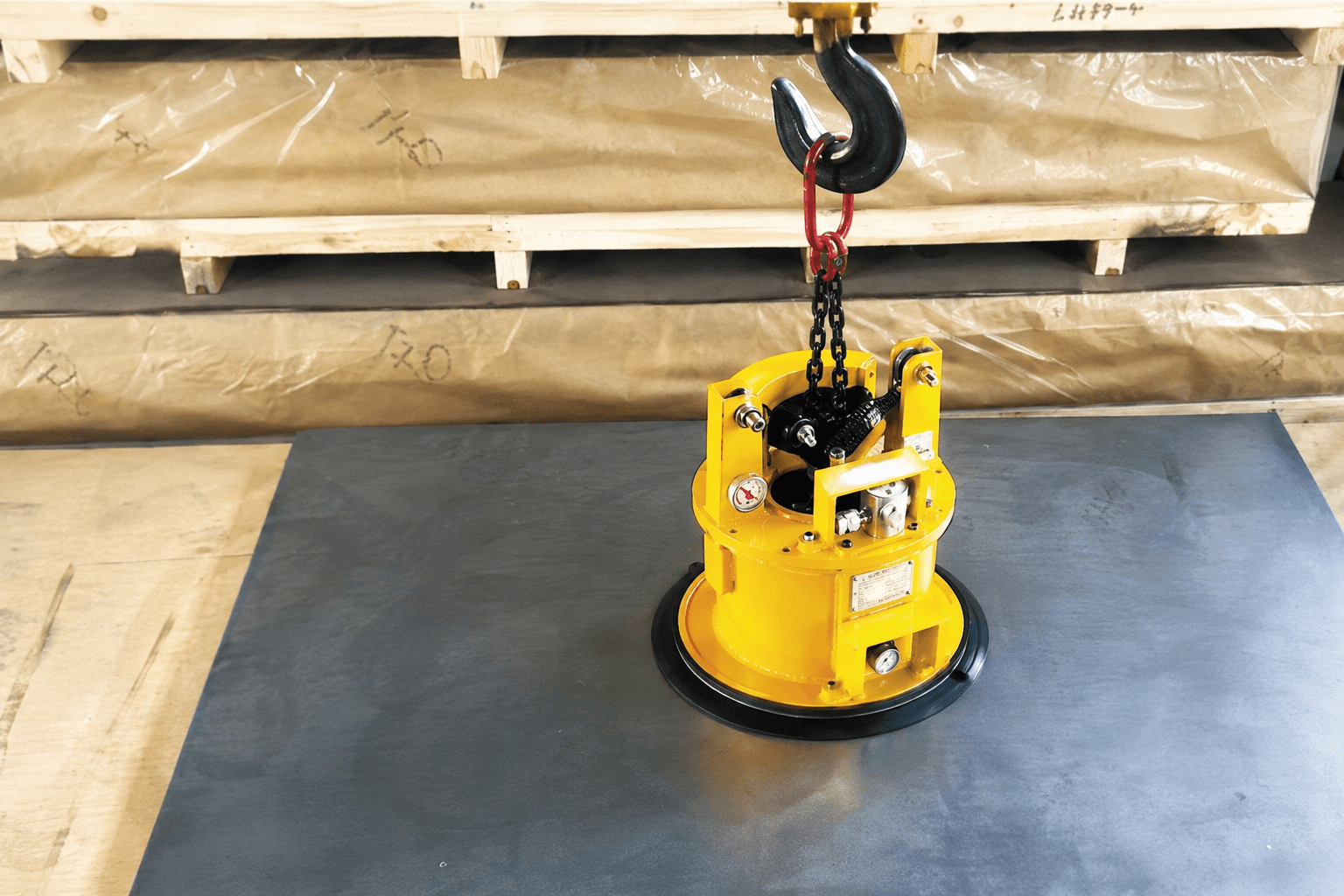

The mono mechanical vacuum lifters are fully self-contained, self-powered lifting devices. Built for sheet metal handling. Mono mechanical vacuum lifters require no installation, no power lines, and no compressed air connections; attach the lifting eye directly onto an overhead crane or hoist hook, and the unit is ready for use virtually anywhere in a plant or at a job site.
Operation is controlled entirely by the raising and lowering action of the hoist: a self-cycling valve and piston assembly creates powerful suction as the lifter is lowered onto the load, and the vacuum is released only when the chain becomes fully slack as the workpiece is set down. Because the vacuum generation and release cycle is driven purely by chain tension, there are no control buttons to press, no external power source to rely on, and no risk of malfunction due to power outages or voltage drops.
This purely mechanical interlock eliminates any possibility of accidental release. The load cannot be disengaged unless it has been completely set down and the chain has returned to a fully slack state, making the Mono mechanical vacuum lifter an exceptionally safe choice for demanding production and job site environments.
Mono Mechanical Vacuum Lifters Advantages
- Requires no external power or air supply; simple to operate.
- Uses 8mm ISO-standard Grade 80 manganese steel chain, offering high strength, high load capacity, and a long service life.
- The sprocket is made of 40Cr alloy steel, which minimizes wear caused by friction between the manganese steel chain and the sprocket, thereby extending the machine’s service life.
- Self-powered and self-cycling.
- A non-rechargeable 9V battery powers the audio alarm system.
- Immediately ready for operation.
- Low maintenance.
Mono Mechanical Vacuum Lifters Technical Parameter
| Type | Maximum Load | External Dimension(mm) | Vacuum Diameter(mm) | Vacuum Number | Power System | Control Mode | Net Weight |
|---|---|---|---|---|---|---|---|
| HP-WDL800-1S | 800KG | Φ450*850 | Φ450 | 1pcs | Non-motorised | Automatic | 90KG |
Mono Mechanical Vacuum Lifters Applications

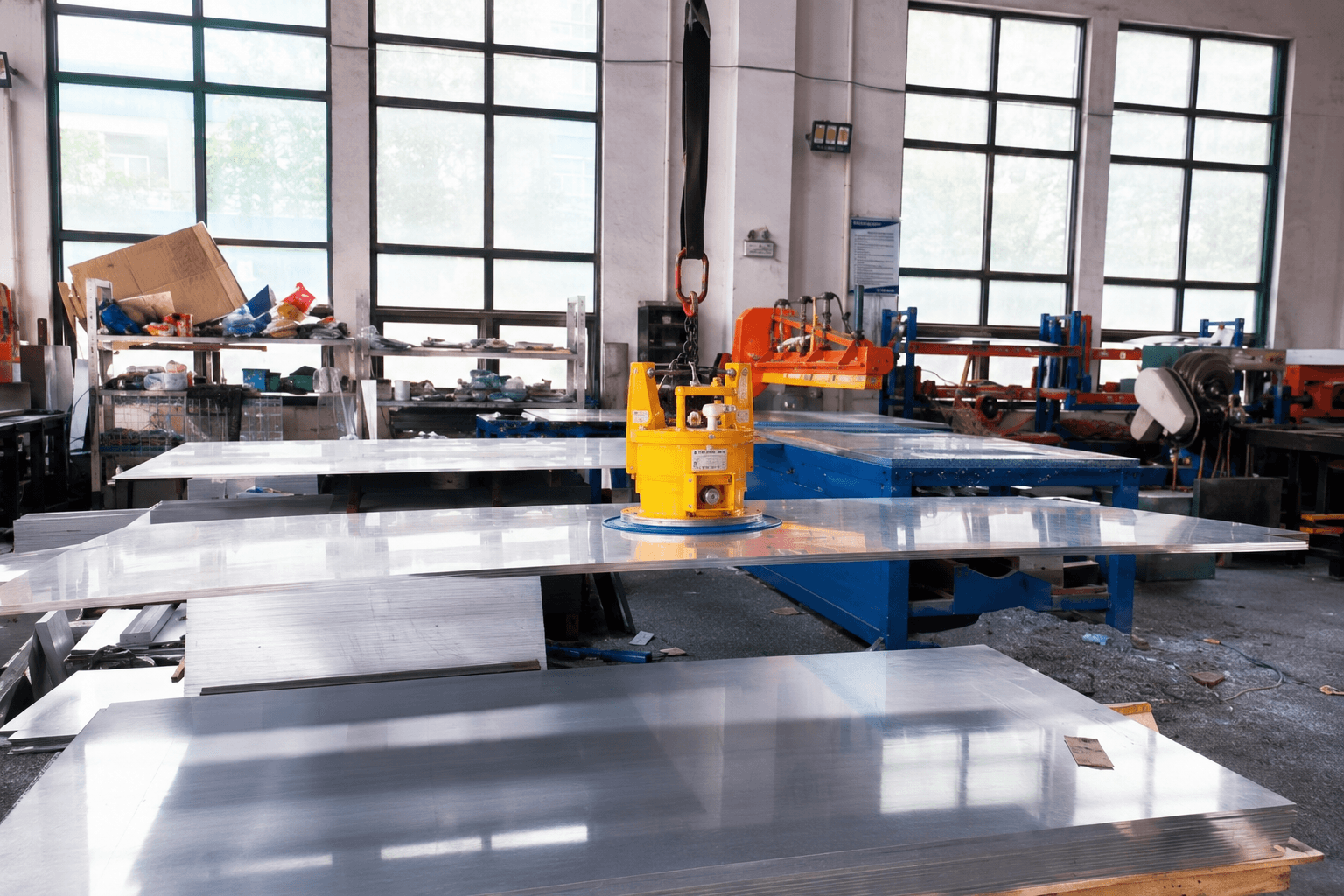

Aluminum Sheet Cutting Machine Loading and Unloading
- Efficient & Precise Loading: Enables single-operator lifting and precise placement of large aluminum sheets onto the cutting table via hoist systems.
- Mark-Free Handling: Flexible suction technology prevents surface scratches or damage caused by conventional mechanical clamps, preserving material quality.
- Fast Unloading & Clearing: Rapidly moves cut parts and residual sheets after processing to ensure seamless cycle transitions.
- Enhanced Safety & Productivity: Eliminates manual heavy lifting, reducing labor intensity and workplace hazards while boosting overall throughput.

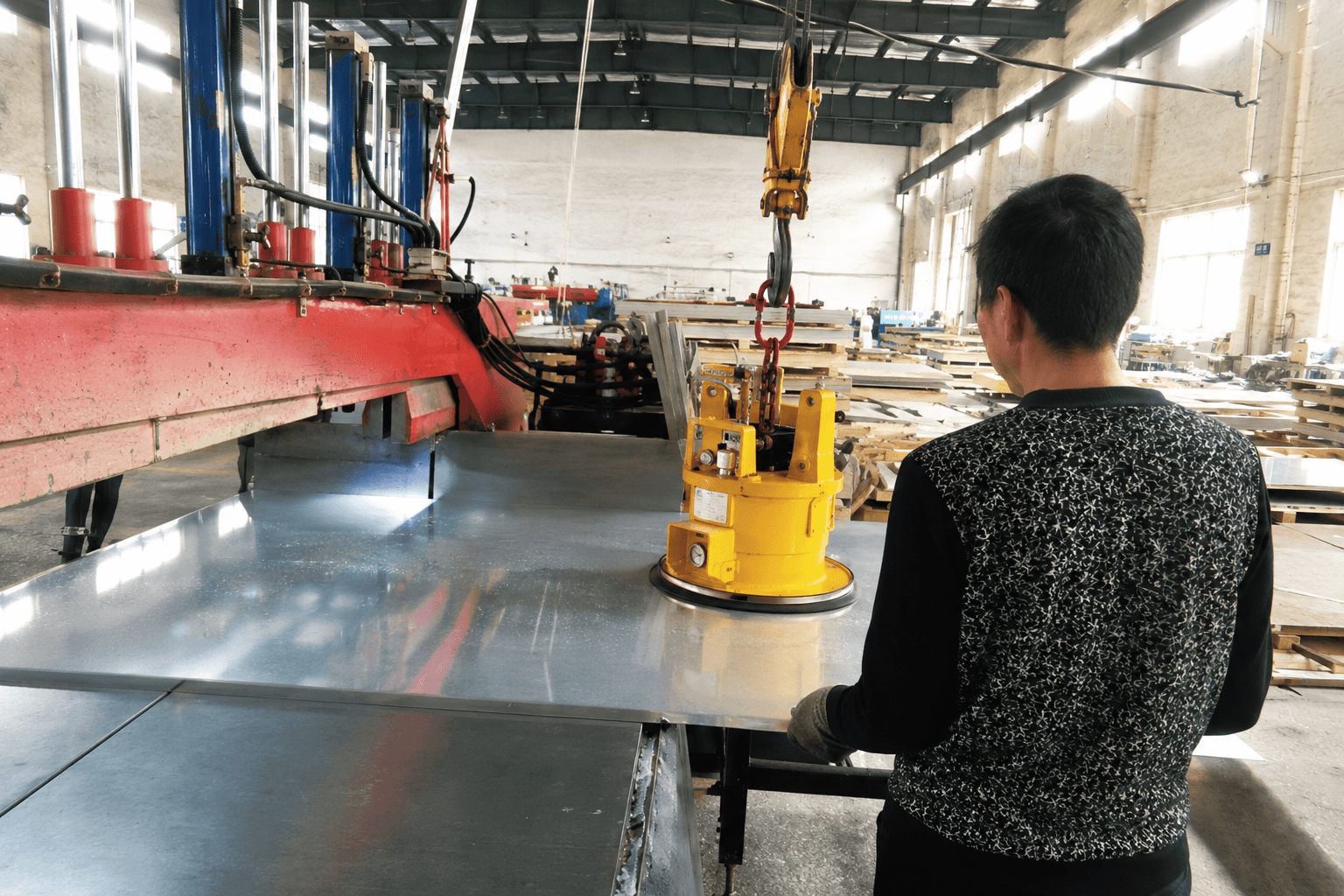

Shearing Machine Loading & Unloading
- Cordless & Hose-Free Feeding: Operates completely without power cords or air hoses, offering unrestricted mobility around the shearing entry zone without entanglement risks.
- Tension-Activated Vacuum: Automatically generates vacuum via hoist tension, ensuring a rock-solid hold as the sheet approaches the shear hold-down cylinders.
- Effortless Manual Positioning: Allows the operator to smoothly guide and align the sheet edge against the machine backgage with minimal manual force.
- Scratch-Free Surface Protection: High-grade rubber seals preserve mirror-finish aluminum plates, preventing surface scuffs during feeding and shear alignment.

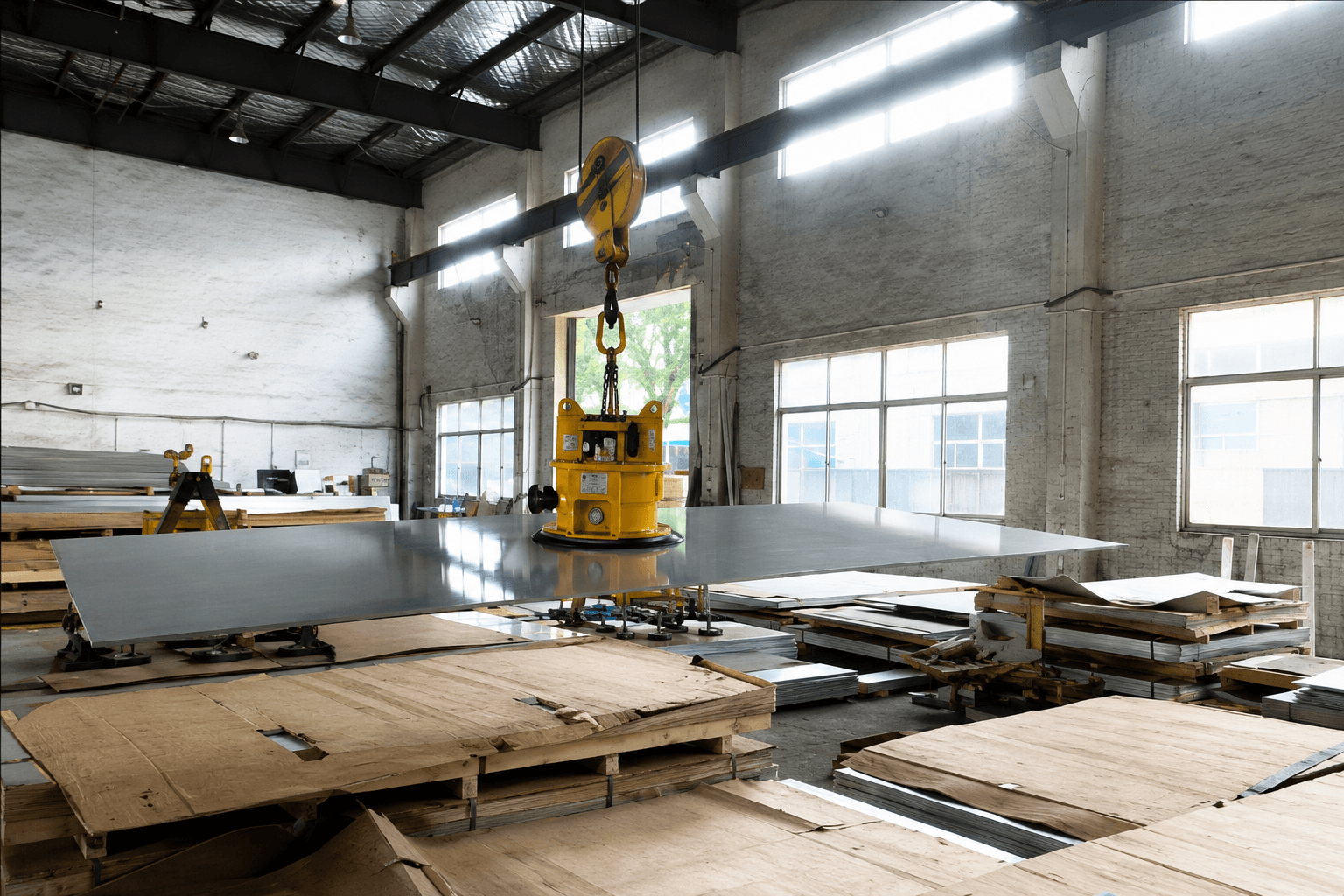

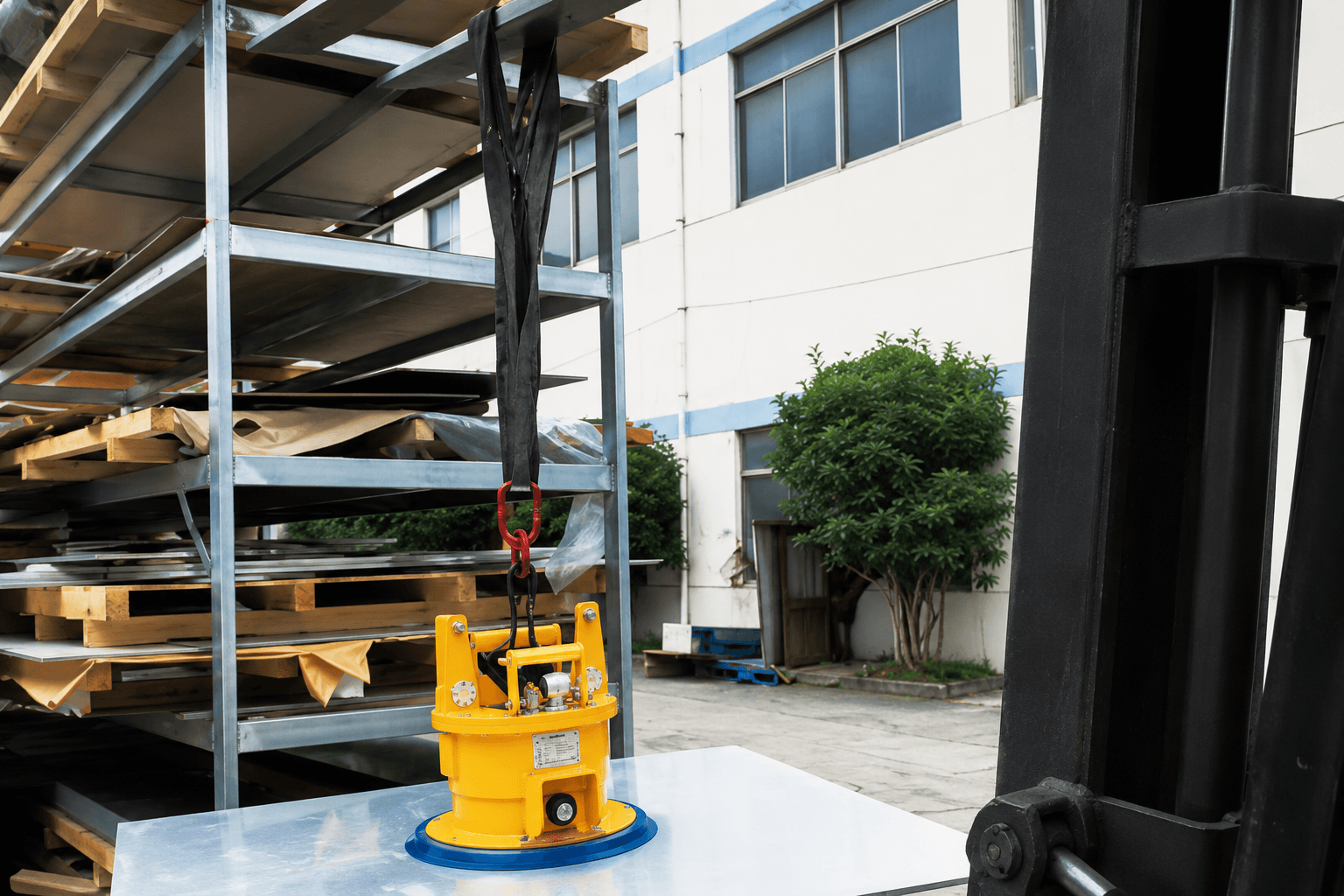

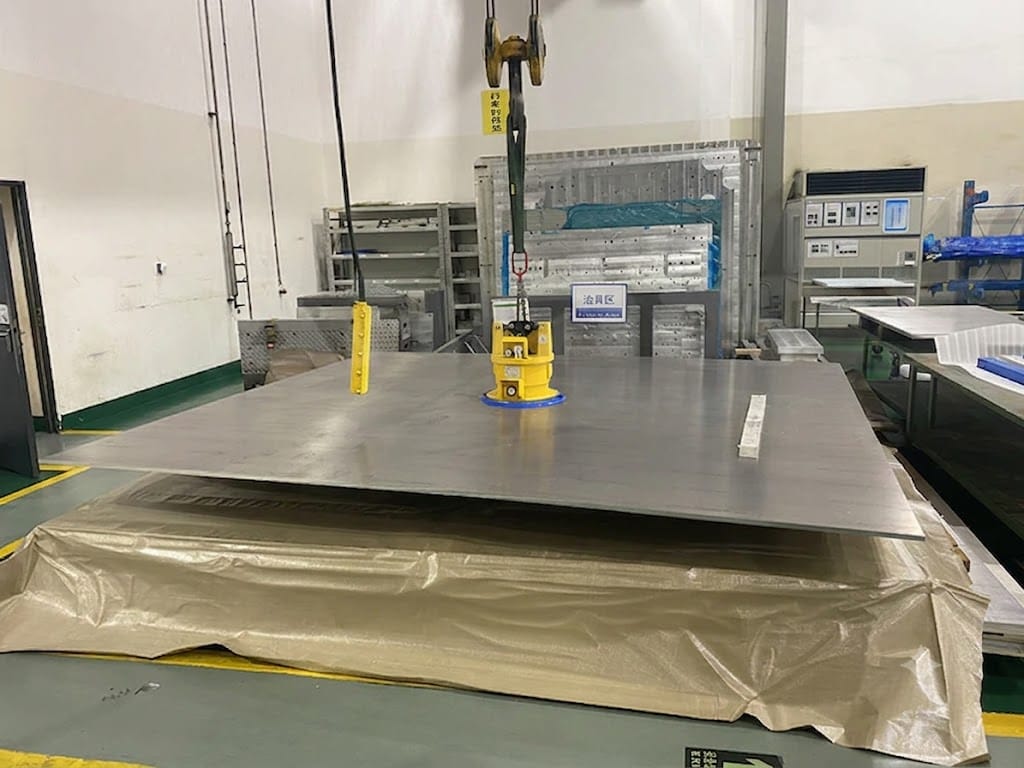

Sheet Storage Transfer and Sorting
- Self-Powered Mechanical Vacuum: Operates without external electricity or air supply—simply hook onto a crane for plug-and-play mobility free of cords and hoses.
- Gravity-Actuated Suction Safety: Generates vacuum automatically via lifting tension; higher payload weight creates stronger vacuum grip for secure transport.
- Mark-Free Surface Protection: Equipped with rubber sealing rings to prevent scratches and mechanical marks on precision tooling plates and polished sheets.
Related Products
Depending on the sheet dimensions and weight you are handling, we also offer non-powered mechanical vacuum lifters in 2-pad, 4-pad, and 6-pad configurations, providing stable, balanced lift across a wider range of plate sizes and load distributions.

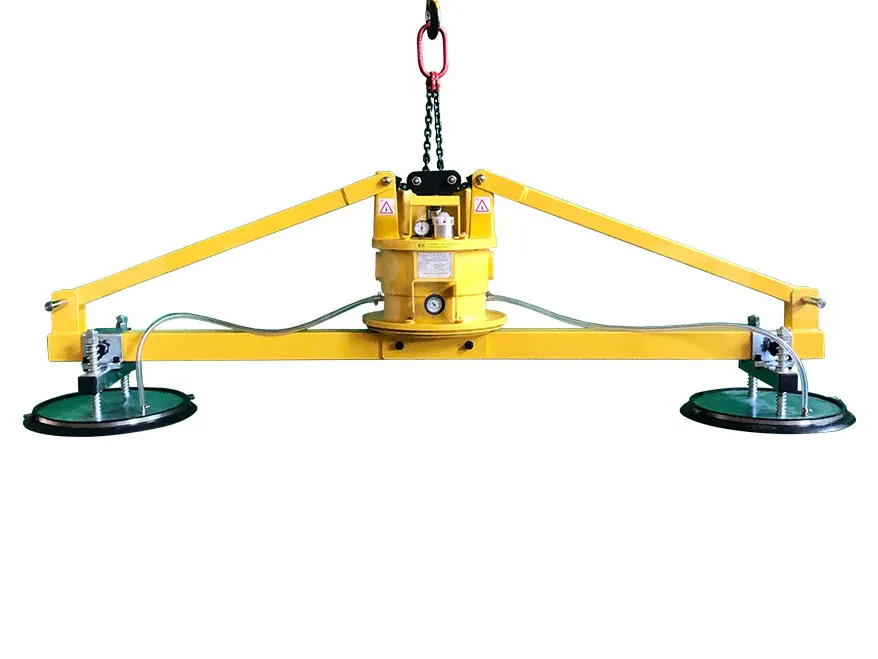

Mechanical Vacuum Lifters with 2 Pad

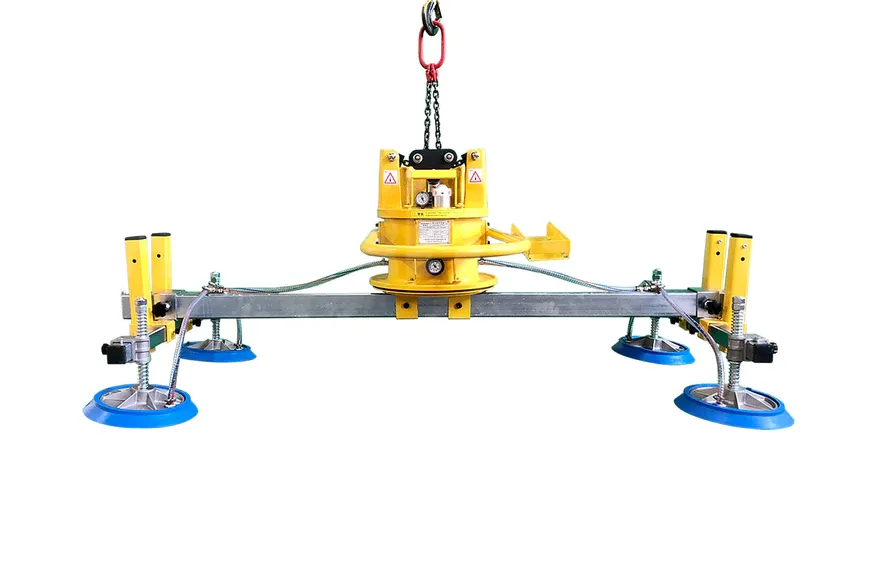

Mechanical Vacuum Lifters with 4 Pad

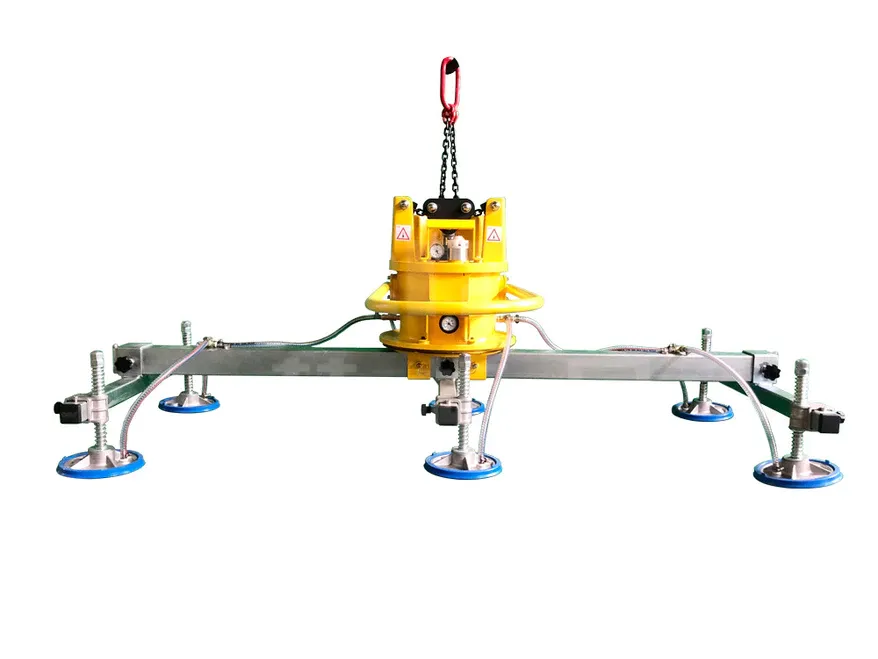

Mechanical Vacuum Lifters with 6 Pad
