Vacuum Tube Lifters: A Capable Material Handling Solution

Vacuum Tube Lifters Product Introduction

Vacuum tube lifters are labor-saving devices designed for rapid material handling by utilizing the principles of vacuum suction and lifting. These units can be equipped with various types of suction cups to handle materials such as steel plates, wooden boards, and glass sheets, as well as bagged goods and drums. With a maximum load capacity of 300 kg, they are suitable for applications including laser cutting machine loading, timber processing, and warehouse material handling.

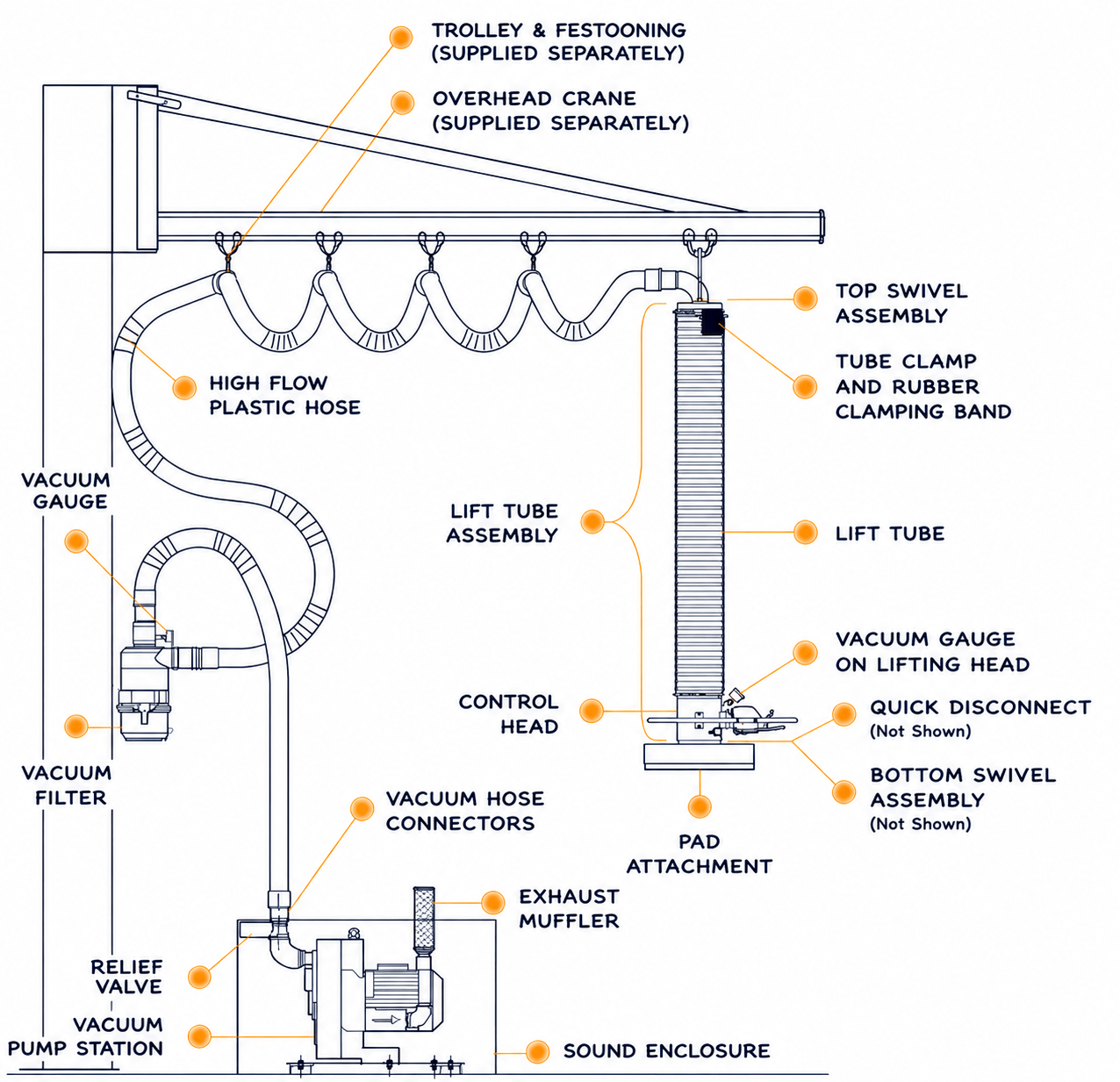

The core component of the vacuum tube lifter is a lifting tube—specifically, a high-strength, airtight, and compressible hose reinforced with steel wire. This tube is connected to a suction cup and powered by a high-flow vacuum source, such as a blower or vacuum pump. When the suction cup makes contact with the workpiece, the vacuum source evacuates air from the system, creating negative pressure that causes the lifting tube to contract vertically, thereby lifting the workpiece. By regulating the airflow via the control handle, the operator can adjust the degree of tube contraction to achieve precise lifting and lowering to various heights.

Vacuum Tube Lifters Advantages

• High Load Capacity: Supports a maximum load of 300 kg; suitable for assembly line palletizing, feeding bagged materials, and handling heavy objects.
• Efficient Operation: Handling speeds reach 1 m/s; the continuous-duty vacuum pump enables long-term, uninterrupted operation, effectively boosting productivity.
• Easy Control: A single valve handle controls gripping, lifting, lowering, and releasing, allowing for one-handed operation; the “float” function ensures flexible and precise workpiece positioning.
• Versatile Application: Compatible with various suction cups to handle wood, glass, stone, metal, cardboard, plastic, and bagged materials; capable of handling porous, rough, or irregular surfaces such as textured stone and patterned steel plates.
• Rapid Changeover: Suction cups can be quickly swapped to accommodate workpieces of different materials, shapes, and sizes, meeting the needs of high-mix production.
• Damage-Free Handling: The vacuum gripping process is safe and gentle, effectively minimizing scratches, deformation, and surface marks on workpieces.
• Safe and Reliable: Features an integrated vacuum gauge for real-time monitoring of gripping status; equipped with automatic clamping and check valves to reduce the risk of workpiece drops due to unexpected air supply loss.
• Food-Grade Design: The control unit is constructed from SS304 stainless steel—corrosion-resistant and easy to clean—meeting hygiene standards for the food industry.
• Labor-Saving & Ergonomic: Reduces manual lifting, bending, and repetitive handling; significantly lowers physical strain and improves workstation ergonomics.
• Flexible Customization: Suction cups, control methods, and the entire handling system can be customized based on workpiece characteristics, the operating environment, and production workflows.
• Quality Assurance: The company holds ISO 9001 quality management certification, and products are CE certified, ensuring superior quality and safety.

Vacuum Tube Lifters Technical Parameter

Versatile Applications of Vacuum Tube Lifters

In combination with our tube vacuum lifters, we also offer a suitable ceiling mounted workstation bridge crane with planning, assembly, and initial acceptance.

Adapted to your production process and the spatial conditions, we create a jib crane for you with our crane construction kit made of aluminum profiles or offer you various slewing crane systems.

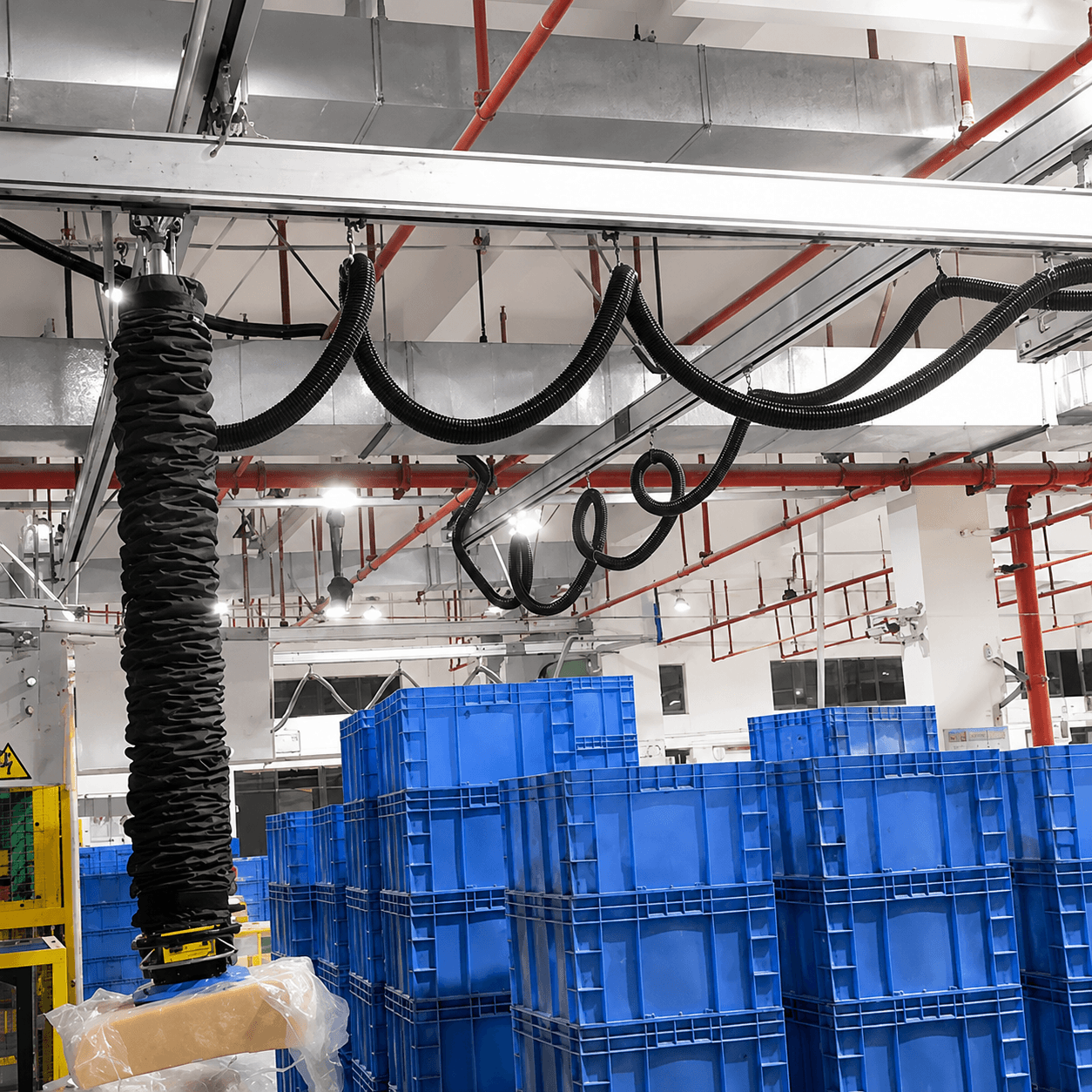

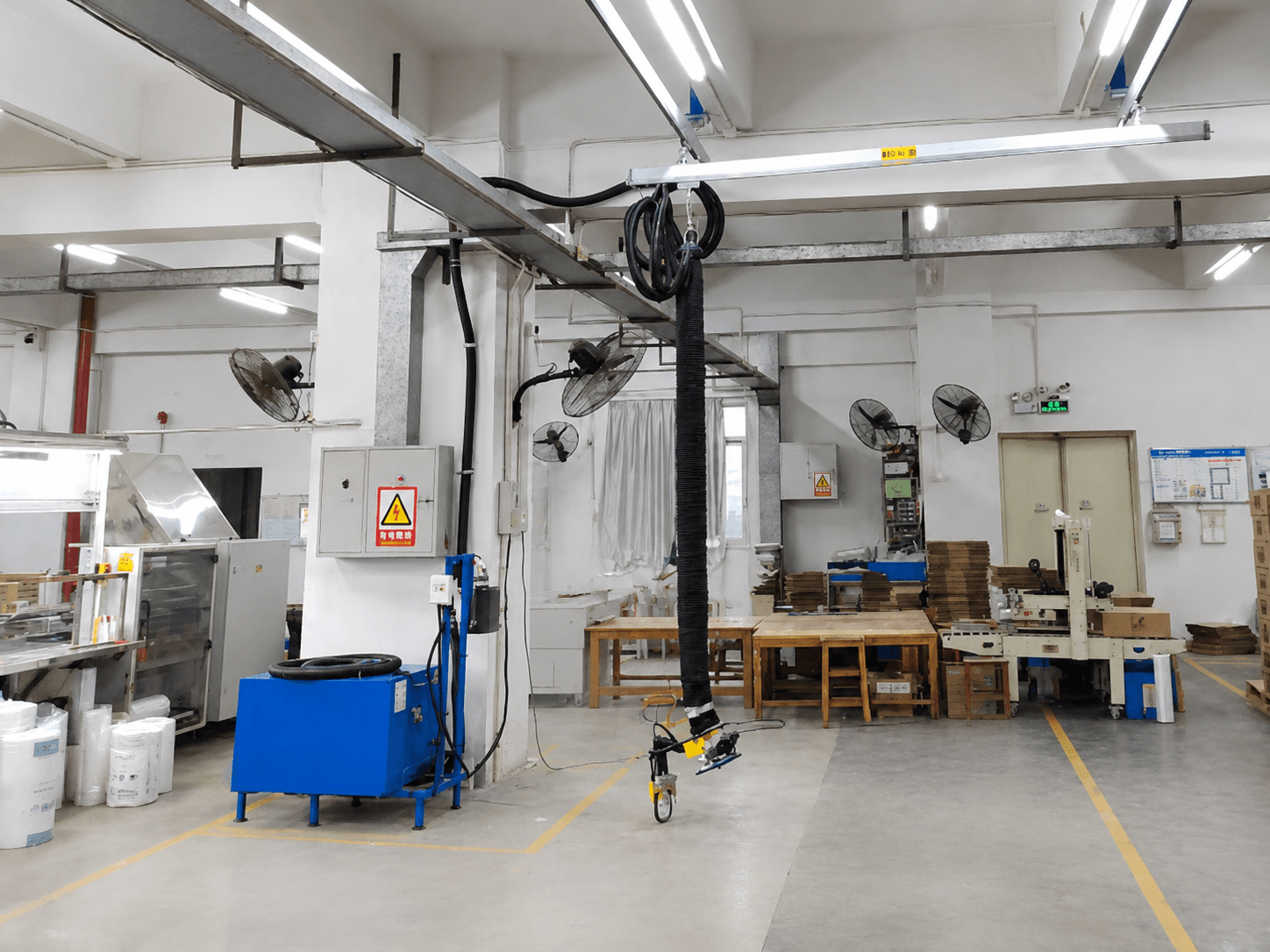

Vacuum Tube Lifters Application for Workstation Overhead Crane

• Workshop fit. Packaging and printing shops, paper mills, and light-industry production lines.Roll-based loads.
• Plastic film rolls, paper rolls, non-woven fabric rolls, and similar.
• Cartons and sheet stock. Corrugated boxes, paperboard, and flat board materials.

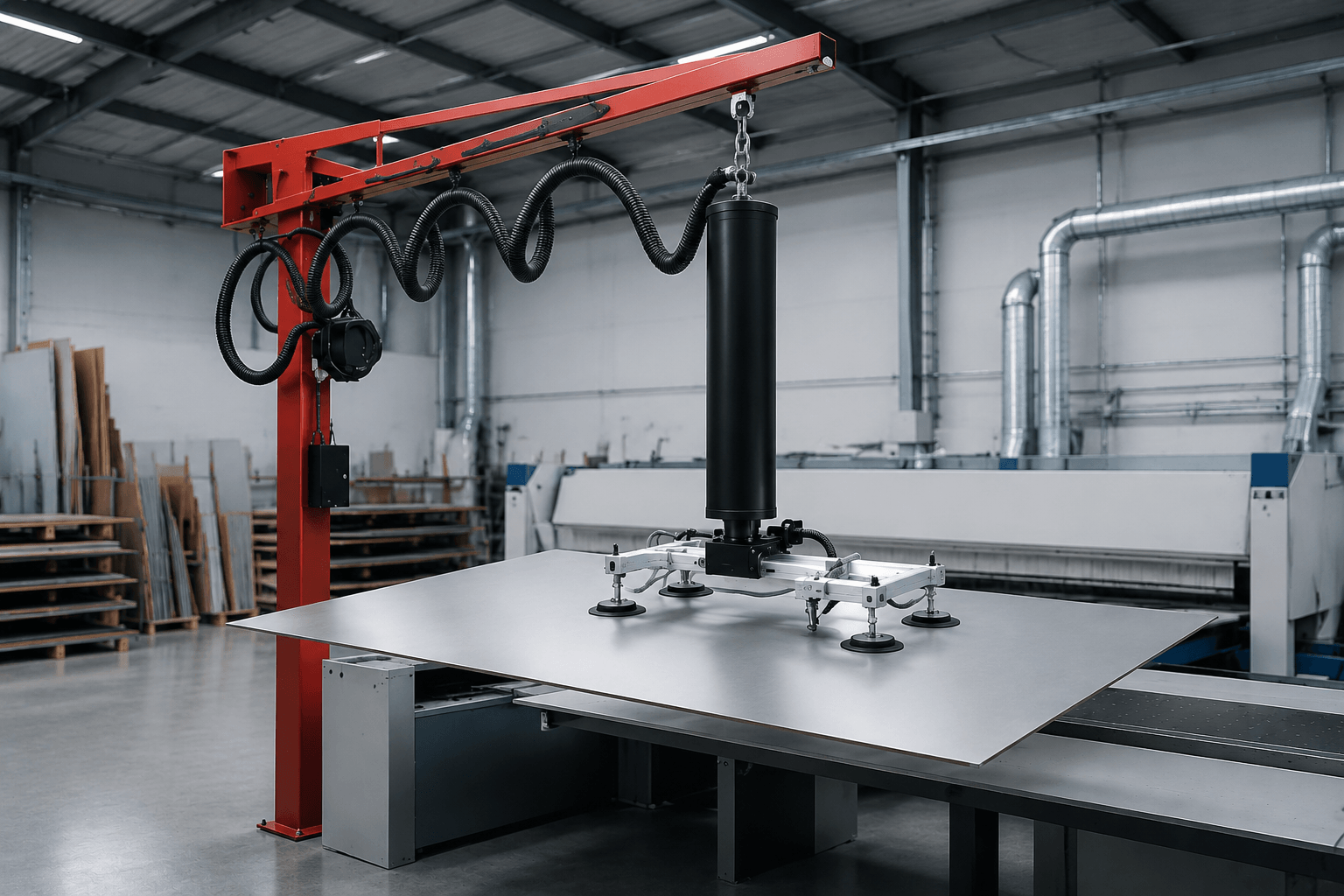

Vacuum Tube Lifters Application for Free Standing Jib Cranes

• Workshop fit. Metal fabrication shops, sheet metal workshops, and plate processing facilities.
• Loads handled. Large-format metal sheets including steel, aluminum, and stainless steel plates.

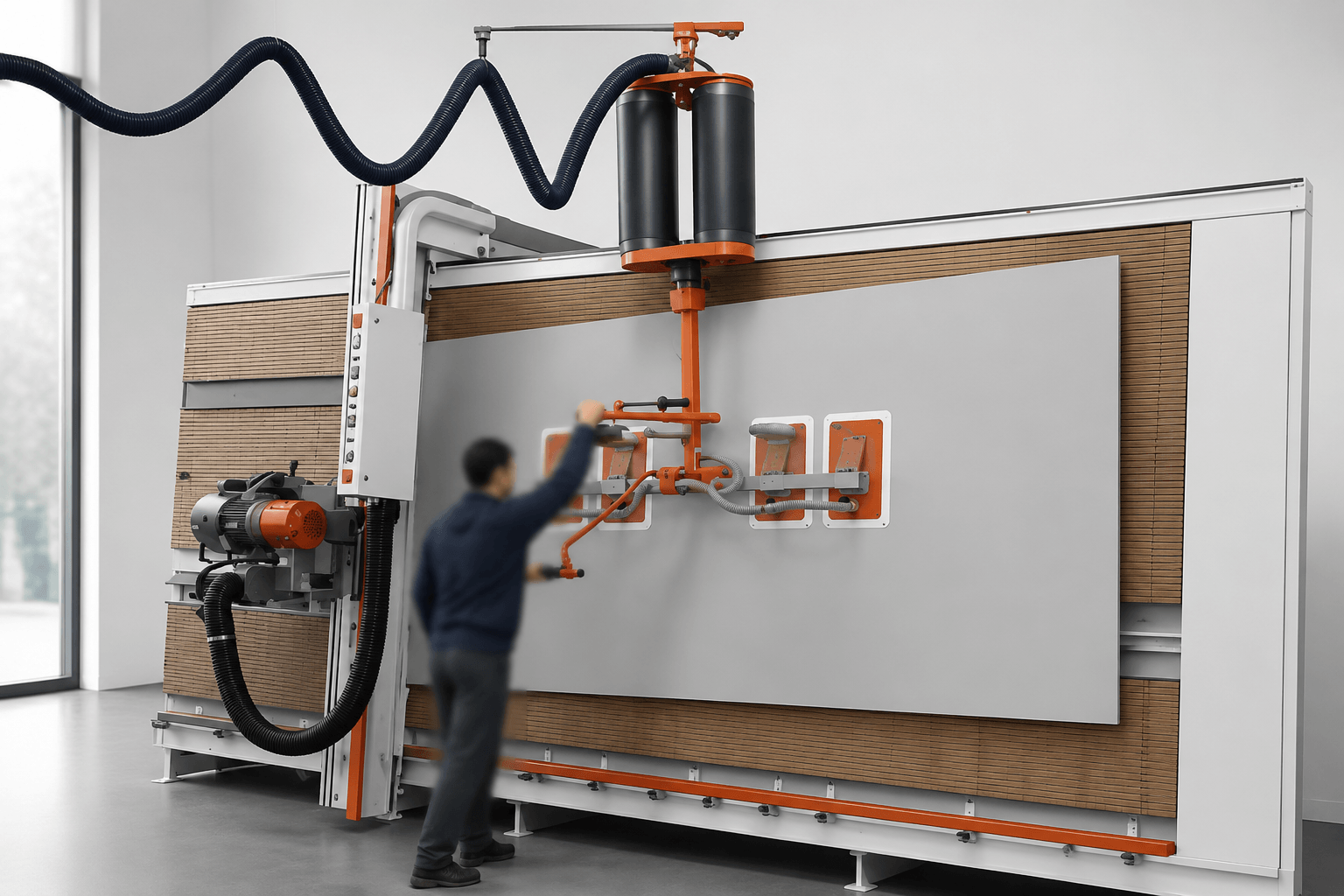

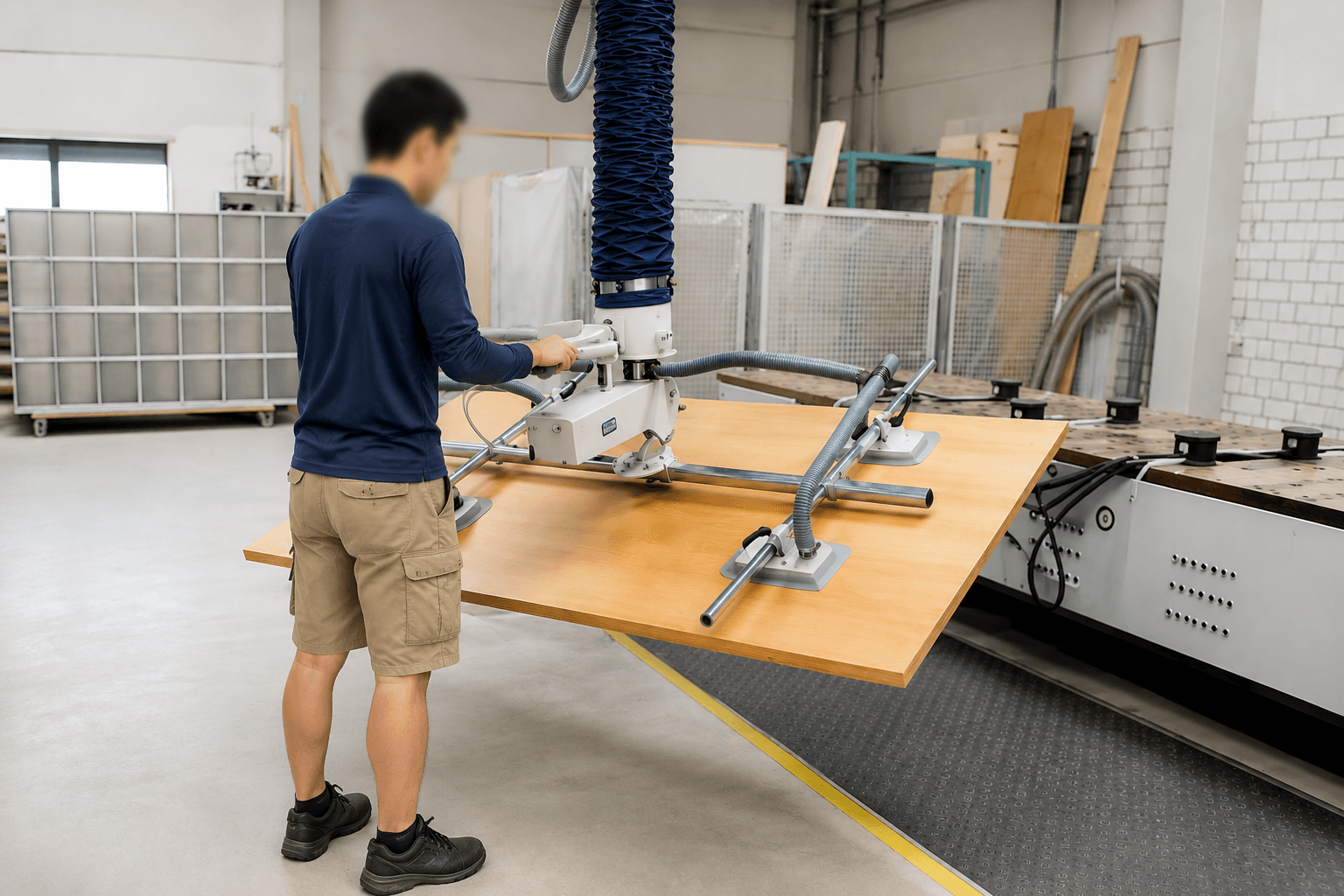

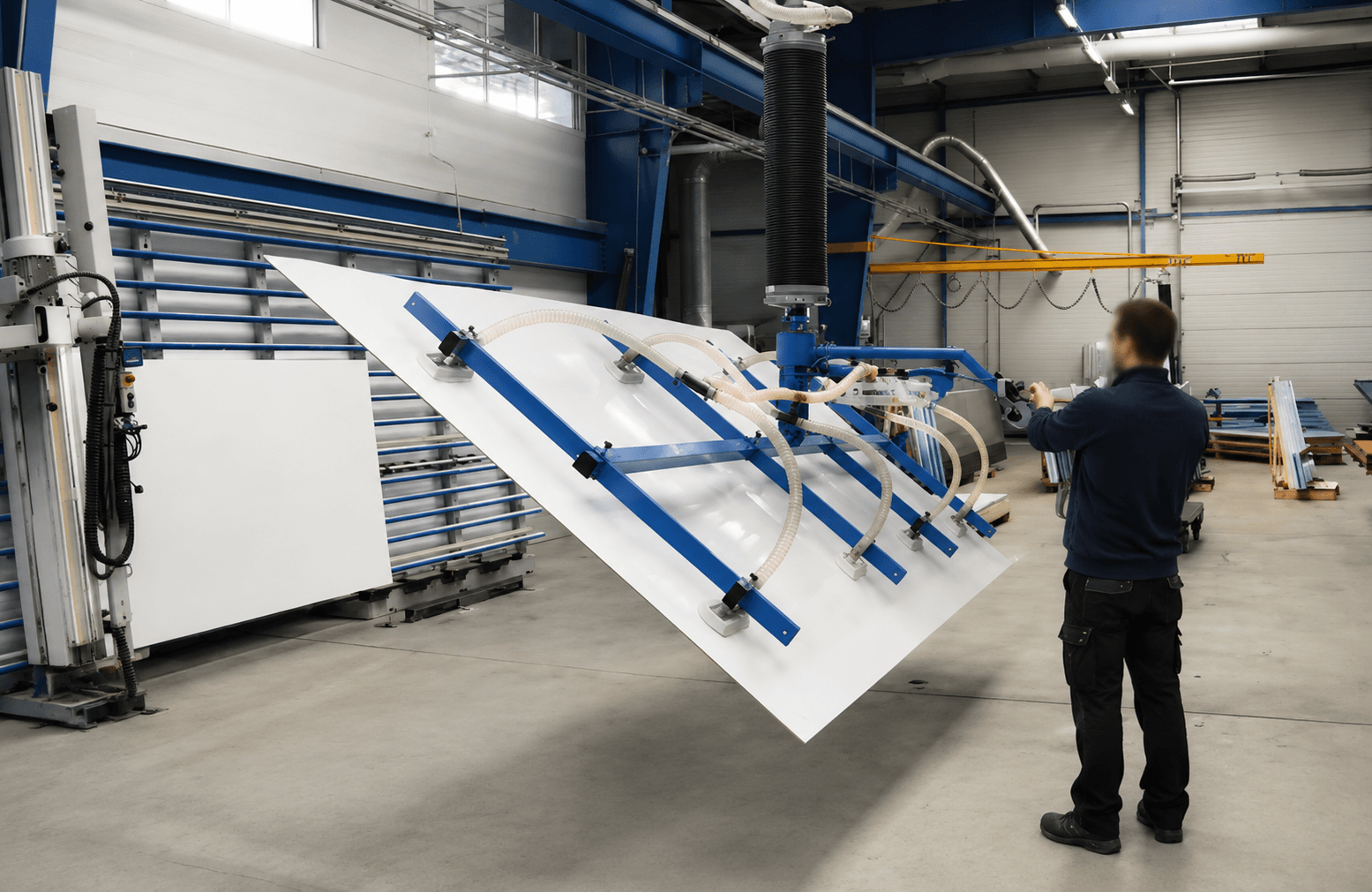

Vacuum Tube Lifters Application for Workstation Overhead Crane

• Workshop fit. Woodworking shops, furniture manufacturing facilities, and panel processing plants.
• Loads handled. Large-format wood panels including solid wood boards, engineered panels, and tabletop sheets.

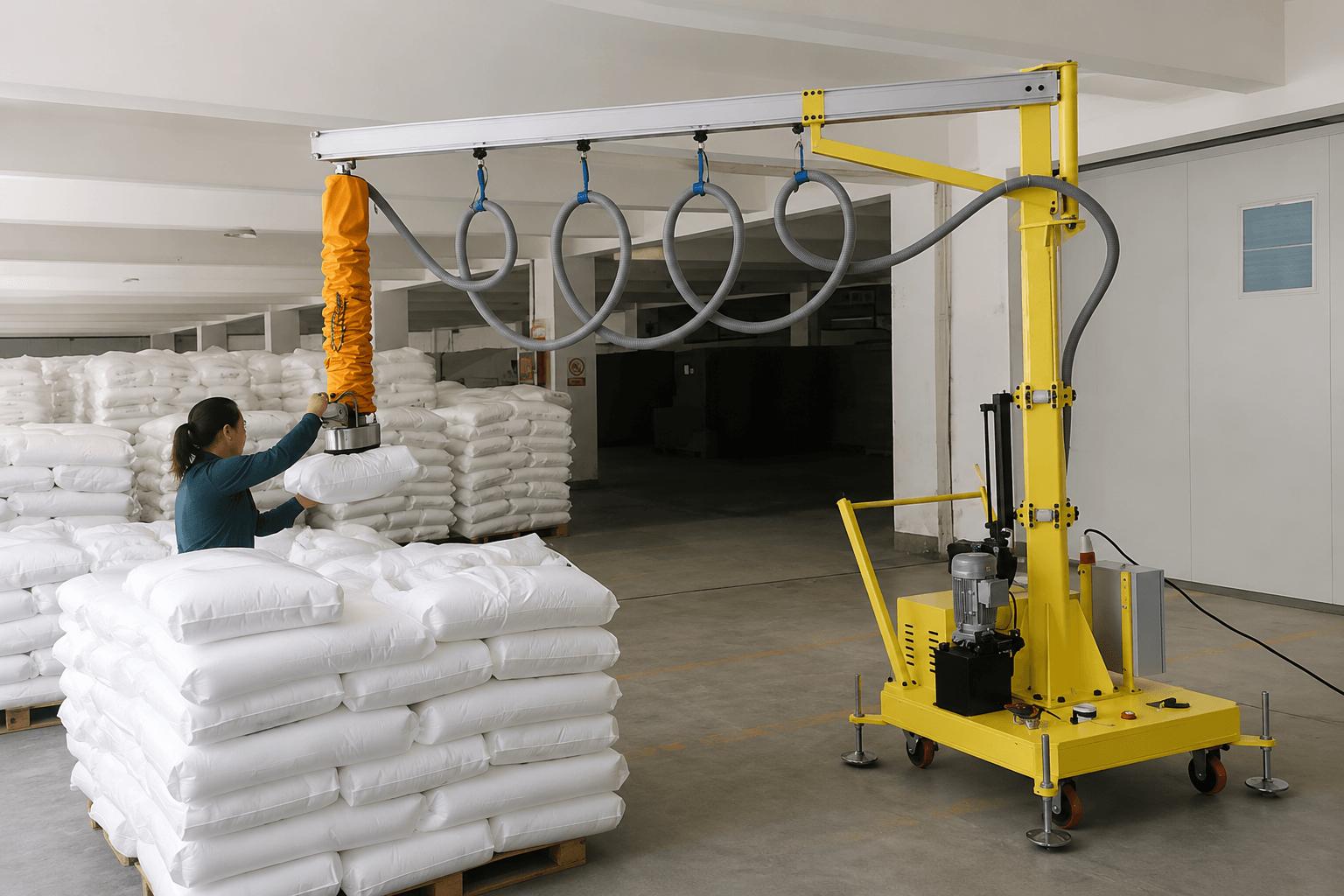

Vacuum Tube Lifters Application for Portable Jib Cranes

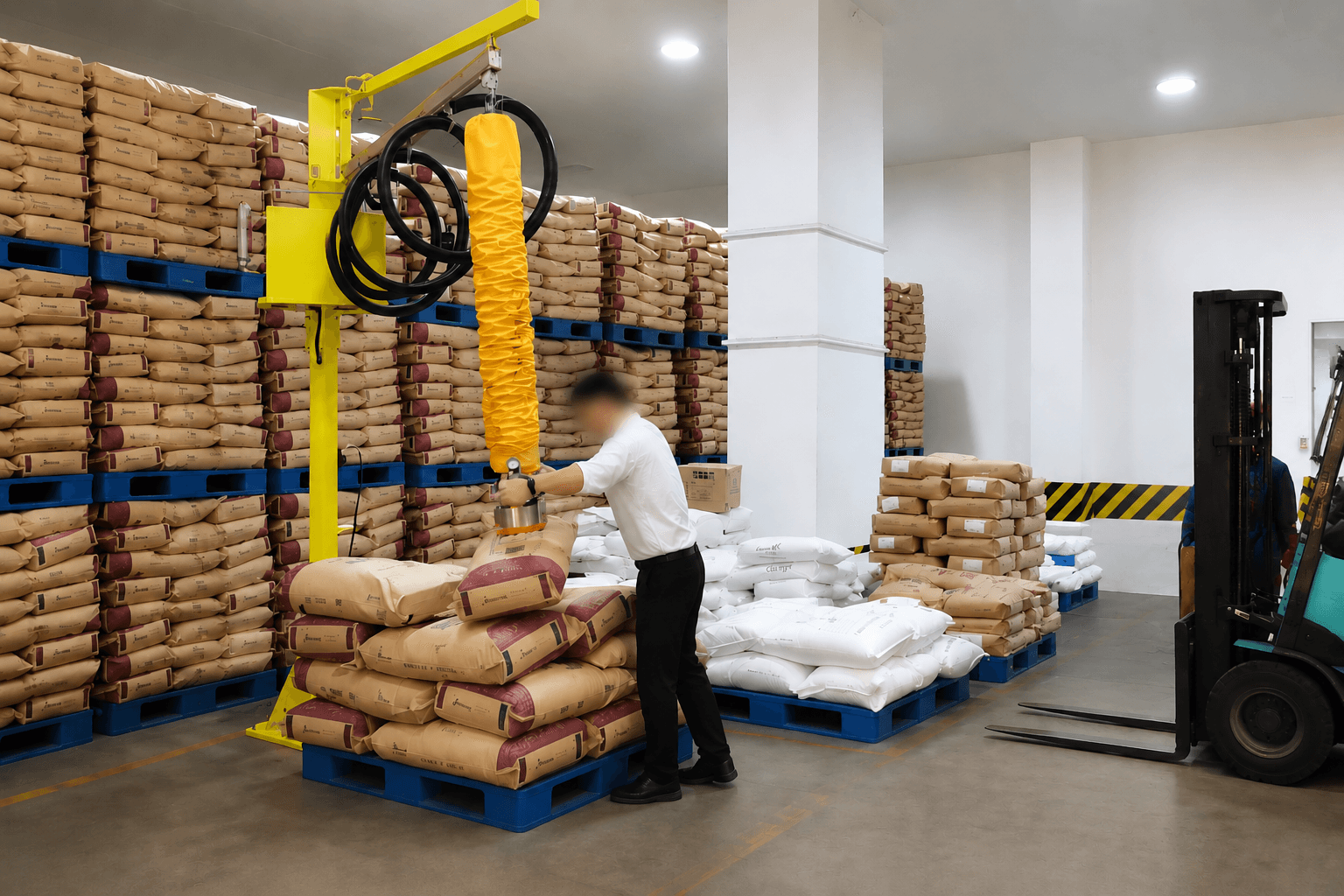

• Workshop fit. Logistics warehouses, chemical raw material workshops, food processing plants, and pharmaceutical storage areas.
• Loads handled. Bagged materials including woven sacks, bulk bags, flour bags, plastic granule bags, and chemical powder bags.

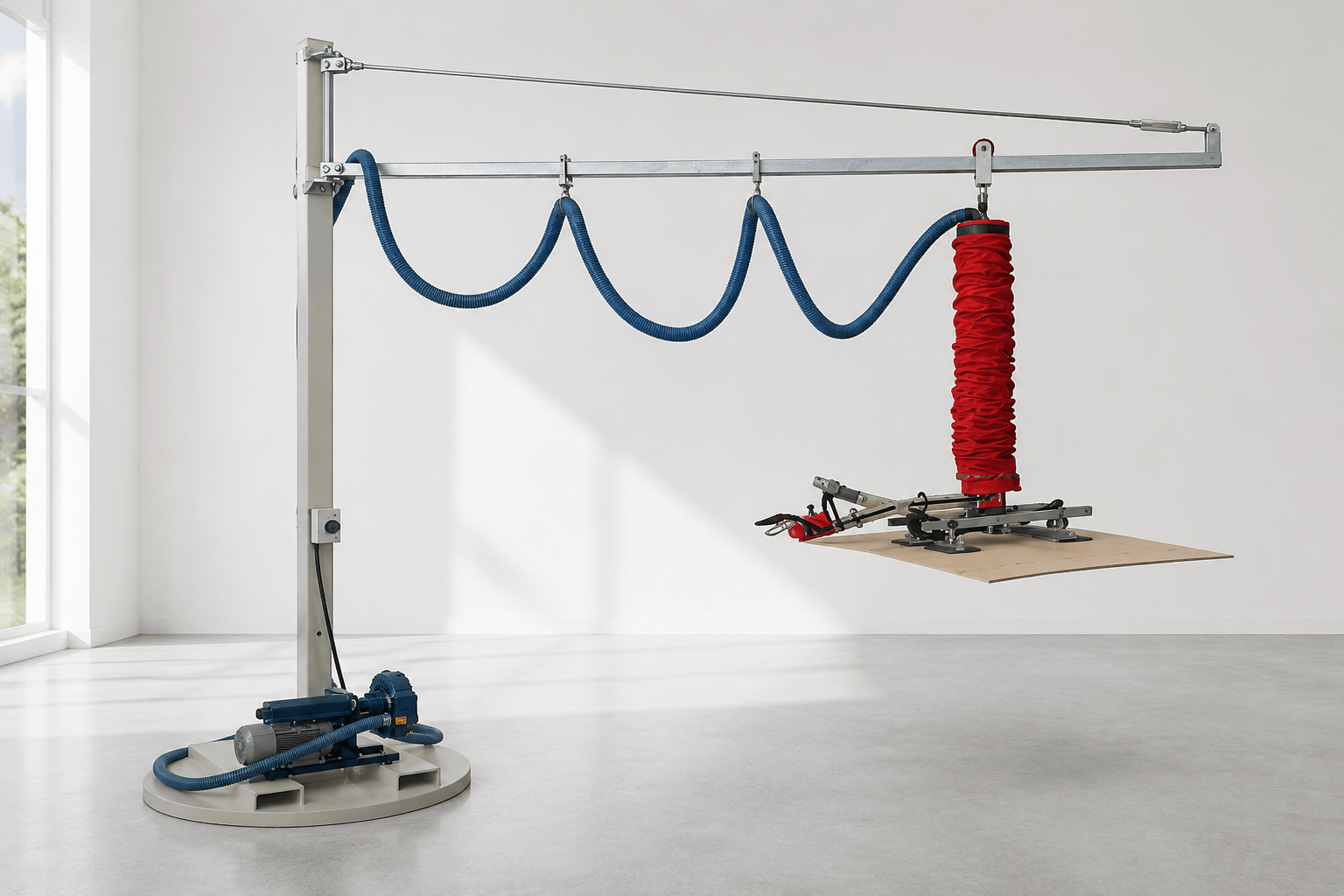

Vacuum Tube Lifter Application for Free Standing Jib Cranes

• Workshop fit. Logistics warehouses, food processing plant warehouses, chemical raw material storage, and pharmaceutical ingredient warehouses.
• Loads handled. Kraft paper bags and plastic sacks containing powder or granular materials, such as flour, starch, milk powder, and chemical raw materials.

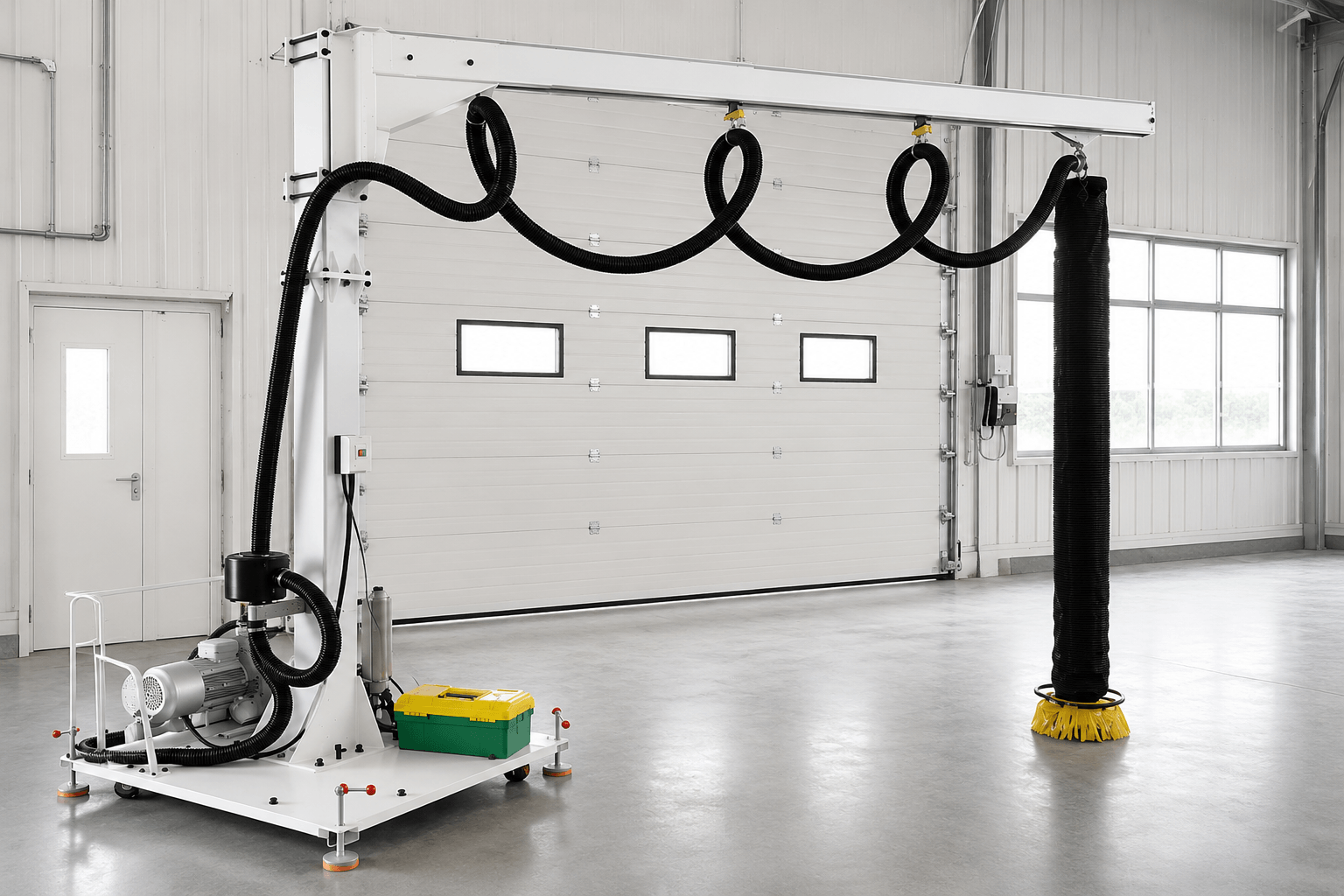

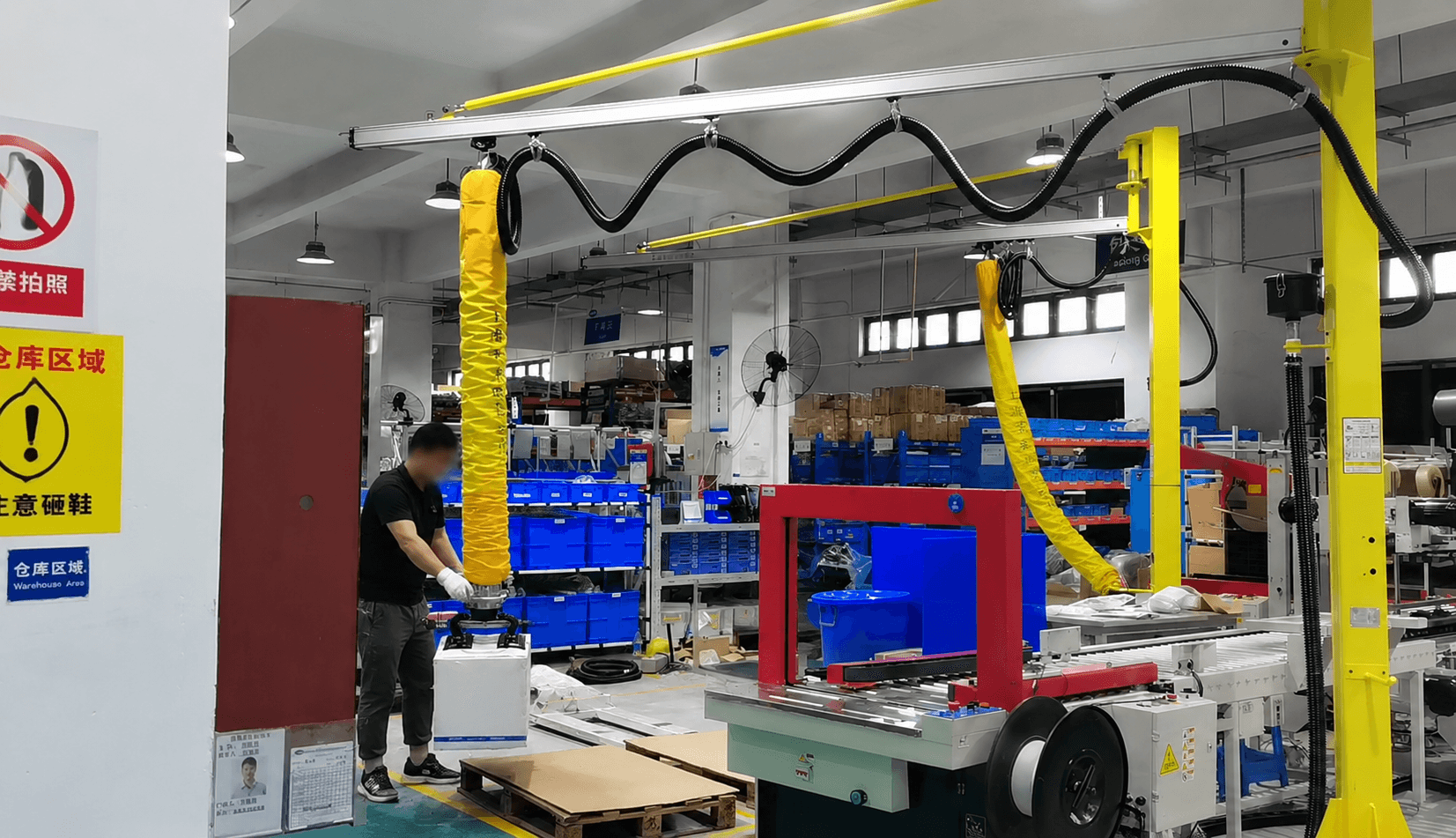

Vacuum Tube Lifters Application for Free Standing Jib Cranes

• Workshop fit. Logistics warehouses, factory packing lines, parts storage areas, and automated packaging lines.
• Loads handled. Cartons, packing cases, and boxed goods including finished-product crates and component packaging.

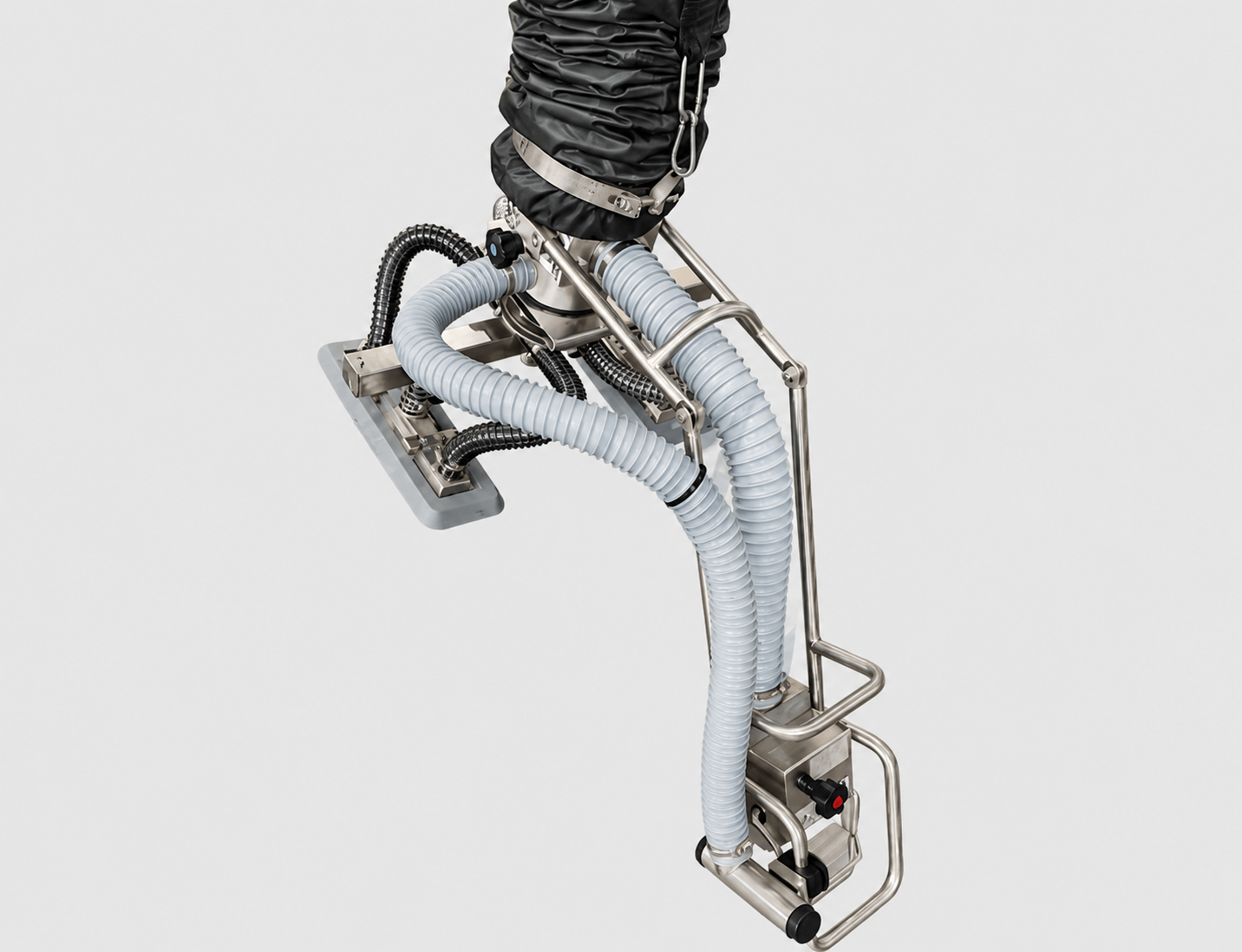

Vacuum Lifters Configuration Options

By switching suction pad types, the same vacuum tube lifting adapts to different materials: rubber pads for steel and aluminum sheets, silicone pads for high-temperature workpieces fresh off the line, and foam pads for rough or textured surfaces. One lifter with interchangeable pads means fewer dedicated machines on the shop floor.

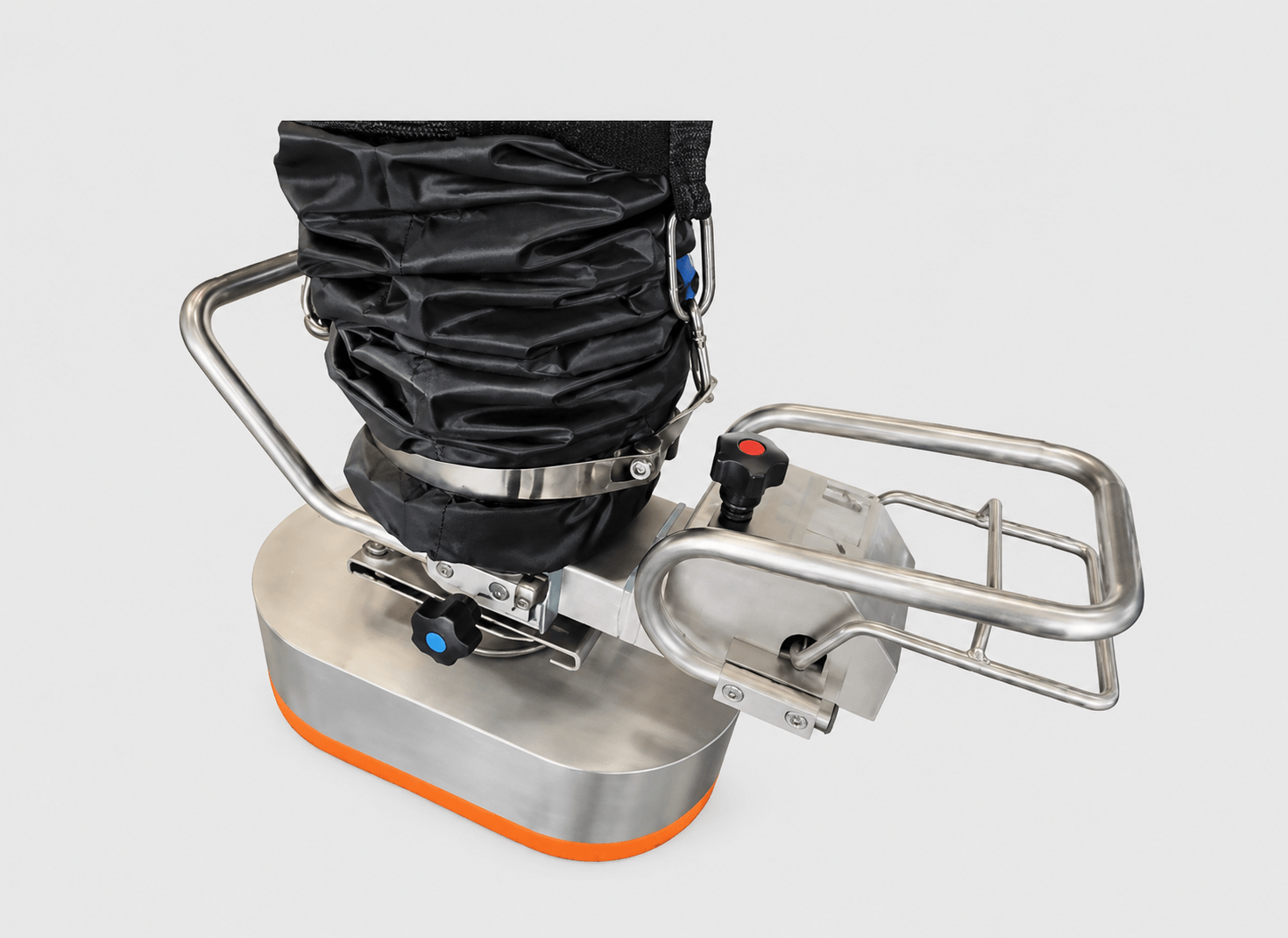

Standard TD Handle with Stainless Steel Foam Suction Pad

Ideal for handling, palletizing, and bag stripping of woven sacks, kraft paper bags, plastic bags,woven film packaging

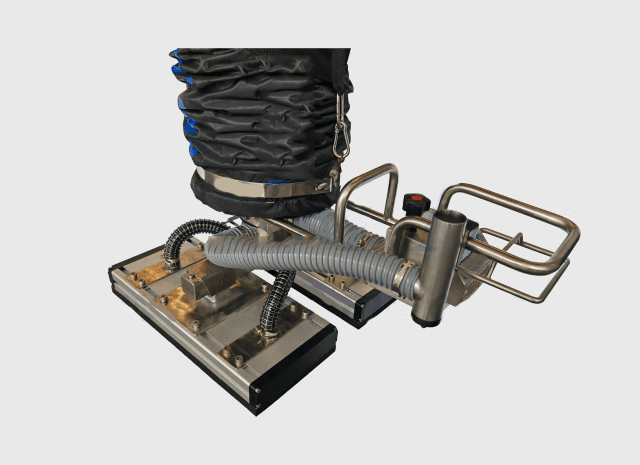

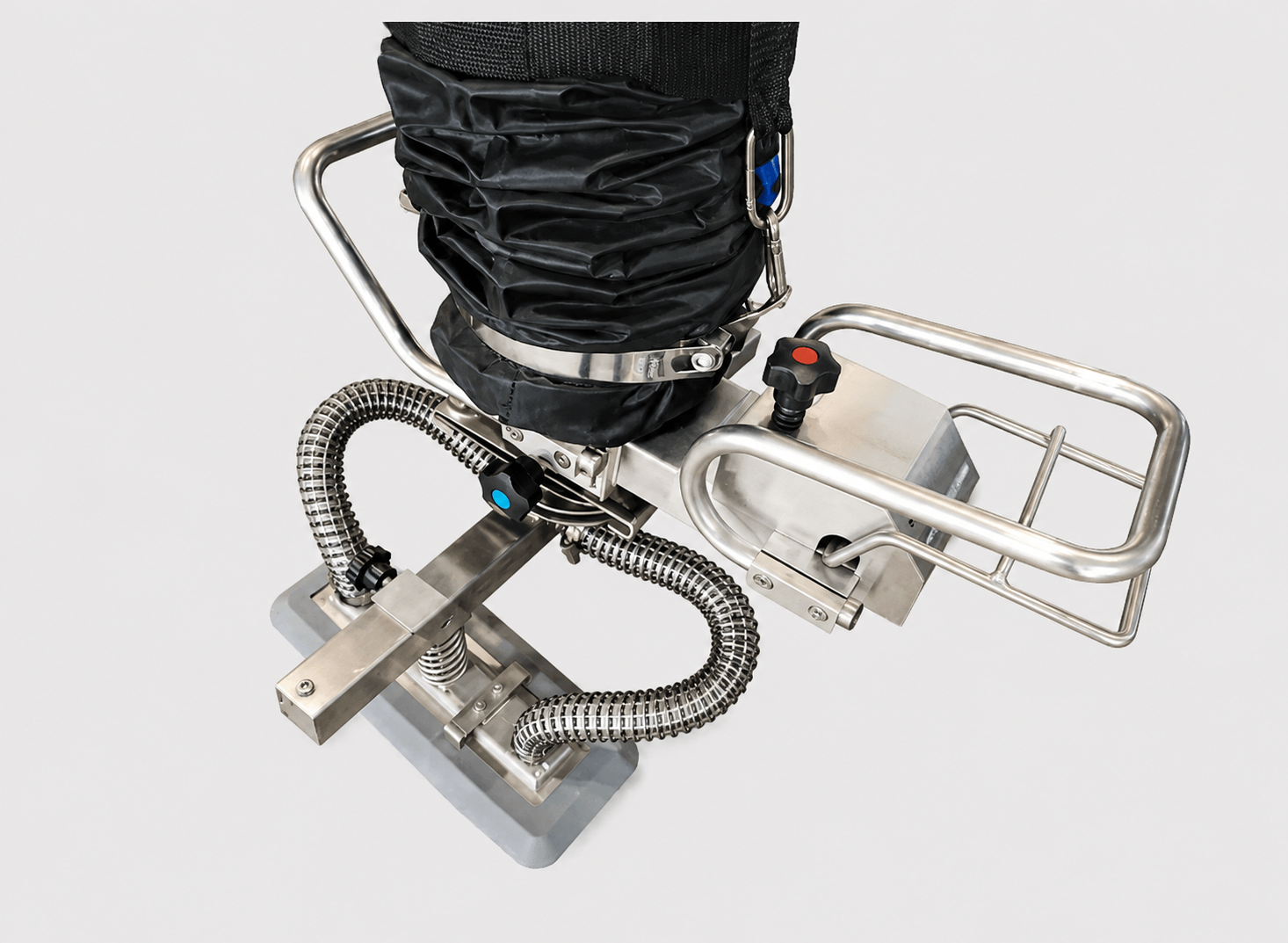

Standard TD Handle with Dual Rubber Suction Pad

Ideal for handling and palletizing cartons, cabinets, panels, and stone slabs. The suction pad spacing is user-adjustable along the main beam.

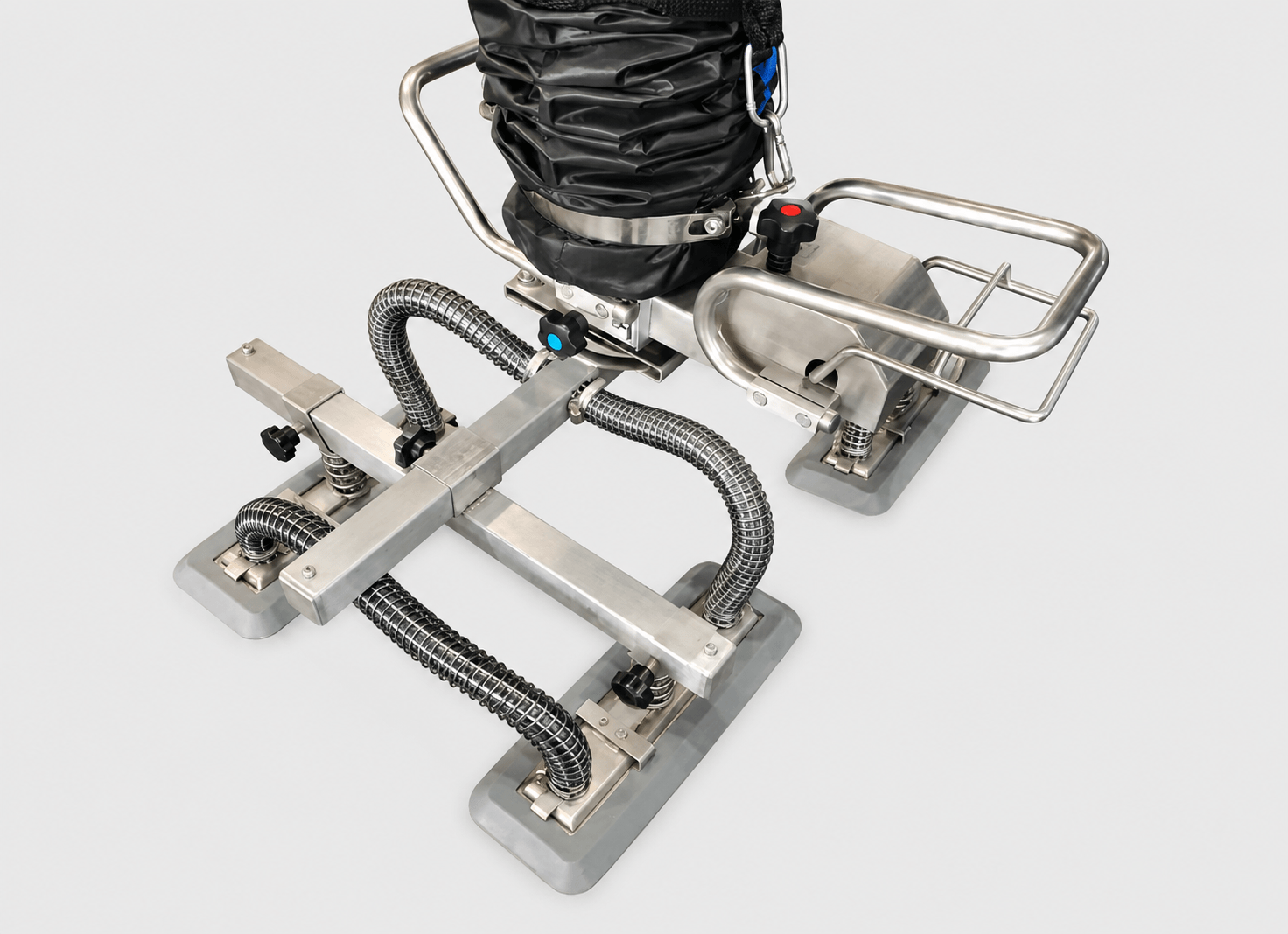

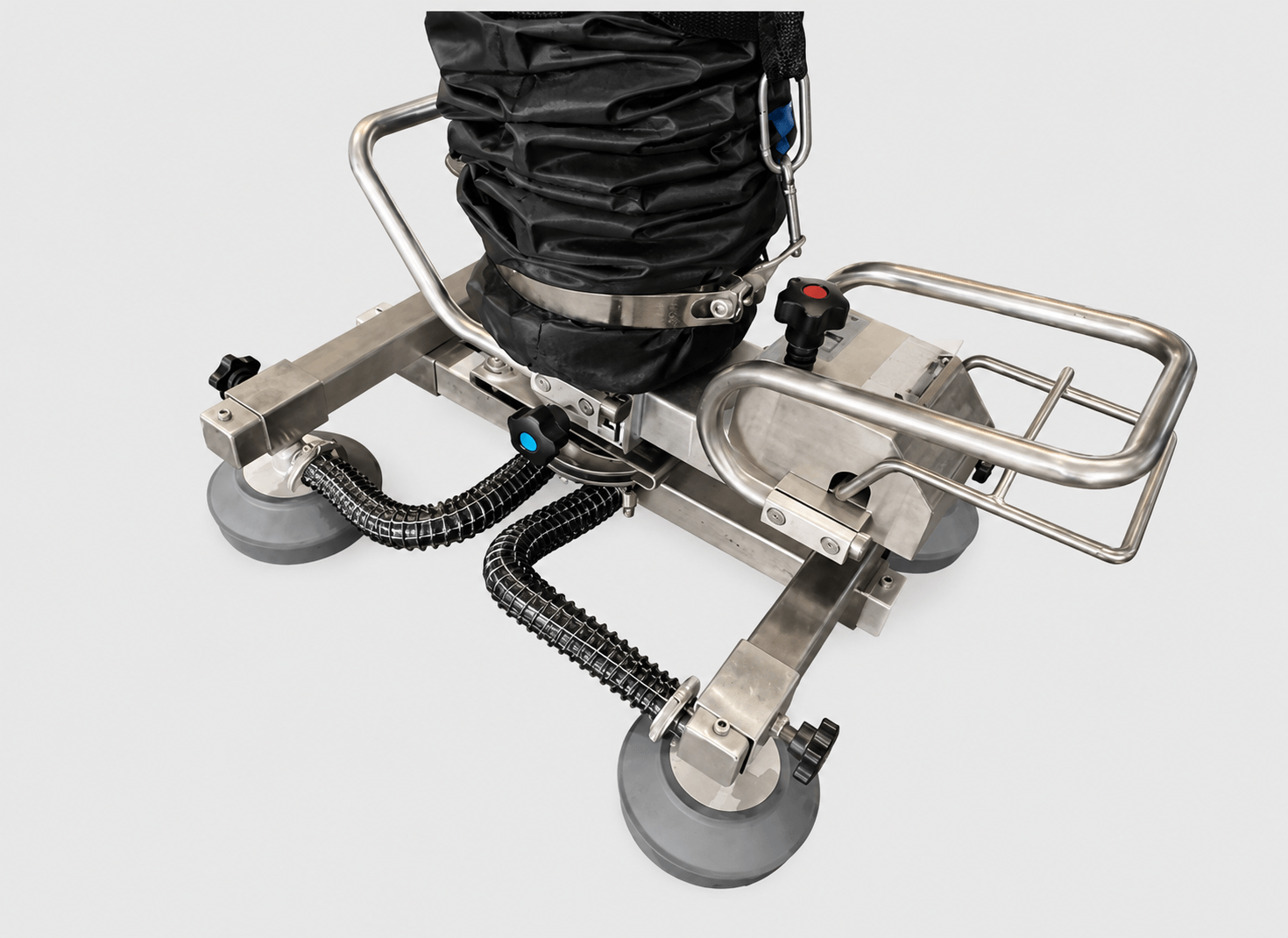

Standard TD Handle with Round Rubber Quad Pad

Ideal for handling and palletizing large cartons, cabinets, and panels. The suction pad spacing is user-adjustable along the crossbeam, and the crossbeam itself is adjustable along the main beam.

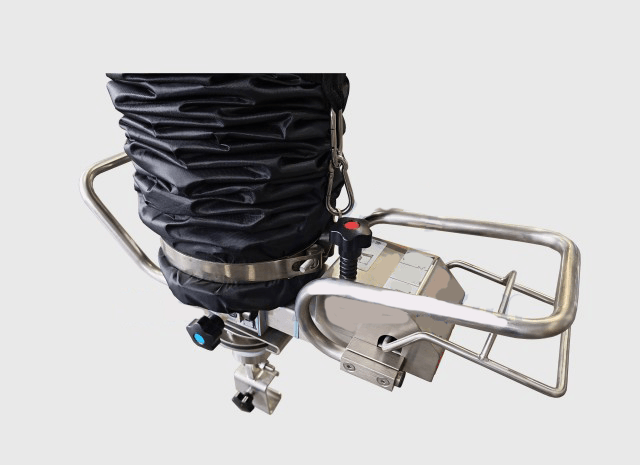

Standard TD Handle with Custom Hook

Ideal for handling and palletizing extra-large cartons, cabinets, and panels. The suction pad spacing is user-adjustable along the crossbeam, and the crossbeam itself is adjustable along the main beam.

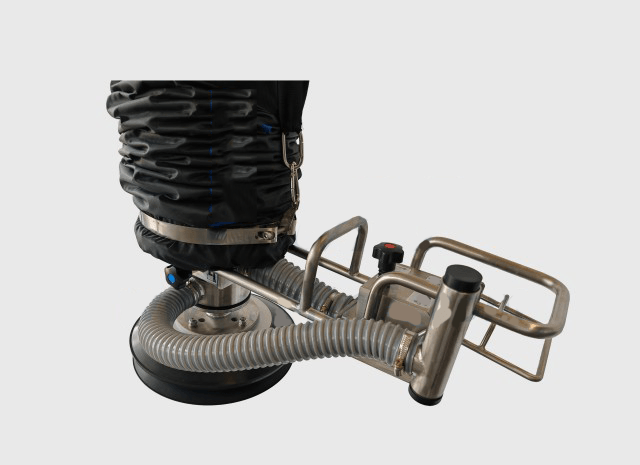

Extended TD Handle with Single Corrugated Pad

Ideal for workpieces with no suitable surface for suction gripping. A custom hook attachment replaces the suction pads, allowing the same lifter to hoist and palletize loads by hook engagement instead.

Single-Section Extended TD Corrugated Rubber Handle

Ideal for handling and palletizing large wooden barrels, fiber drums, coating drums, and pain drums.

Single-Section Extended TD Handle with Foam Suction Attachment

Ideal for handling and palletizing precision cabinets and energy storage components. Also suitable for workpieces with slightly uneven surfaces or porous faces that are prone to air leakage.

Double-Section Extended TD Handle with Rectangular Rubber Dual Suction Pad

Ideal for handling and palletizing taller workpieces such as cartons, cabinets, and panels. The distance between suction pads is user-adjustable.

Get Your Vacuum Tube Lifter Specification

Every lifter leaves the factory after full-load testing and suction pad seal verification—ready to  run on arrival. We offer free application consultation. Tell us three things:

•   What you’re lifting—material, dimensions, and weight range
•   Your shop environment—temperature, dust level, hazardous area requirements
•   Expected daily handling frequency

We’ll match the right handle, suction pad configuration, and lifter capacity, and return a technical   proposal with pricing within 48 hours.
