Light Duty Sheet Metal Vacuum Lifters: Compact Handling for Small Plates

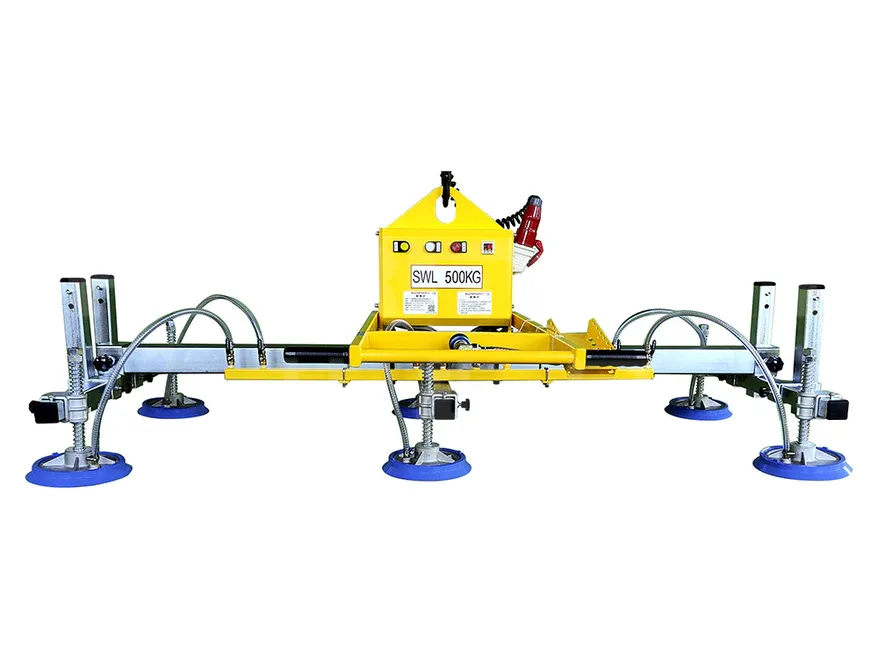

Light Duty Sheet Metal Vacuum Lifters Product Introduction

The light duty sheet metal vacuum lifters ranges from 500 KG to 2500 KG. Light duty sheet metal vacuum lifters configuration ladder, so you stay within one equipment family whether you are loading a single laser cutting station or lifting full-size plates across the shop floor. Light duty sheet metal vacuum lifters are available in three configurations tailored to specific operational needs, allowing you to pay only for the features your production line actually requires.

Designed for rough surfaces and continuous operation, the heavy-duty model features a high-speed, high-vacuum pump system that ensures rapid attachment and a secure hold, even on oily or uneven sheet surfaces. Capable of prolonged, continuous operation without performance degradation or overheating, it is a reliable choice for demanding environments—such as stamping and heavy processing lines—where downtime is not an option.

The standard model is designed for general handling tasks involving flat, smooth metal and non-metal sheets, including glass, composite panels, and laminated sheets. It adheres to a design philosophy requiring neither external power nor compressed air supplies; free of cables and hoses, the unit moves wherever the hoist hook goes, allowing for unrestricted mobility throughout the workshop.

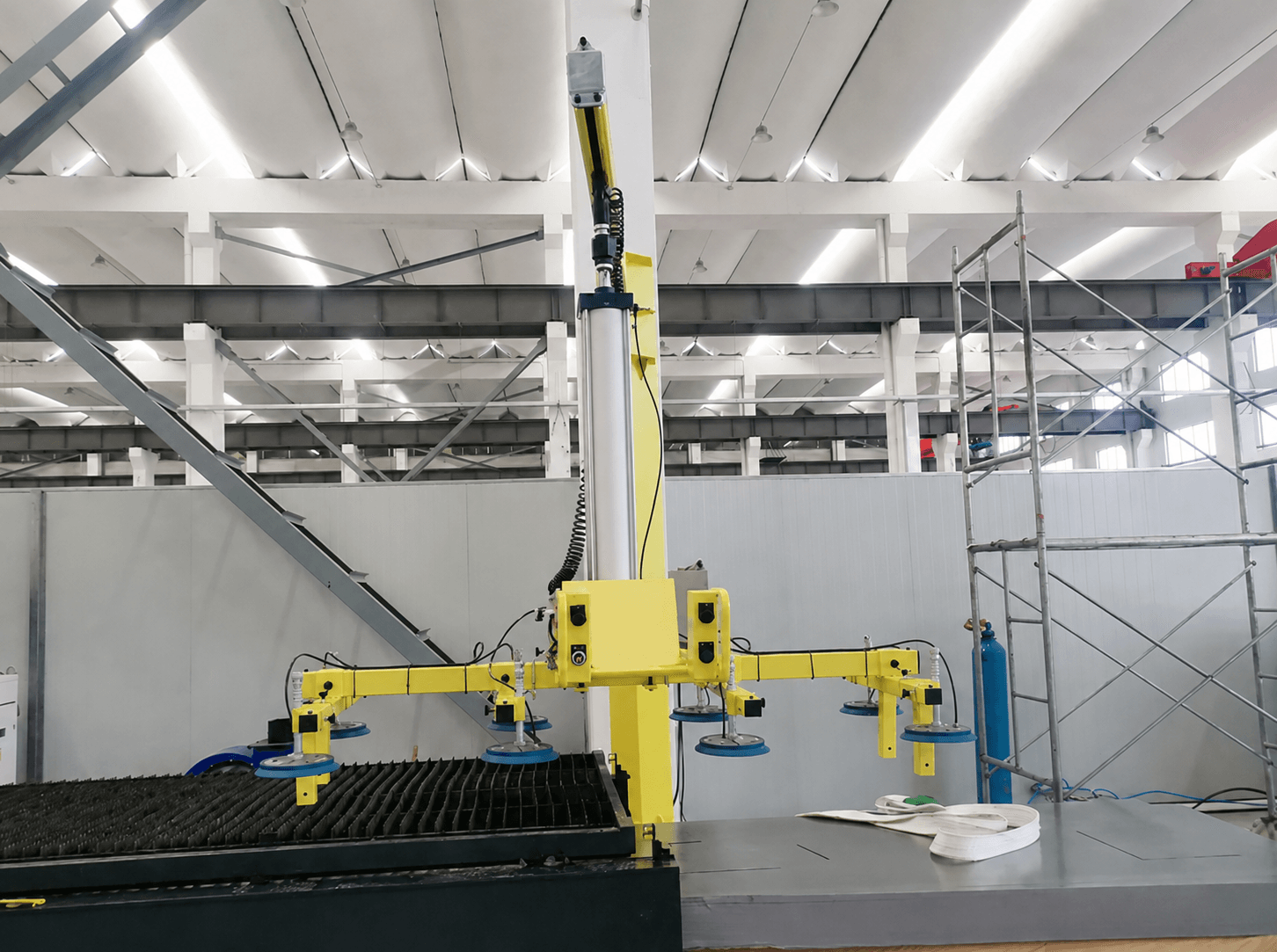

For high-speed laser cutting and loading applications, the high-cycle model replaces traditional electric hoists with a pneumatic cylinder lifting mechanism, significantly reducing cycle times for frequent, short-distance loading operations. When paired with a jib crane or wall-mounted crane, it offers faster sheet positioning and requires less physical effort from the operator compared to electric hoist systems.

All three configurations share the same core principles: stable and reliable vacuum gripping, a compact design for flexible deployment, and safety logic that eliminates the risk of accidental load release.

Light Duty Sheet Metal Vacuum Lifters Advantage

• High-Temperature Capability: Rated for sheet surfaces up to 400 °C — freshly cut or plasma-edged plates can be handled without waiting for cool-down, keeping the cutting station productive and the workflow uninterrupted. This removes a common bottleneck in laser and plasma cutting operations, where non-rated lifters must idle while workpieces cool.
• Imported Vacuum Pump & Valve Assembly: The core vacuum system uses imported pumps and precision control valves, delivering fast pull-down, deep holding vacuum, and consistent performance over extended duty cycles. Component traceability and proven reliability mean fewer unplanned stops.
• Accumulator-Backed Safety System: An integrated accumulator and continuous pressure monitoring circuit maintain holding vacuum even if primary power is momentarily interrupted. If vacuum pressure drops below the safe threshold, the system triggers an immediate alarm and locks out the release function — the load cannot be disengaged until a safe vacuum level is restored.
• Configurable for Your Workpiece: Available in multiple structural configurations and suction pad layouts. We offer single-pad, dual-pad, and multi-pad options to match your exact needs. They accommodate different plate dimensions, weight distributions, and surface conditions. From thin stainless steel to heavy aluminum plate, we have a configuration that fits.
• 2500 KG Maximum Load: One machine handles the full range of standard industrial plate sizes. It easily processes laser cutting blanks, heavy plasma-cut sections, and shear-fed stock.
• Certified Quality: Manufactured under an ISO 9001 quality management system. The product carries CE certification, meeting EU safety, health, and environmental requirements for your destination market.

Light Duty Sheet Metal Vacuum Lifters Technical Parameter

We offer 6-pad, 8-pad, 10-pad, and 12-pad configurations across the light duty sheet metal vacuum lifters. Covering a range of plate dimensions and load distributions, so you can match the suction layout to your actual workpiece, rather than adapting your workflow to a fixed machine.

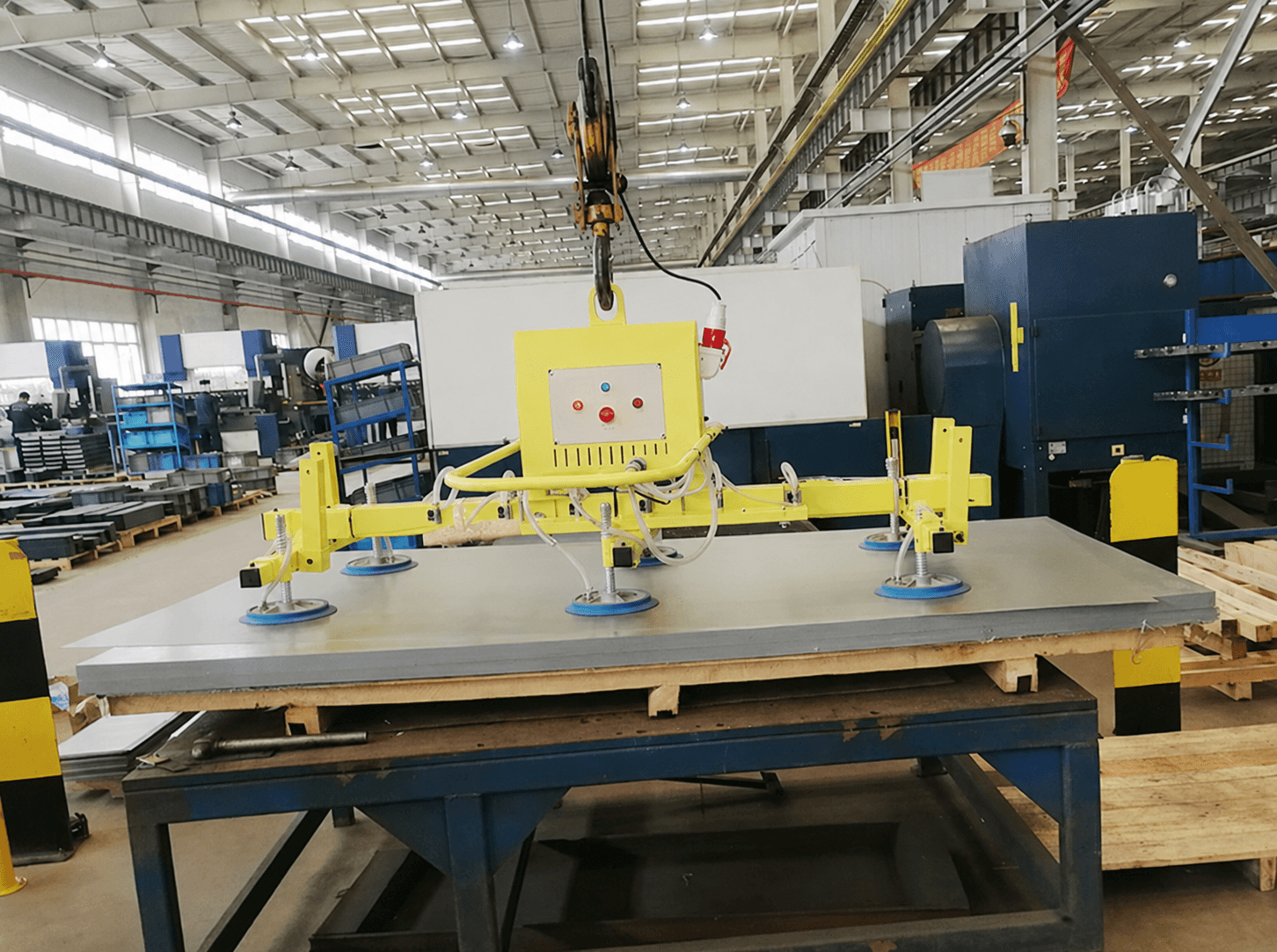

Light Duty Sheet Metal Vacuum Lifters Applications

Energy Sector Heavy Sheet Metal Multi Point Handling – 600KG Capacity

• Multi-Pad Deflection Control: 6-suction-pad array evenly distributes weight to prevent sag and bending across large 600KG-capacity sheets.
• Energy Sector Lifting: Engineered to handle up to 600KG gauge plates for energy tech manufacturing (e.g., energy storage enclosures, battery casing frames).

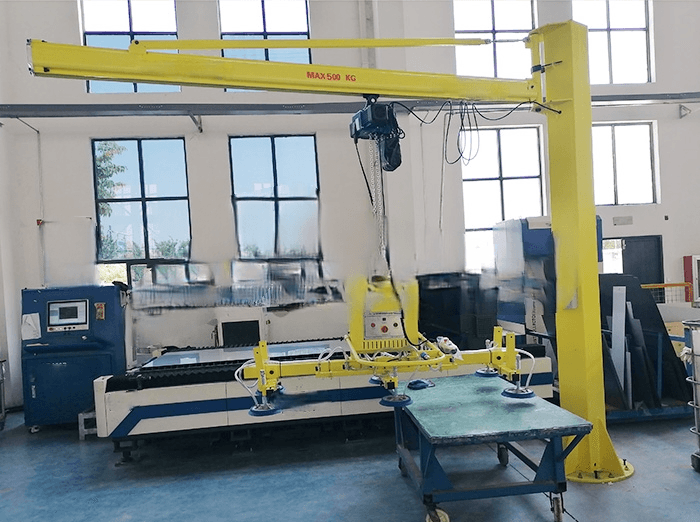

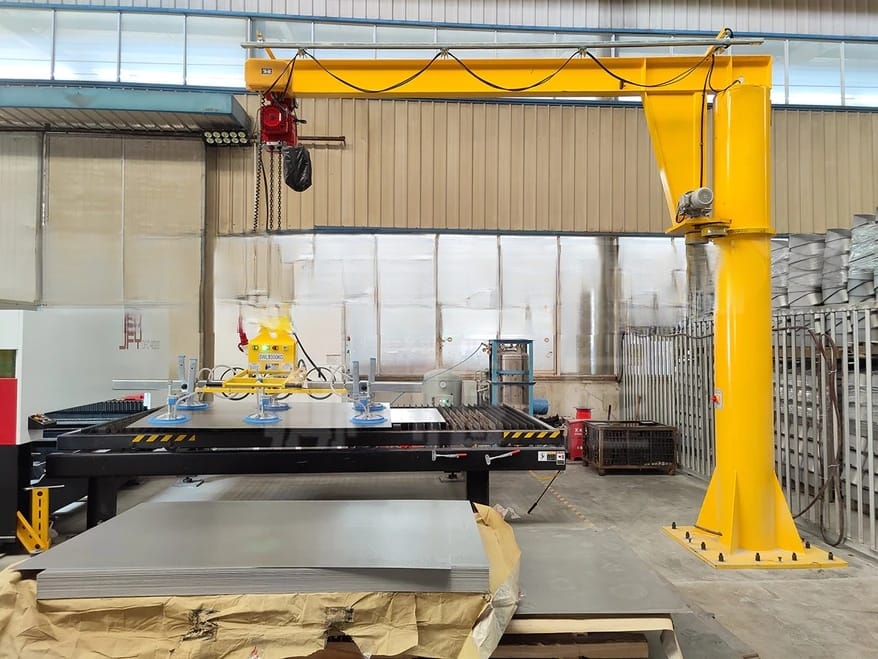

Semiconductor Equipment Plate Handling via Jib Crane – 600KG Capacity

• Precision Jib Crane Integration: Combines with a pillar jib crane to achieve agile, precise positioning between material carts and processing machines within the work radius.
• Single-Station Ergonomic Workflow: Allows a single operator to manage high-frequency, high-precision machine loading and unloading with minimal effort.

Casting Material Handling via Jib Crane -800KG Capacity

• Multi-Gripper Redundant Lifting: Employs an 8-suction cup system with safety redundancy to grip rough surfaces reliably, integrating with a pillar jib crane for precise 800KG casting positioning.
• Scratch-Free Single-Operator Control: Replaces rigid chains with flexible vacuum grips to prevent surface damage, enabling a single operator to manage high-frequency loading with effortless ease.

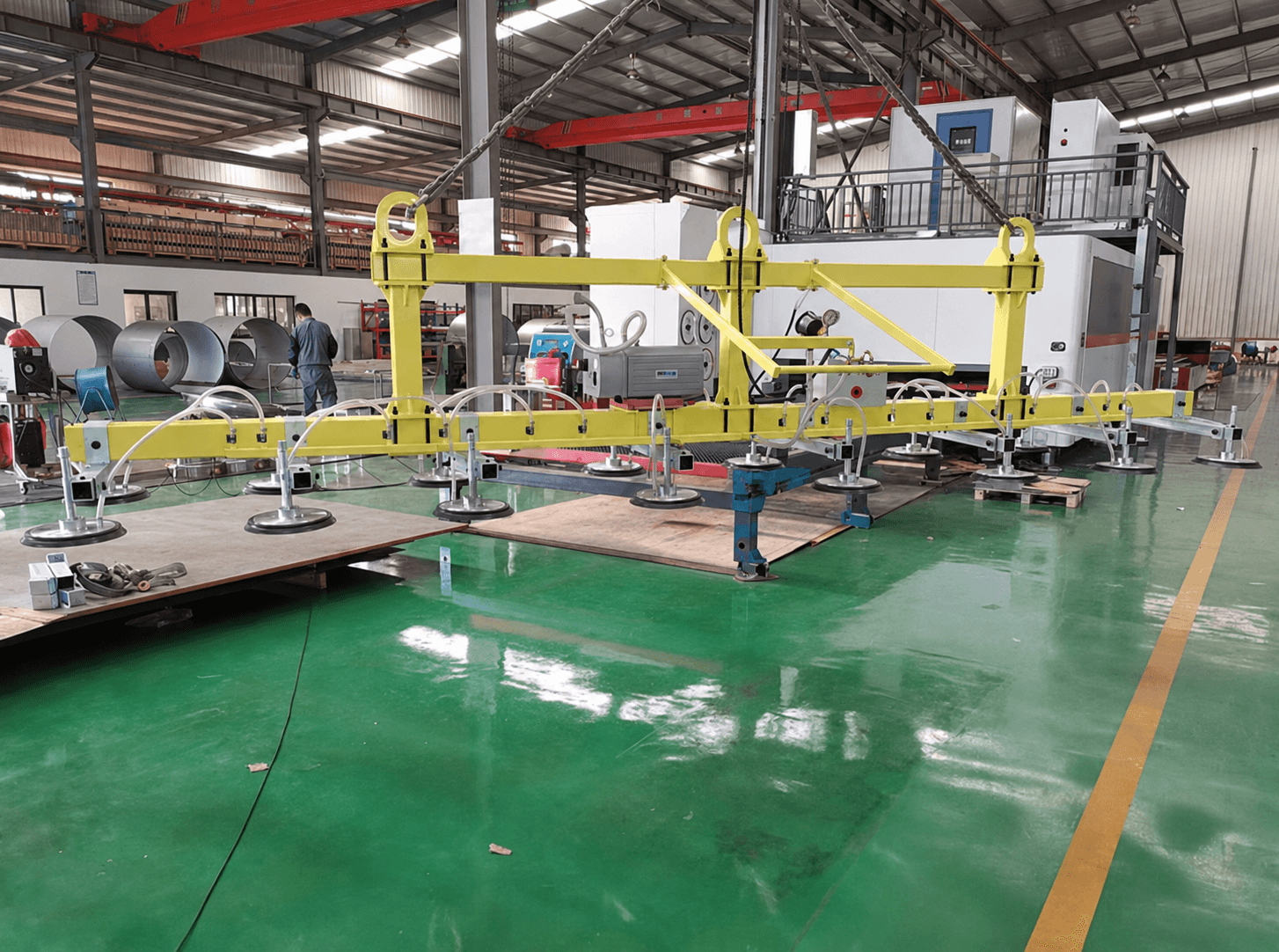

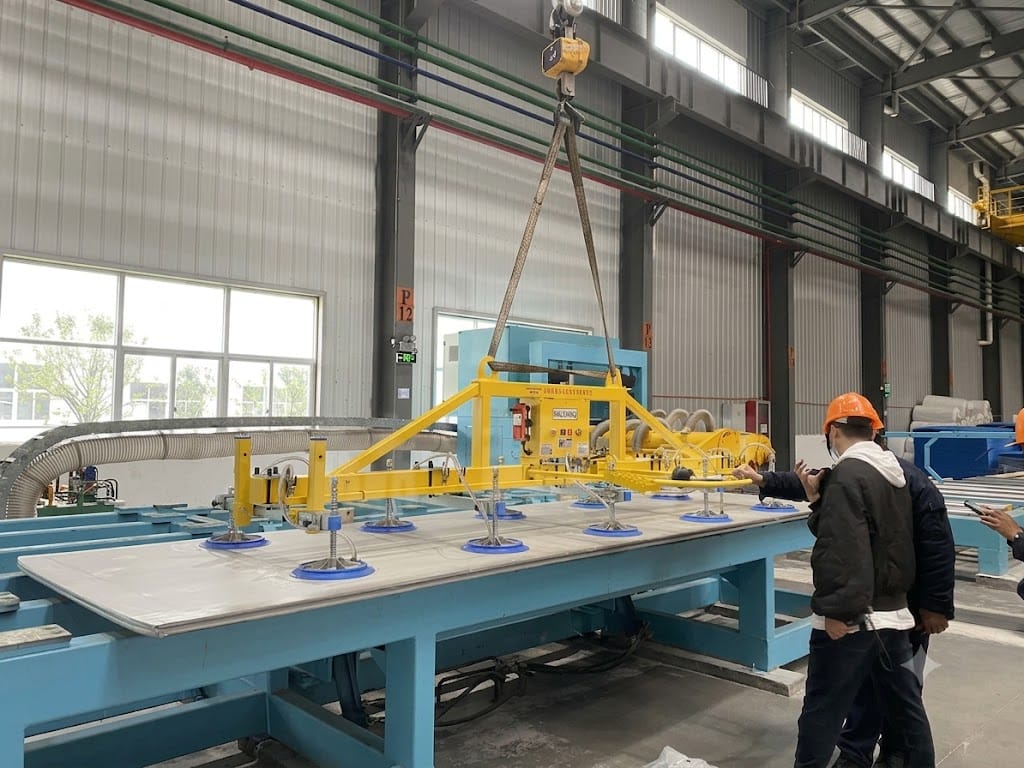

Steel Plate Handling via Gantry Crane – 1000KG Capacity

• 10 Pad Vacuum Lifters Secure Lifting: Employs a 10 pad array with high-safety redundancy to secure large-sized heavy steel plates.
• Integrating with a Gantry Crane: Enables the smooth, cross-area lifting and positioning of 1,000 kg sheets.

Your Partner in Vacuum Sheet Handling: From Compact to Heavy Duty

We are a vacuum lifting equipment manufacturer serving industries that move sheet metal every day: laser and plasma cutting, press brake and stamping, steel service centers, automotive production, aluminum processing, glass handling, stone fabrication, packaging logistics, and solar panel manufacturing.

Every vacuum lifter we ship is backed by an ISO 9001 certified quality management system. Our products carry CE certification, meeting EU safety, health, and environmental requirements — so you can buy with confidence regardless of your destination market.

What We Deliver

From the compact 500 KG single-station lifter to the heavy-duty 2500 KG multi-pad light duty sheet metal vacuum lifters, we provide design consultation, equipment manufacturing, on-site commissioning, operator training, and after-sales support as a single-source service. You define the application; we configure the solution.
