Glass Vacuum Lifters Product Introduction
Designed for precise and safe sheet glass handling, our glass vacuum lifters deliver exceptional load control and installation flexibility for flat and curved glass panels. Available in manual vacuum glass lifter, motorized vacuum glass lifter, pneumatic glass lifter, and hydraulic vacuum glass lifter configurations, the lineup offers tailored drive systems—ranging from 90° tilting for maximum maneuvering to tilt-only models optimized for streamlined vertical-to-horizontal positioning.
Engineered to protect against edge damage through smooth, jerk-free movement, each unit features an ergonomic multi-axis button system for single-operator control, high-friction non-marking suction cups, and a dual-circuit vacuum system for maximum safety across factory processing lines, logistics handling, and on-site glass curtain wall installations. Glass vacuum lifters are suitable for use at fixed workstations in glass secondary processing, including the loading and unloading of glass sheets on insulating glass production lines, laminated glass production lines, glass edge grinding and waterjet cutting operations.
Glass Vacuum Lifters Advantage
- Compatible with Multiple Lifting Systems: Glass vacuum lifters are designed for fixed workstations and compatible with free standing jib cranes, wall mounted jib cranes, and suspension cranes for flexible and efficient handling.
- Pneumatic Tilting and Rotating: Pneumatic cylinder actuation enables glass panels to tilt from 0° to 90° and rotate from 0° to 90°, improving handling speed and operating efficiency.
- Millimeter-Level Fine Adjustment: Glass vacuum lifters equipped with German HAFNER pneumatic control valves for millimeter-level cylinder adjustment and precise glass panel positioning.
- Durable with Low Maintenance Costs: Robust construction and stable long-term operation ensure an extended service life while reducing maintenance frequency and costs.
- Low-Headroom Design: Requires minimal overhead clearance, making the lifter suitable for workshops with restricted space or low ceilings.
- Simple and Safe Operation: Glass vacuum lifters’ stable system performance and intuitive controls are complemented by a two-button delayed vacuum-release function that helps prevent accidental glass release.
Glass Vacuum Lifters Technical Parameter
| Glass Vacuum Lifters Type | Maximum Load | External Dimension(mm) | Vacuum Diameter(mm) | Vacuum Number | Power System | Control Mode | Net Weight |
|---|---|---|---|---|---|---|---|
| HP-SF1500-16S | 1500kg | (1375+2500+1375）×1540 | Φ300 | 16pcs | DC12V | Manual/Remote control | 0-90° Manual rotation |
| HP-SF2000-20S | 2000kg | （1375+5000+1375）×1740 | 20pcs | ||||
| HP-DF1500-16S | 1500kg | 6250×1750 | Φ300 | 16pcs | AC208-460V (±10%) | Wireless remote control | 0-90° Remote rotation |
| HP-DF2000-20S | 2000kg | (2125+6000+2125）×1750 | 20pcs | ||||
| HP-DF3000-30S | 3000kg | (3125+6000+3125)×1750 | 30pcs | ||||
| HP-QFD400-6S | 400kg | 860×680/ 1760×1130 | Φ250 | 6pcs | Compressed air(0.6-0.8Mpa) | Manual control | 0-90°Pneumatic rotation |
| HP-YF2000-20S | 2000kg | (1375+2500+1375)×1340 | Φ300 | 20pcs | DC24V | Wireless remote control | 0-90°Hydraulic rotation |
| HP-YF3000-8S | 3000kg | (1250+2500+1250)×1800 | 1000×640 | 8pcs | |||
| HP-YF5000-12S | 5000kg | (2000+4300+2000)×1900 | 1000×640 | 12pcs | |||
| HP-YF10T-20S | 10T | (3000+6000+3000)×1900 | 1000×640 | 20pcs |
Glass Vacuum Lifters Configuration Options
To accommodate different handling requirements, operating frequencies, and on-site power conditions, four configurations are available: manual vacuum glass lifters, motorized vacuum glass lifters, pneumatic glass lifters, and hydraulic vacuum glass lifters. Each configuration features a different drive system, operating method, and range of applications, allowing customers to select the most suitable solution for their working conditions.
Manual Vacuum Glass Lifter
- The HP-SF series is suitable for the indoor overhead lifting of large and extra-large glass panels.
- Features 0–90° manual tilting; with skilled operation, handling efficiency and speed are significantly increased.
- Offers long battery life and a robust, durable design, ensuring low long-term maintenance costs.
Motorized Vacuum Glass Lifter
- The HP-DF series is designed for lifting large glass sheets within factory environments.
- High-precision worm gear mechanisms enable motorized glass tilting from 0° to 90°, ensuring simple and convenient operation.
- Equipped with a high-capacity vacuum pump from a German brand, delivering high airflow, rapid suction, and a high vacuum level.
- AC power connectivity supports continuous, long-term operation.

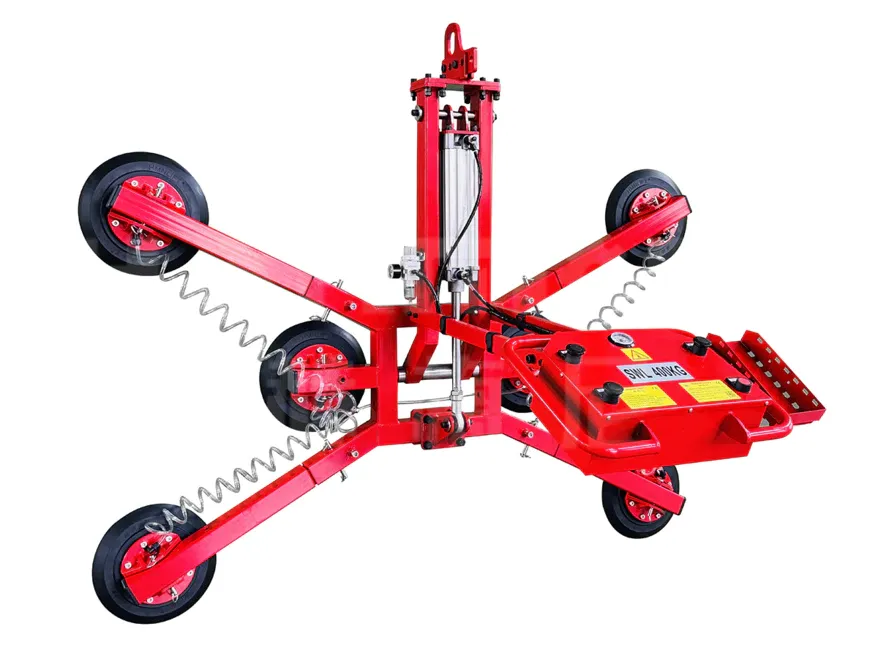

Pneumatic Glass Lifter
- The HP-QFD series is designed for glass processing and curtain wall manufacturing applications, such as dispensing sealant onto photovoltaic glass panels and glass sub-frames.
- The equipment has low headroom requirements, making it suitable for use in facilities with limited vertical clearance.
- Features electric hoist lifting and pneumatic 90-degree tilting.
- Can be used in conjunction with a stationary column-mounted jib crane or an overhead factory crane.
Hydraulic Vacuum Glass Lifter
- HP-YF series equipment spans 18–20 meters, making it suitable for lifting large glass sheets within factory environments.
- Large-bore hydraulic cylinders enable 0–90° hydraulic tilting of the glass.
- The system is stable and easy to operate; a dual-button, time-delayed release mechanism ensures safety and reliability.
- Select models feature independent vacuum modules, offering enhanced safety and operational efficiency.
- The modular, multi-section design allows for the lifting of glass sheets of various lengths.
Glass Vacuum Lifters Applications

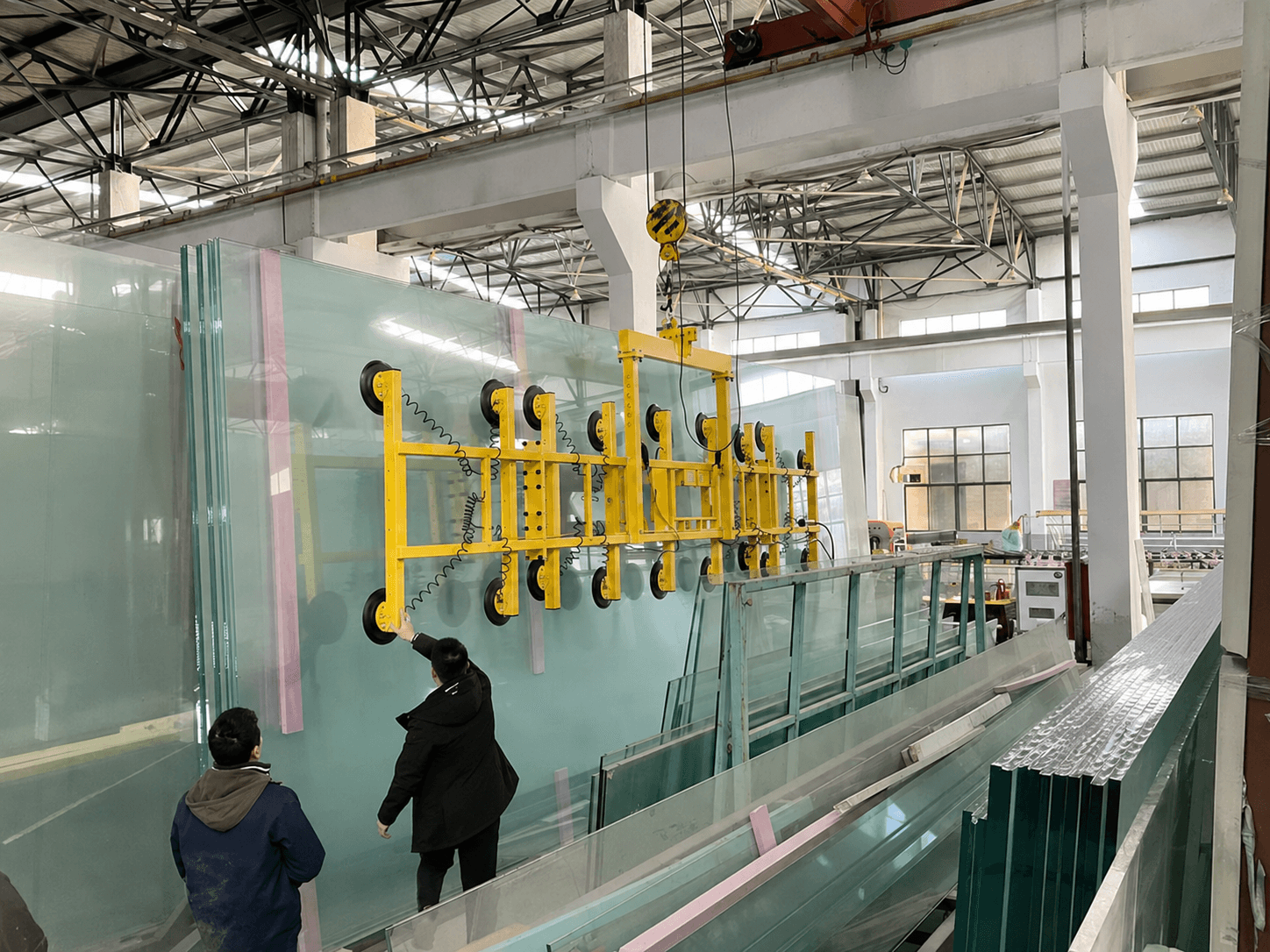

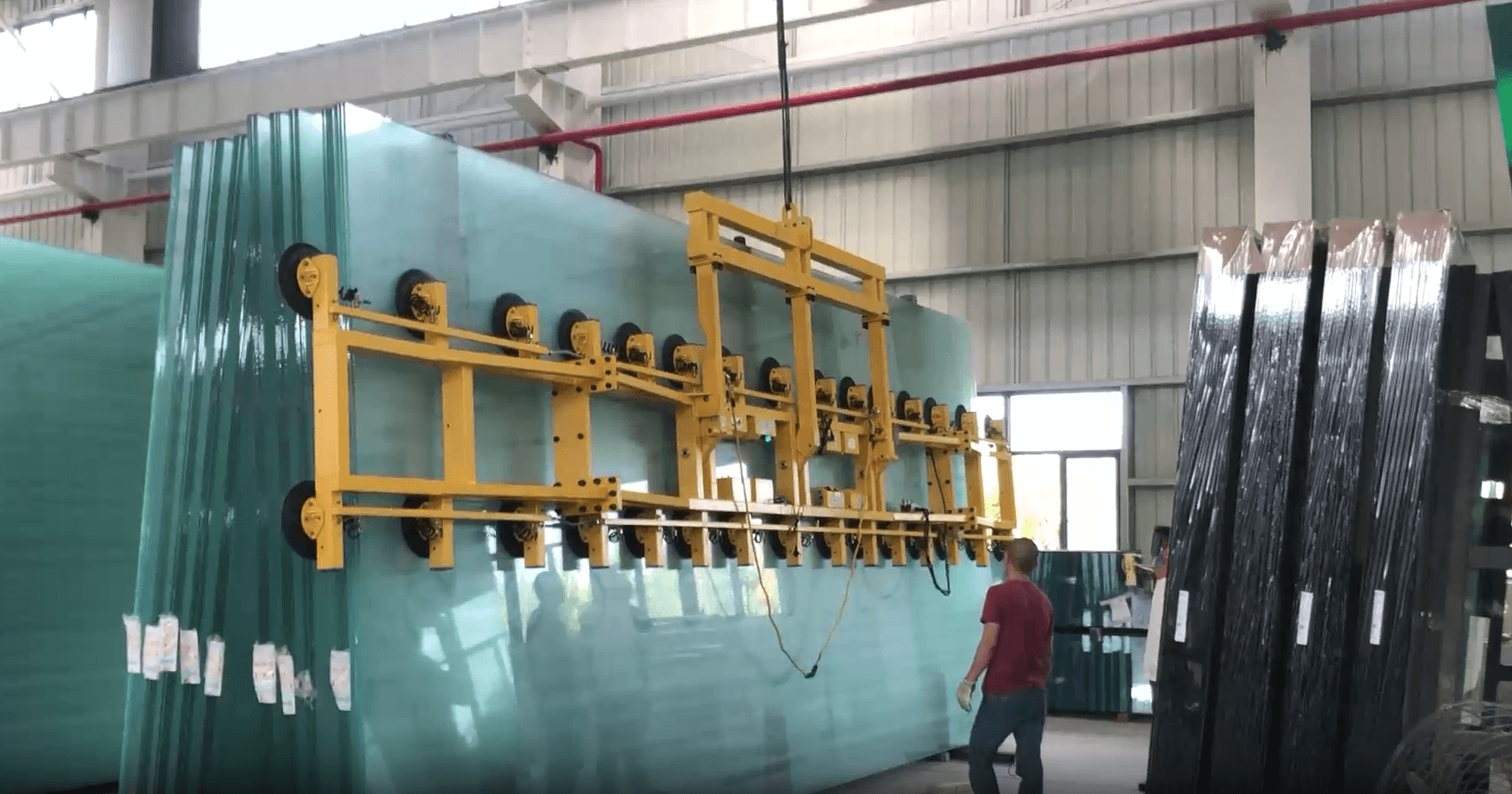

Manual Vacuum Glass Lifter Used in Overhead Crane – 2000KG Capacity
- 20-Pad Dual-Circuit Vacuum System: Uses 20 suction pads to distribute the load evenly across large raw glass sheets, while the dual-circuit vacuum system provides stable lifting support for loads up to 2000KG.
- 90° Manual Tilt with Overhead Crane: Works with a single-girder overhead crane to lift, transfer, and manually tilt raw glass sheets from 0° to 90° between vertical and horizontal positions.

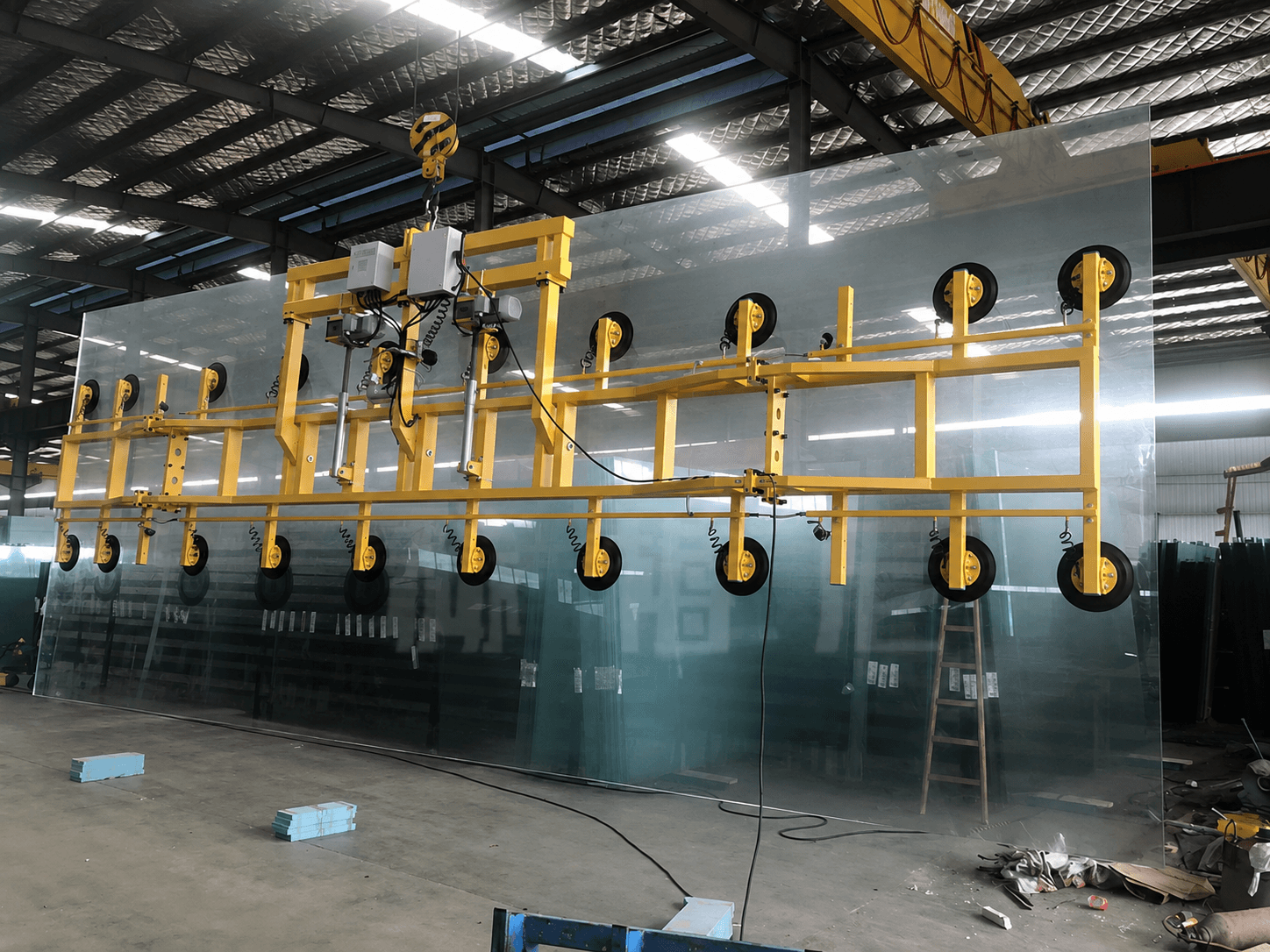

Motorized Vacuum Glass Lifter Used in Overhead Crane – 2000KG Capacity
- AC-Powered Continuous Operation: Direct AC power eliminates battery runtime limitations, making the HP-DF2000-20S suitable for extended, high-frequency operation in glass factories.
- 20-Pad Overhead Crane Handling: Twenty suction pads distribute the load across large glass sheets, while a single-girder overhead crane supports lifting and transfer of loads up to 2000KG.

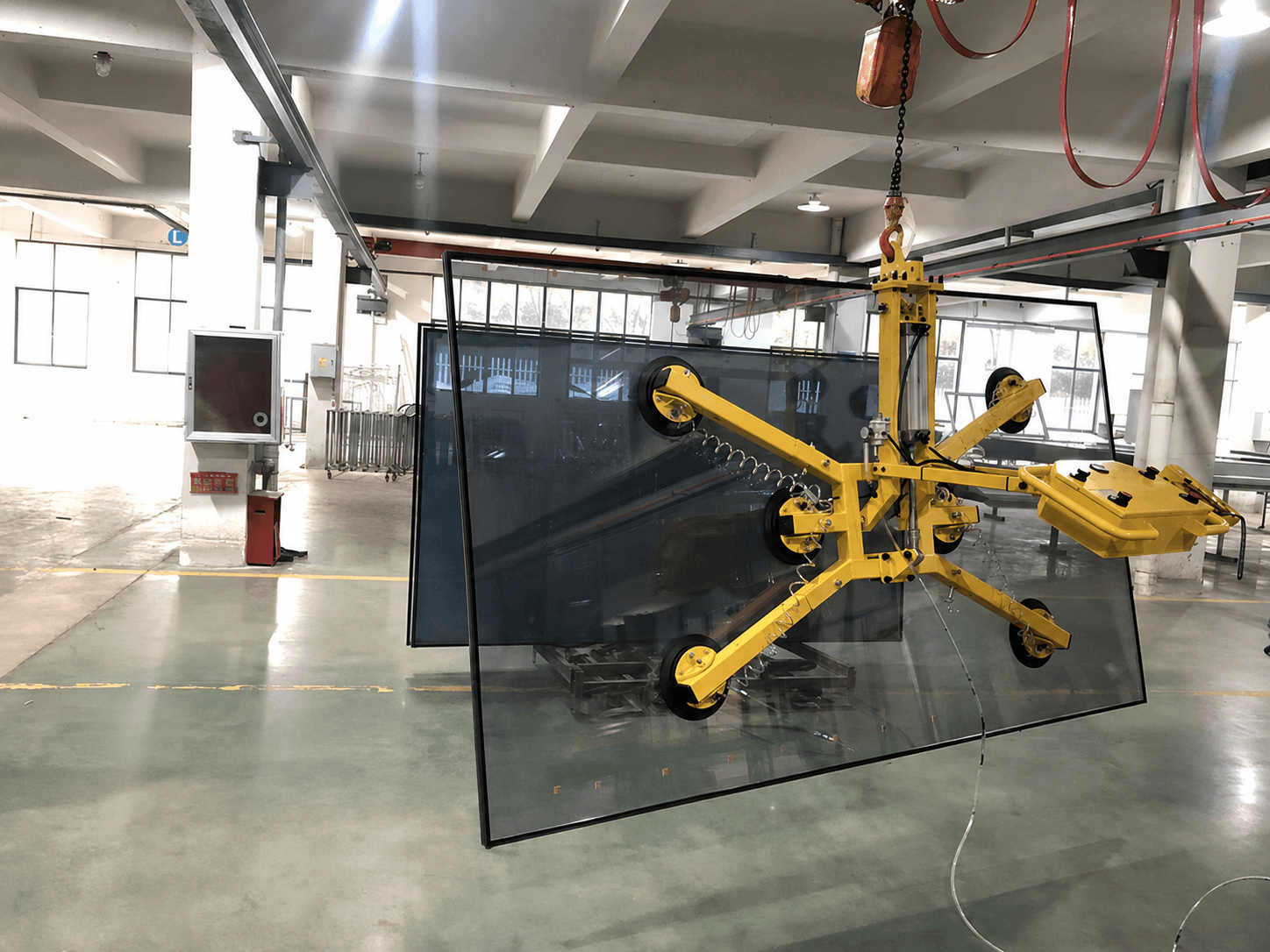

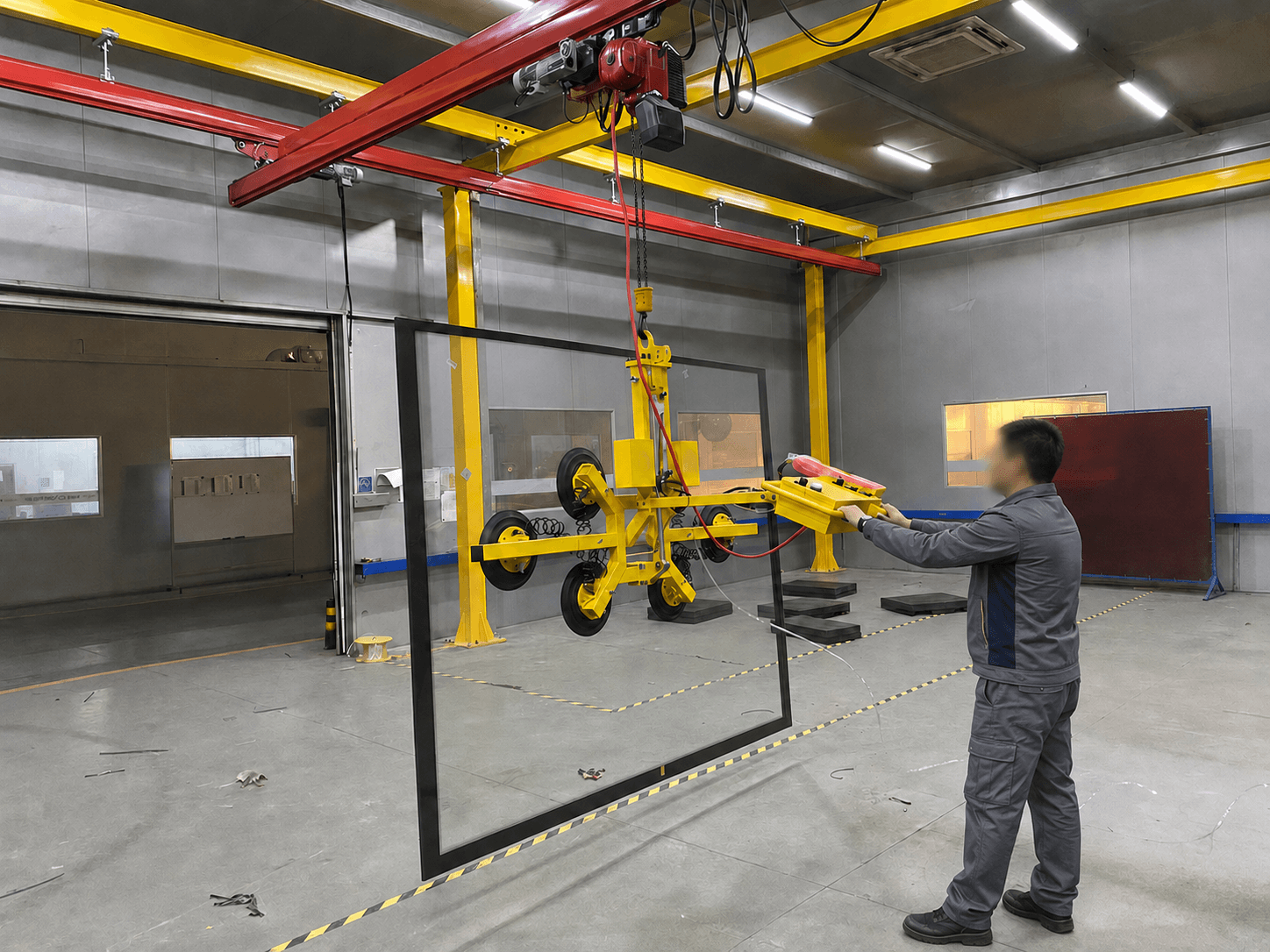

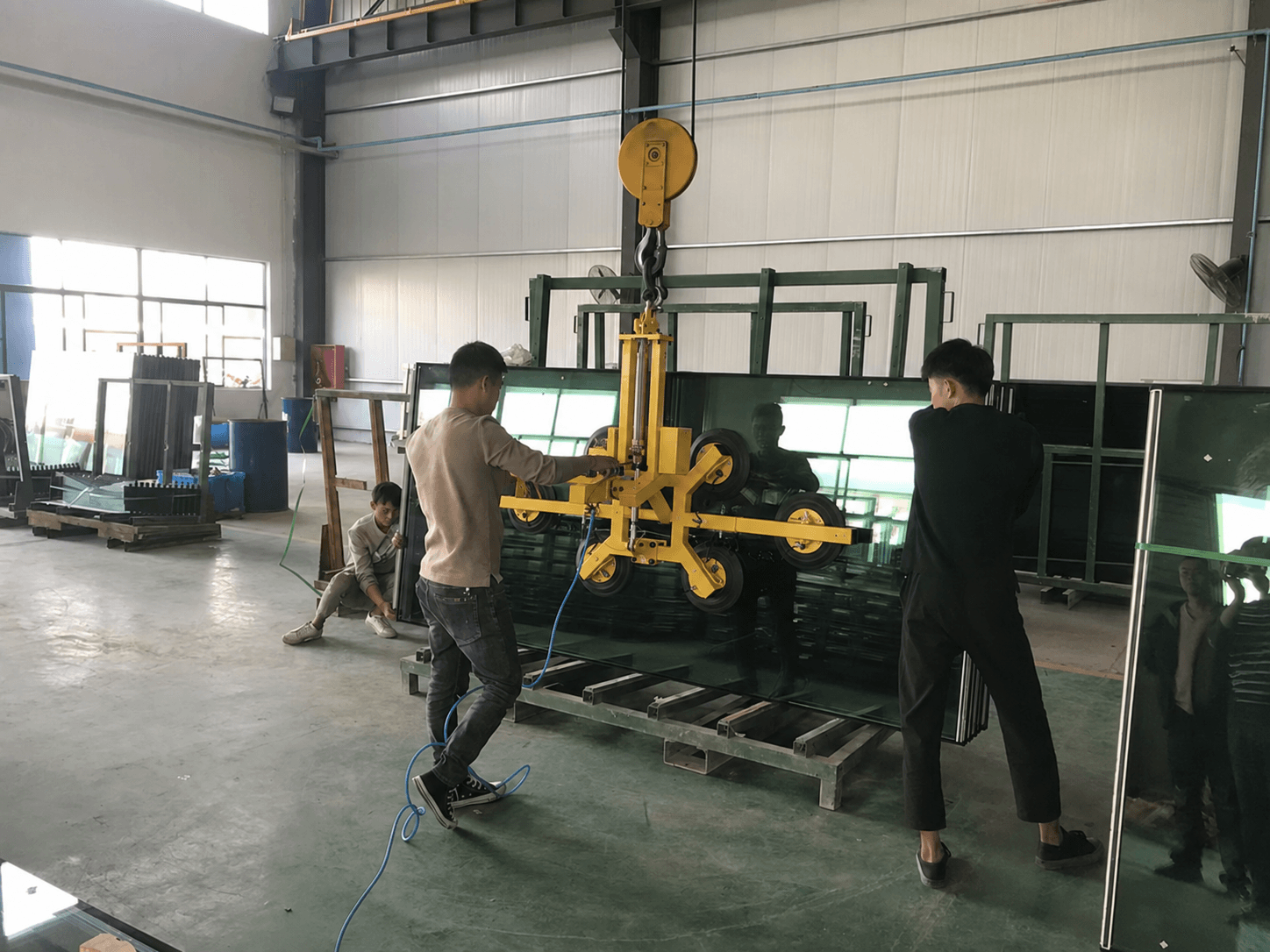

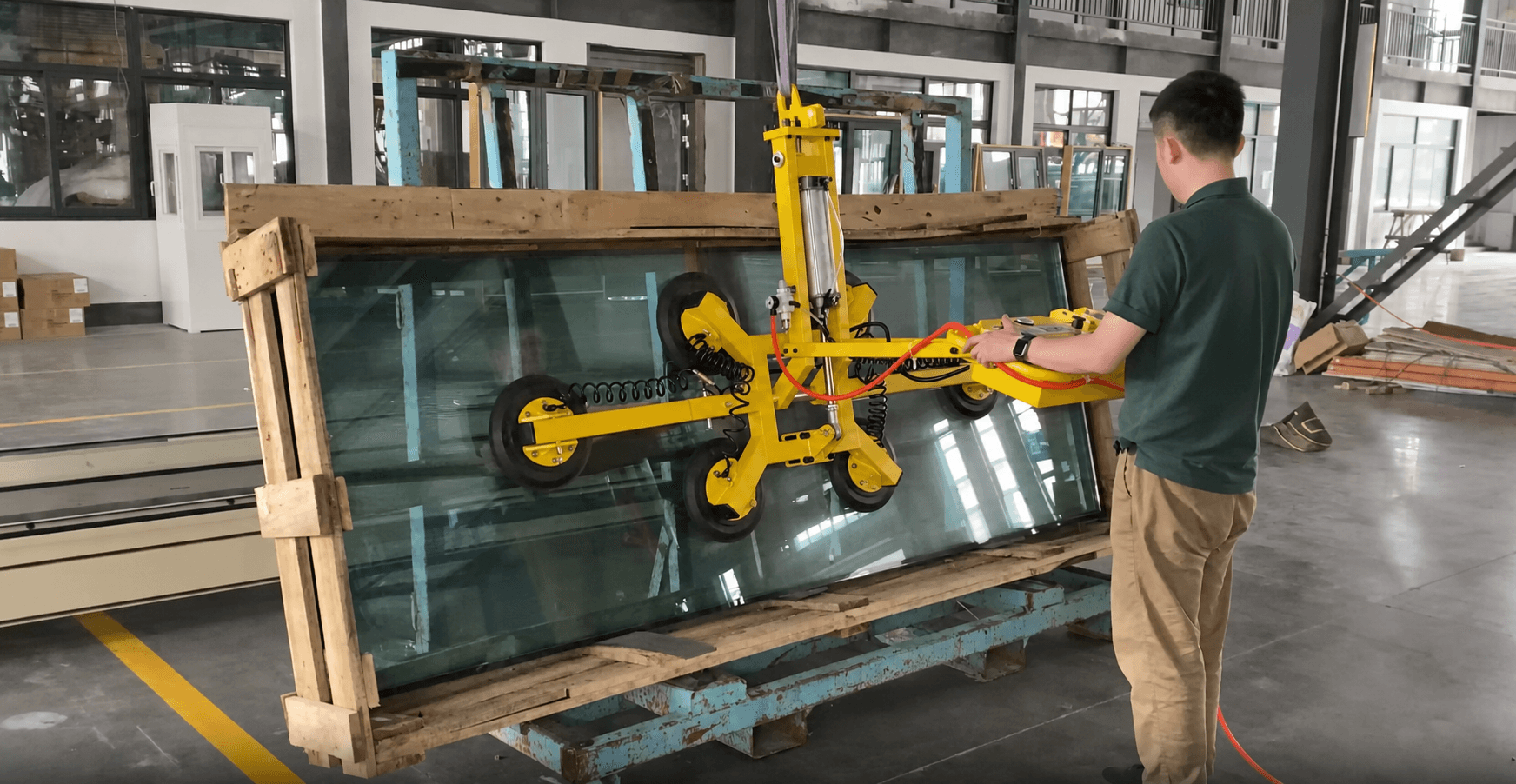

Pneumatic Glass Lifter Used in Suspension Crane – 400KG Capacity
- Pneumatic 90° Tilting: Uses pneumatic actuation to tilt curtain wall glass through 90°, supporting controlled repositioning between horizontal and vertical orientations.
- Hoist-Assisted Lifting: Works with an electric chain hoist for smooth vertical lifting and precise height adjustment during glass assembly and transfer.
- 6-Pad Suspension Crane Handling: Six suction pads provide stable load distribution, while the suspension crane system enables flexible movement between workstations for loads up to 400KG.

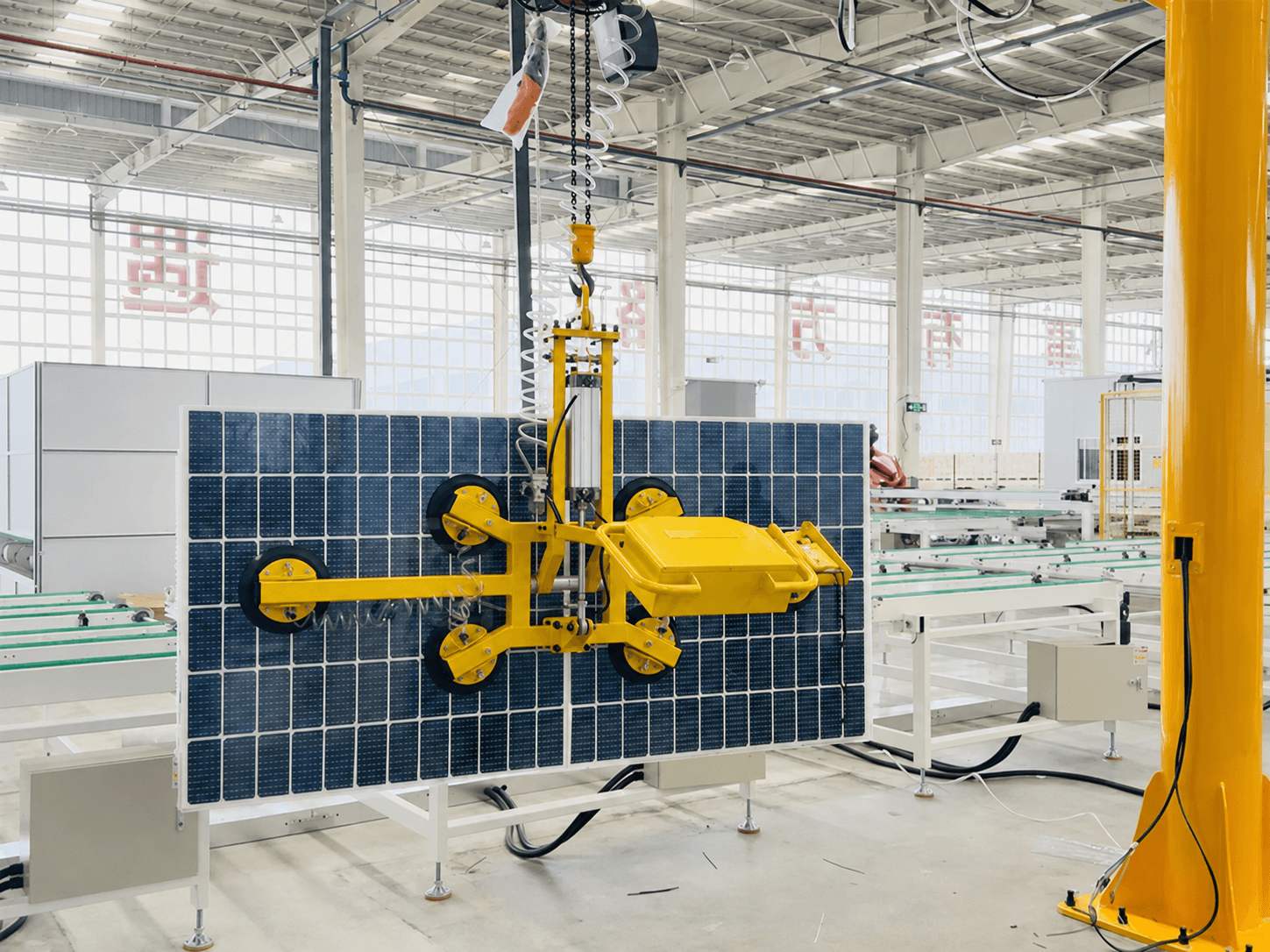

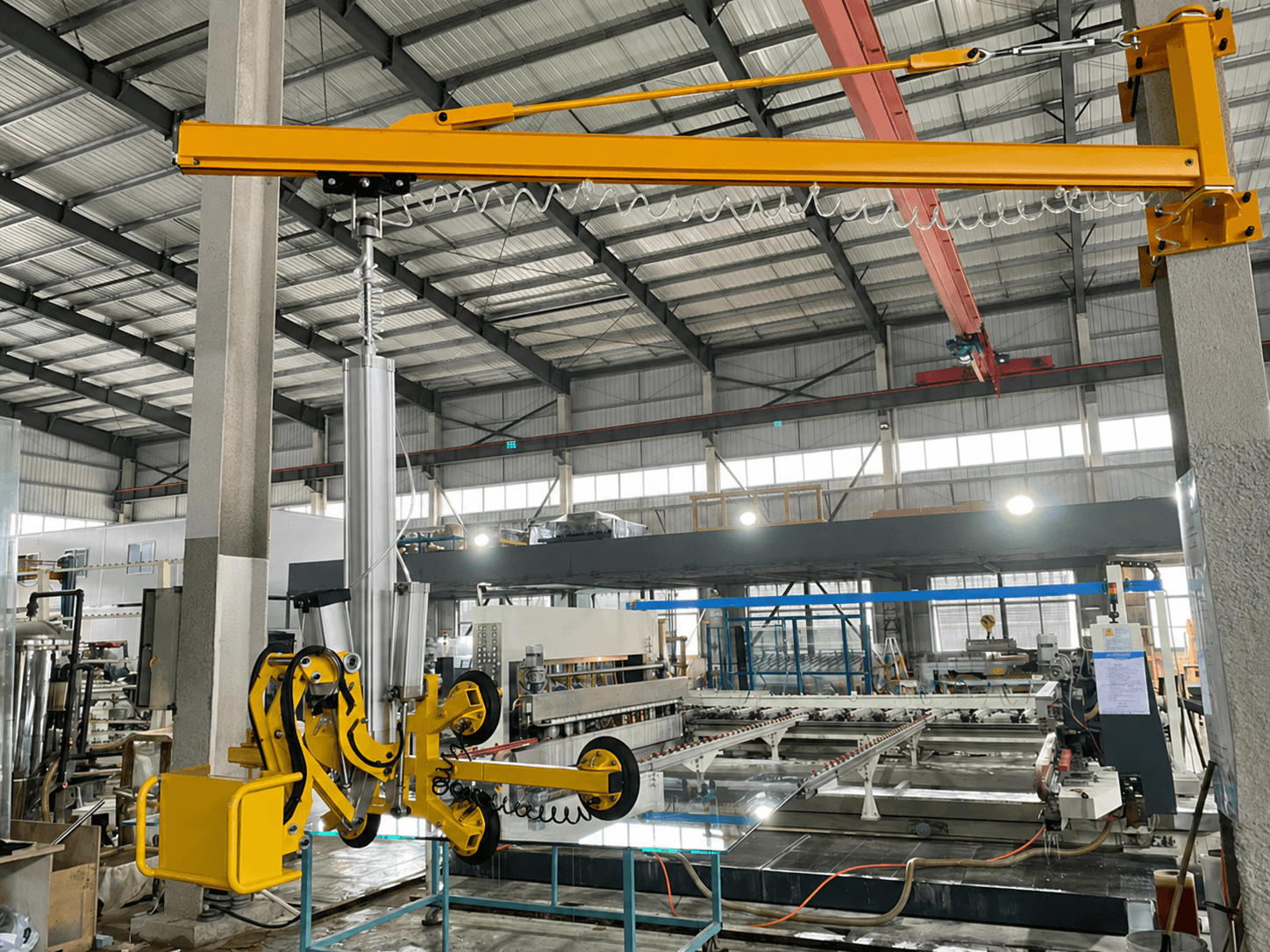

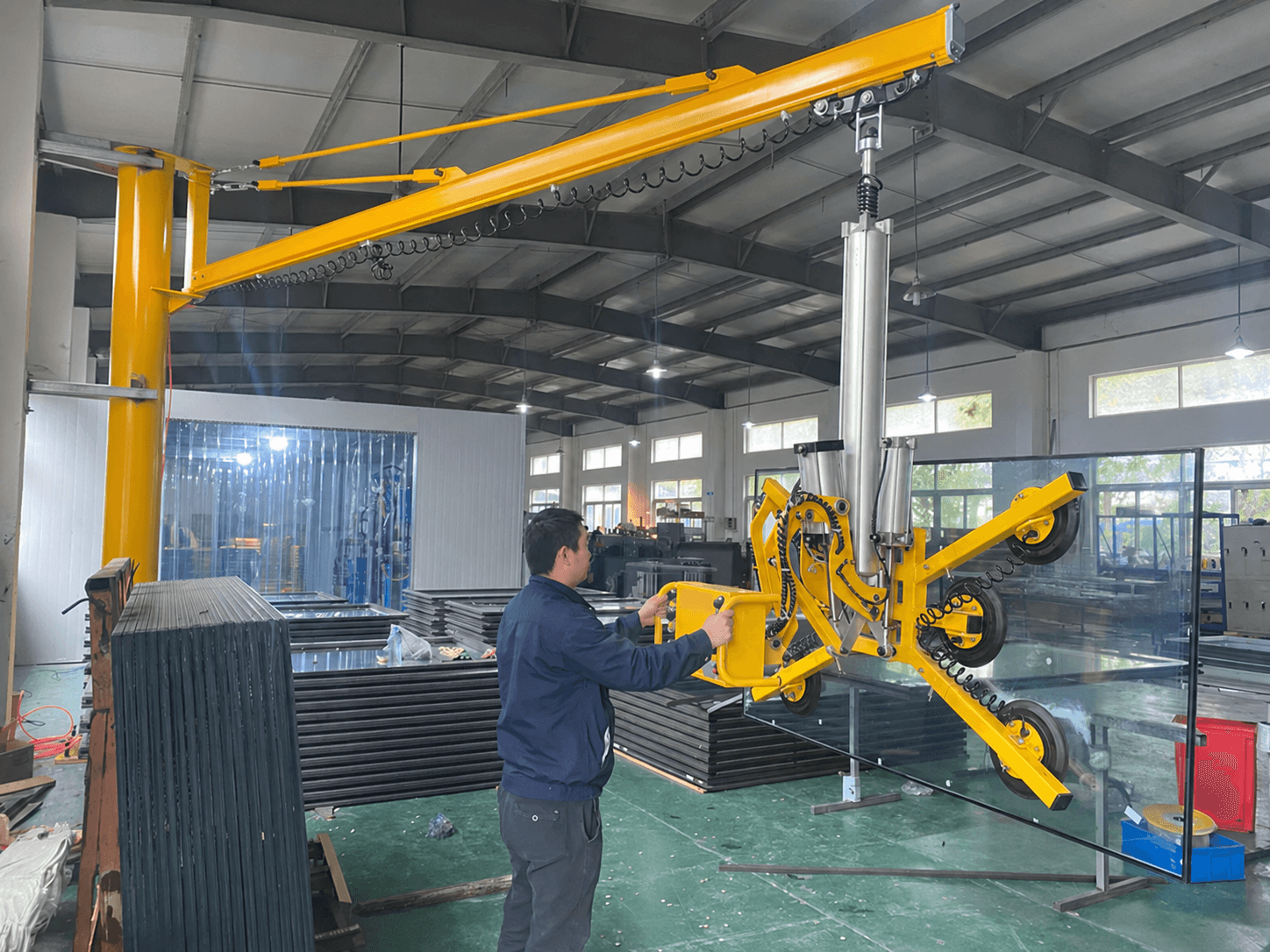

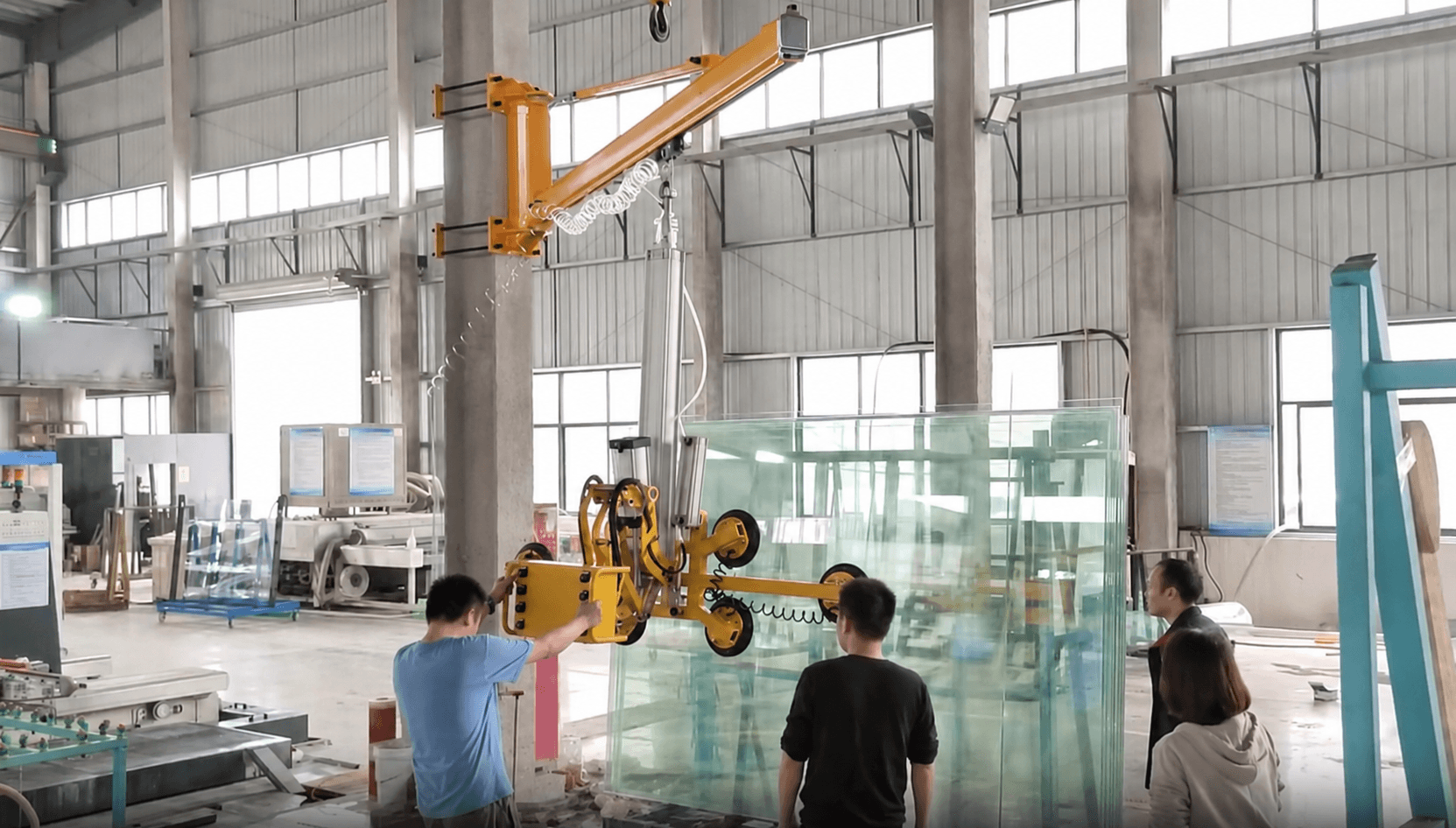

Pneumatic Glass Lifter Used in Free Standing Jib Cranes
- Pneumatic 90° Tilting: Pneumatic cylinder actuation enables controlled 90° tilting of photovoltaic glass between horizontal and vertical positions for production-line loading and transfer.
- Hoist-Assisted Lifting: Works with a hoist to provide smooth vertical lifting and accurate height positioning during photovoltaic glass handling.
- 6-Pad Jib Crane Handling: Six suction pads distribute the load across the glass surface, while the free-standing jib crane provides flexible lifting and movement within the workstation.

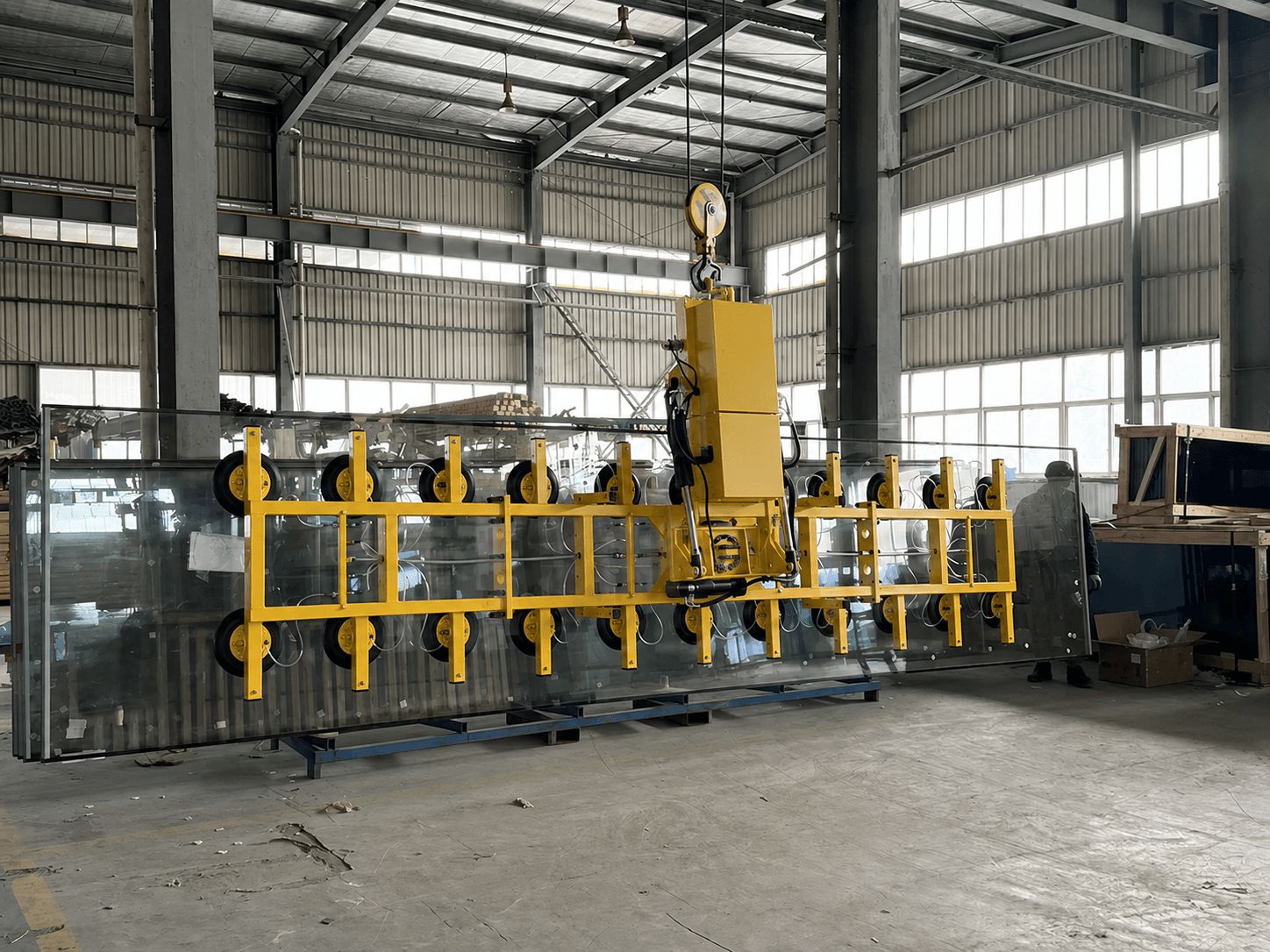

Hydraulic Vacuum Glass Lifter Used in Insulating Glass Handling
- Hydraulic Glass Tilting: The hydraulic drive provides smooth, controlled tilting of large insulating glass units, reducing manual effort during orientation changes and transfer.
- 22-Pad Load Distribution: The HP-YF2000-22S uses 22 suction pads to distribute the load across large glass surfaces, supporting stable handling of insulating glass units up to 2000KG.
- DC-Powered Overhead Lifting: The DC vacuum system works with overhead lifting equipment to handle large insulating glass units without requiring a trailing AC power cable.
Find the Right Vacuum Glass Lifter for Your Application
Whether you handle raw glass, insulating glass, curtain wall glass, or photovoltaic glass, we can configure a manual, motorized, pneumatic, or hydraulic vacuum glass lifter around your panel dimensions, load weight, tilting requirements, operating frequency, and existing crane system. Our lifters can be integrated with overhead cranes, suspension cranes, and free-standing jib cranes to improve handling efficiency, reduce manual effort, and minimize the risk of glass damage. Contact us today for a tailored glass handling solution and quotation.
