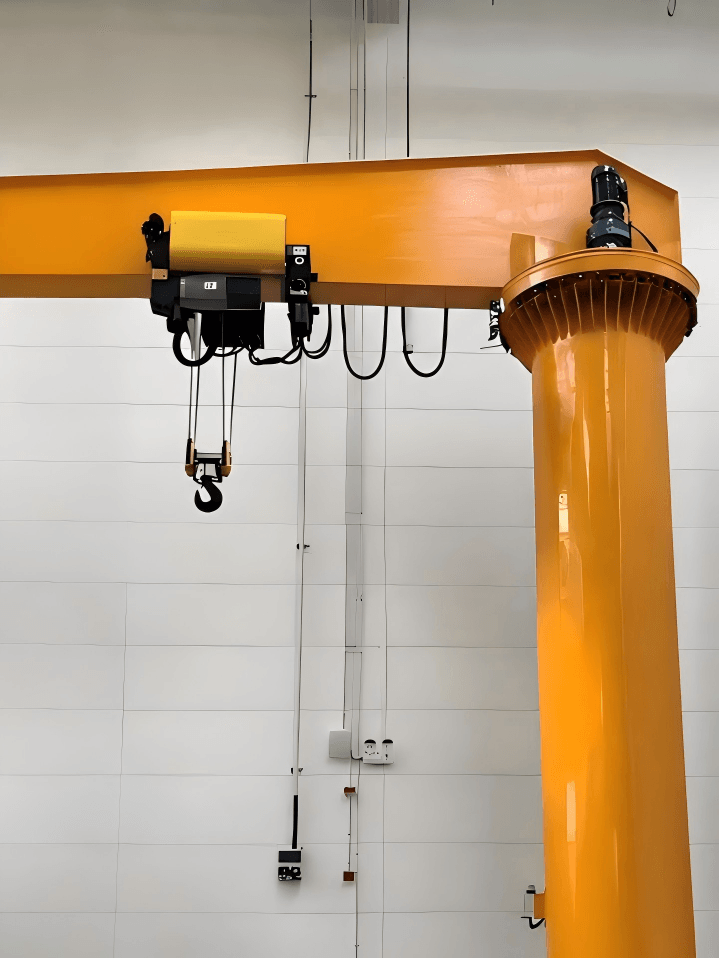

FEM Standard Jib Crane is a high-performance lifting solution designed for demanding industrial applications. Featuring European-optimized structural design, premium hoist systems, and advanced variable frequency control, it delivers smooth operation, precise positioning, and reliable performance under high-frequency working conditions.
With flexible installation options and A5 duty classification, it is ideal for automotive manufacturing, CNC machining, assembly lines, and precision production environments.
FEM Standard Jib Crane Specification
- Lifting Capacity: 0.5–10 t
- Jib Length: 4–8 m
- Lifting Height: 3–12 m
- Rotation Angle: 360°
- Duty Class: A5
- Power Supply: 220–480 V, 50/60 Hz, 3 Phase AC
- Control Method: Pendant Control / Remote Control
Hoist Options Available for FEM Standard Jib Crane
- The lifting capacity is for medium loads (0.5-5t).
- Lifting height is relatively low (typically ≤4 m).
- Space is limited and a compact hoist is preferred.
- A lightweight and cost-effective lifting solution is desired.
- Designed for medium to heavy-duty applications (5-10t).
- Suitable for higher lifting heights
- Stable lifting with high efficiency
- Ideal for larger loads and demanding industrial environments
3 Types of FEM Standard Jib Cranes

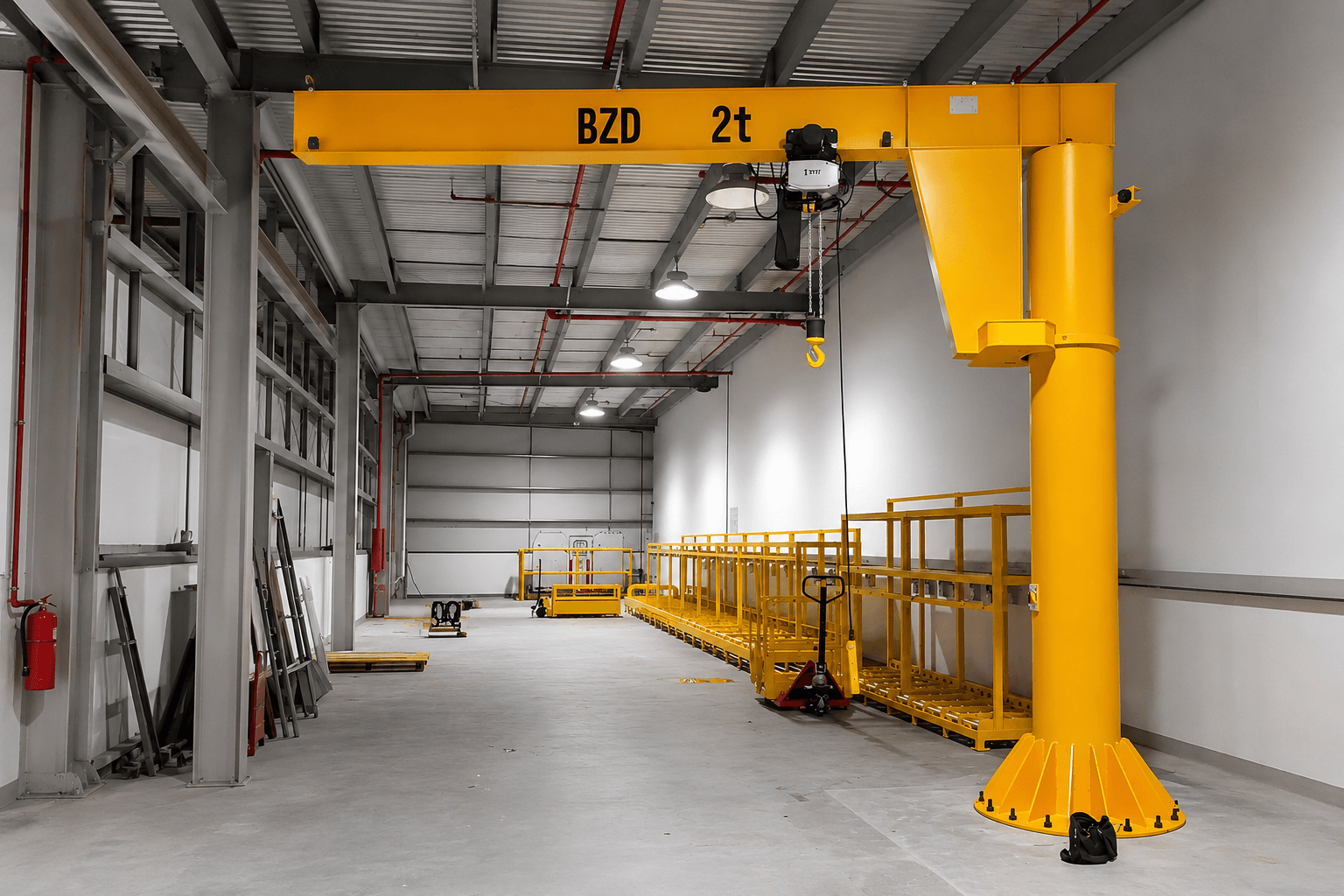

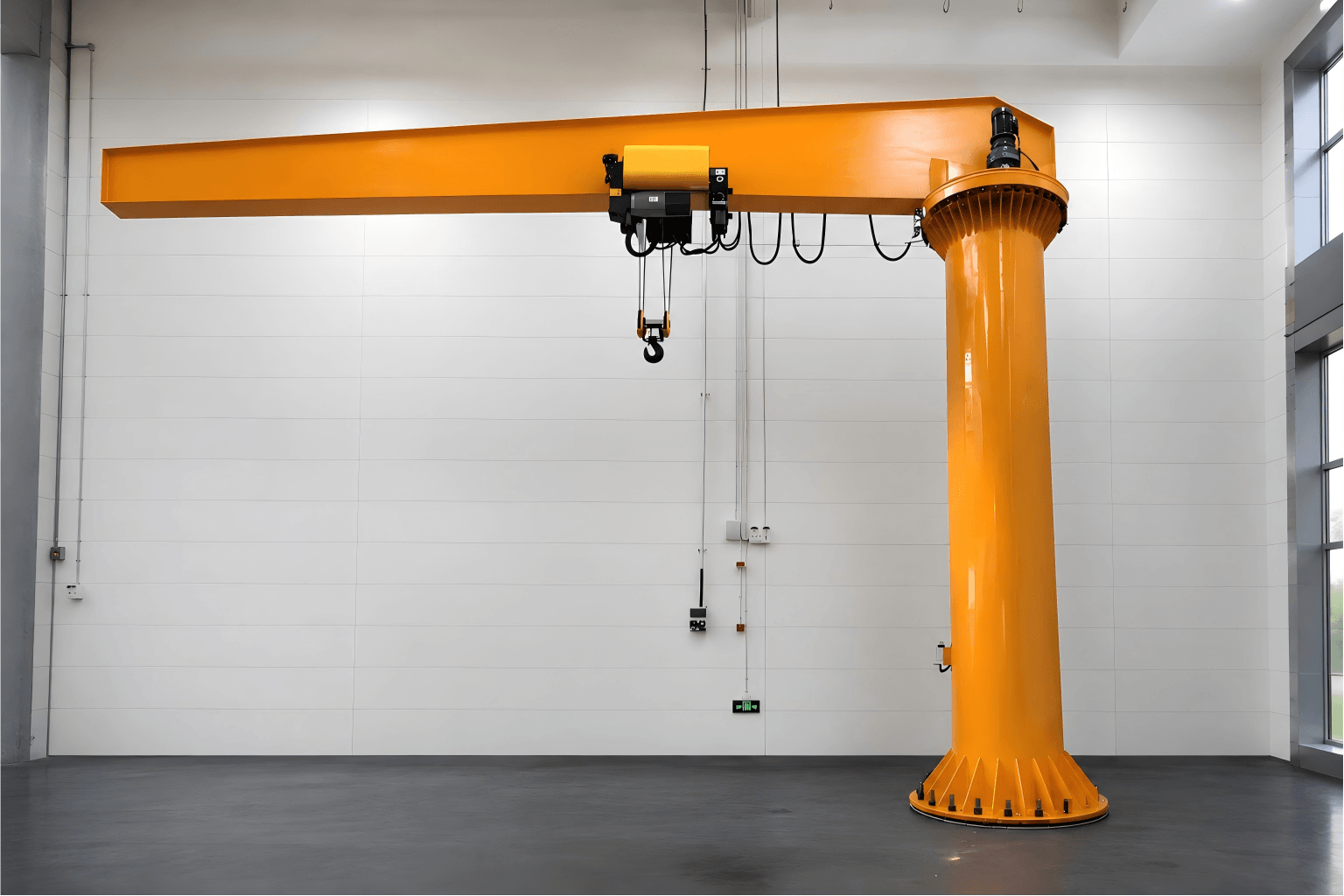

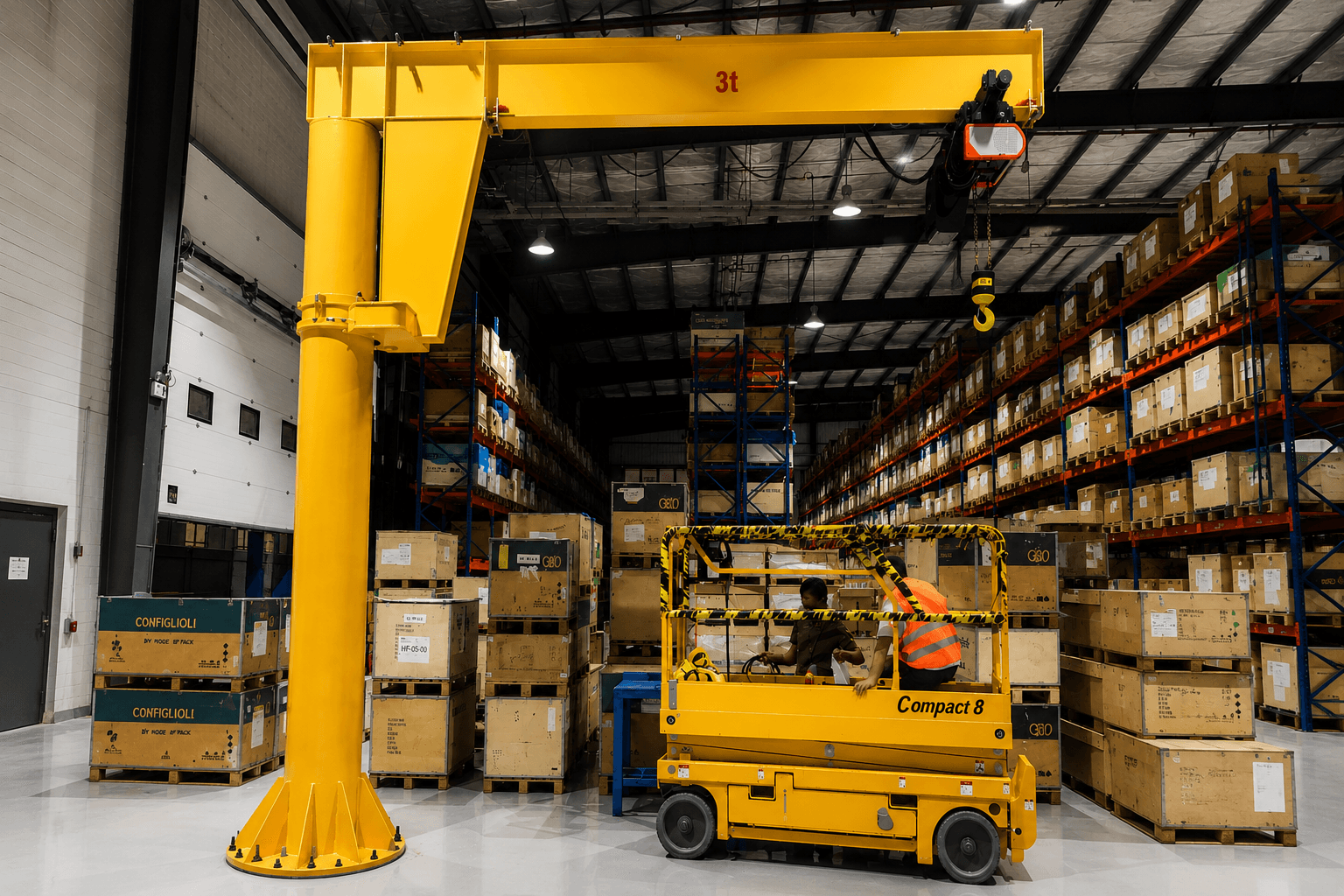

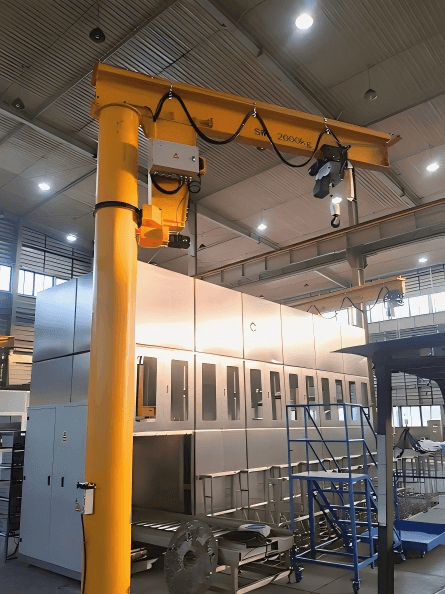

FEM Standard Free Standing Jib Crane
Core Features:
- Floor-mounted independent structure
- No requirement for existing building structure• 360° rotation available
- Wide working coverage
Main Advantages:
- Flexible installation location
- High structural stability
- Suitable for higher load capacity applications
Typical Applications:
- Production Lines
- CNC Machining
- Assembly Workstations
- Maintenance Areas

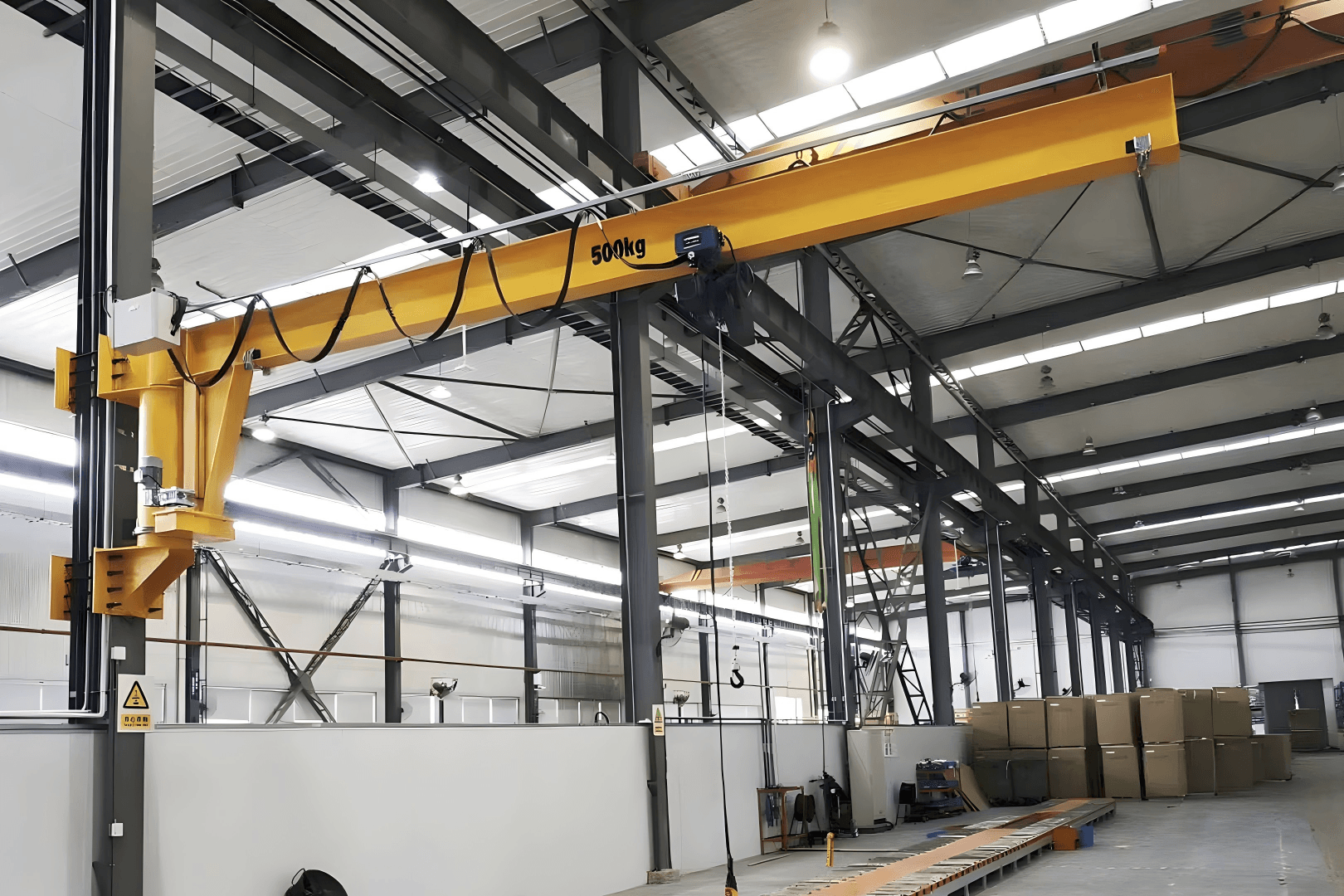

FEM Standard Wall Mounted Jib Crane
Core Features:
- Mounted on walls or columns
- No floor space occupation
- Fixed working radius
- 180°/270° rotation options
Main Advantages:
- Saves valuable floor space
- Easy integration with existing workstations
- Cost-effective lifting solution
Typical Applications:
- Machine Loading & Unloading
- Assembly Stations
- Workshops
- Maintenance Areas

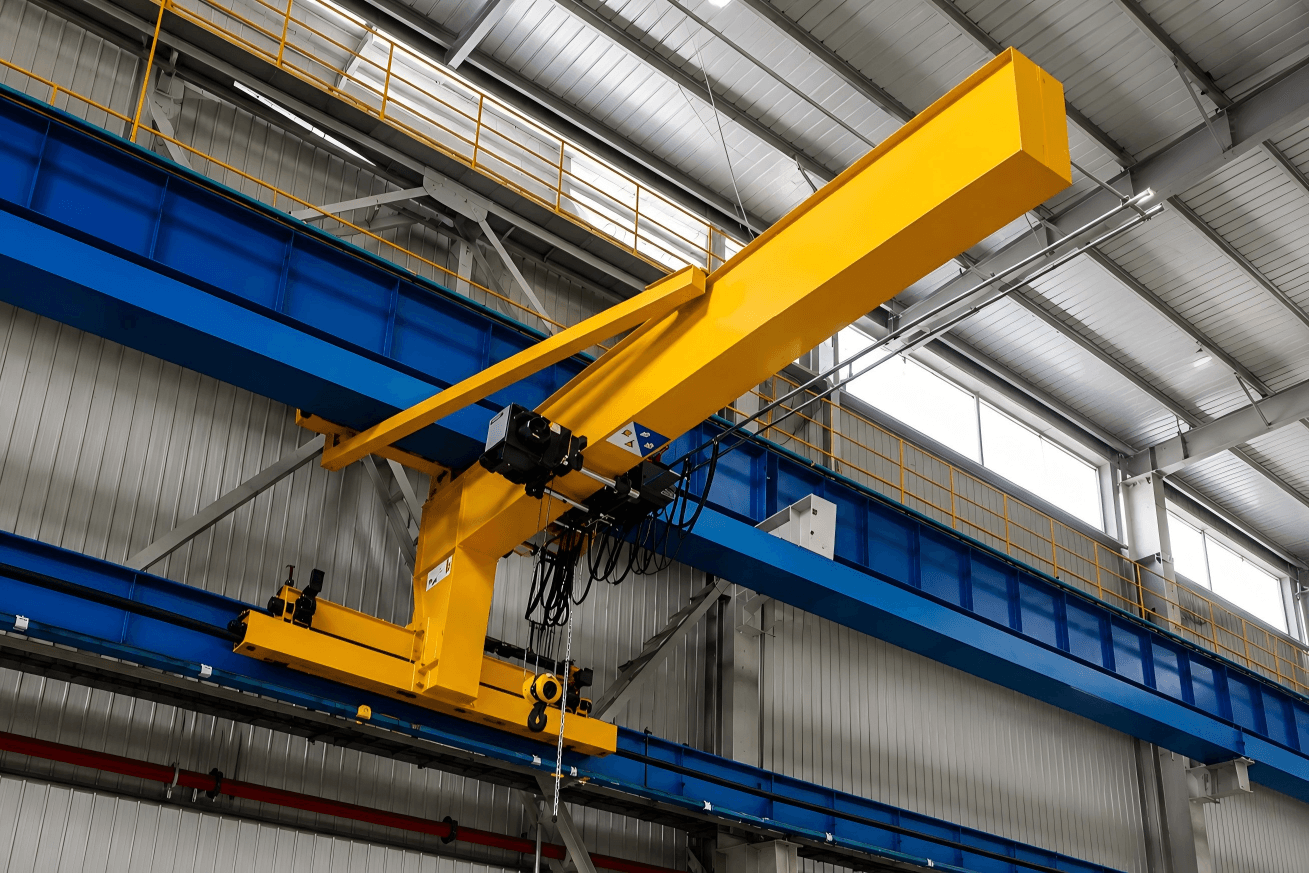

FEM Standard Wall Travelling Jib Crane
Core Features:
- Wall-mounted runway system
- Jib crane moves horizontally along the track
- Covers multiple working positions
- Combines travelling and slewing movement
- 180° slewing jib arm
Main Advantages:
- Expanded working area
- One crane serves multiple stations
- Improves production line flexibility
Typical Applications:
- Long Production Lines
- Large Assembly Areas
- Manufacturing Workshops
- Multi-Station Work Cells
Typical Applications of FEM Standard Free Standing Jib Cranes
FEM Standard Free Standing Jib Cranes are widely used in warehouses and logistics centers for pallet handling, cargo loading, order picking, and equipment maintenance. Their smooth slewing motion and precise positioning improve material flow while reducing manual handling and forklift traffic.

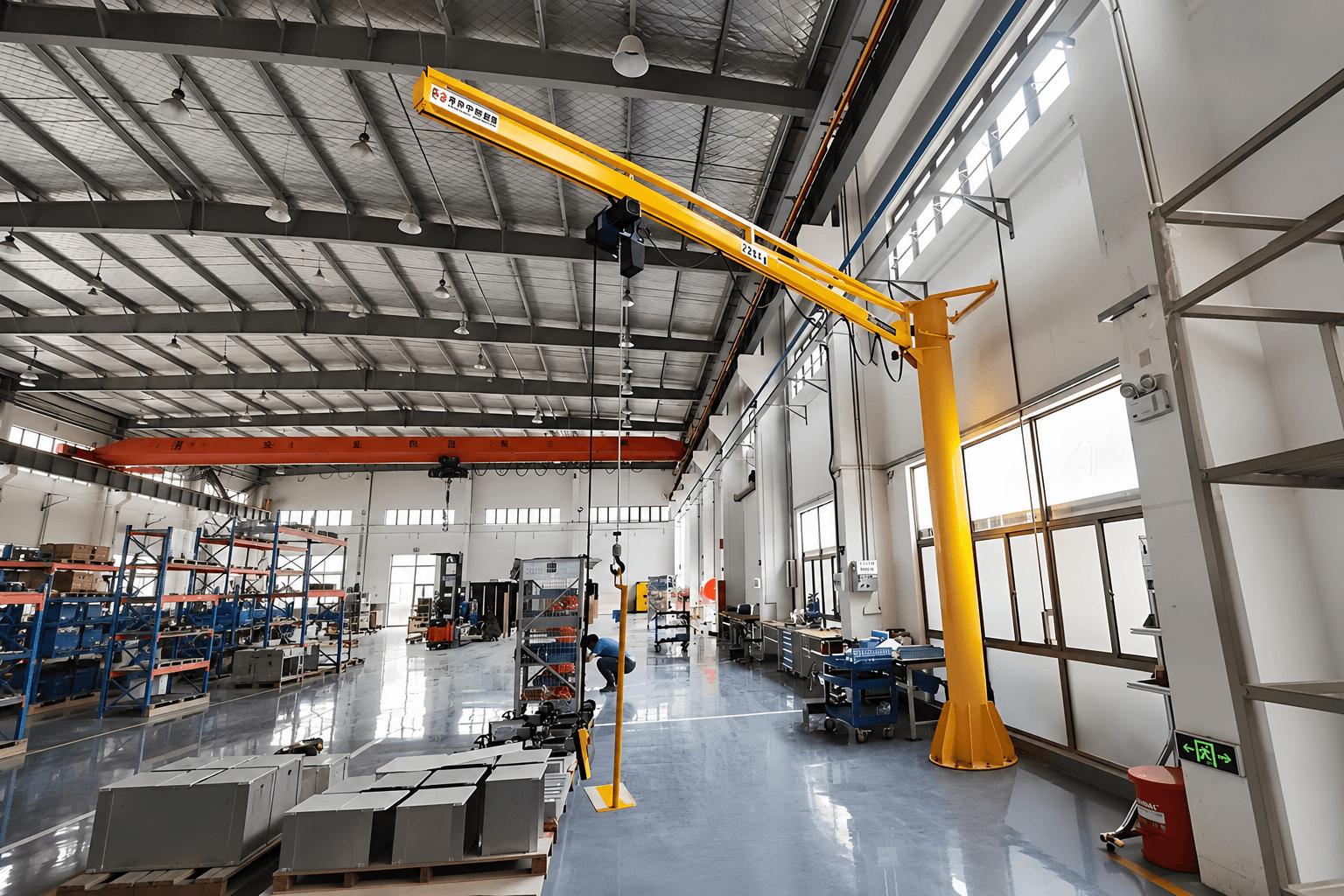

Installed beside production lines or assembly stations, FEM Standard Jib Cranes provide efficient lifting for components, tools, and finished products. Independent operation minimizes production interruptions while improving workflow efficiency and operator safety.

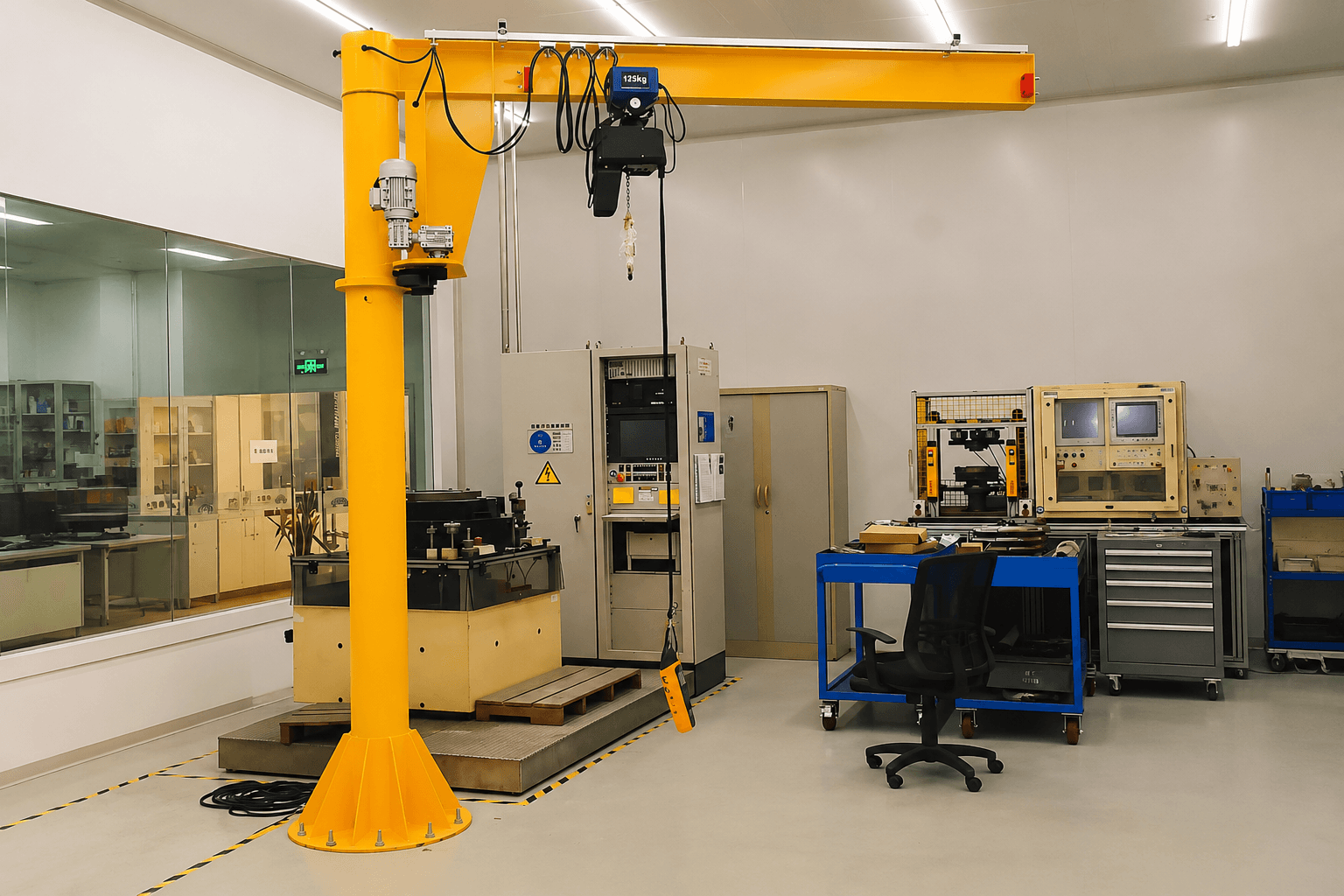

With smooth operation and precise load positioning, FEM Standard Jib Cranes are ideal for CNC machining centers, tooling workshops, and maintenance areas. They enable accurate handling of precision components while protecting valuable equipment from impact and vibration.
Optimize Your Material Handling with a FEM Standard Jib Crane
Whether you need a free standing jib crane, wall mounted jib crane, or wall travelling jib crane, ZKHOIST delivers reliable lifting solutions engineered to FEM standards. With precise load positioning, smooth operation, and durable European-style design, our jib cranes improve productivity while reducing operator effort and maintenance costs.
Every project has unique lifting requirements. Our engineering team provides customized solutions based on your lifting capacity, jib length, lifting height, rotation angle, duty class, and installation environment, ensuring the crane is perfectly matched to your application.
Contact us today to get expert advice, a customized solution, and a competitive quotation for your next material handling project.
