Heavy Duty Sheet Metal Vacuum Lifters Product Introduction

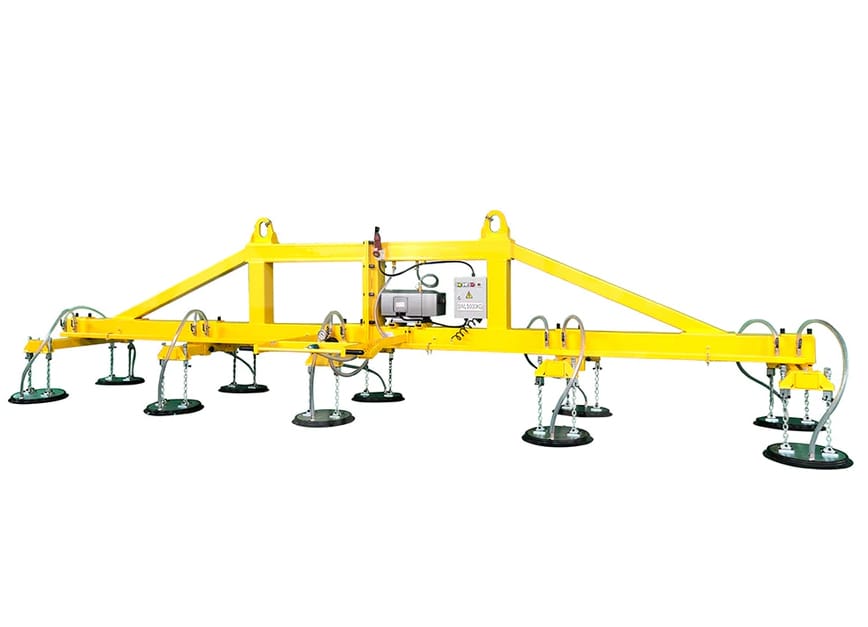

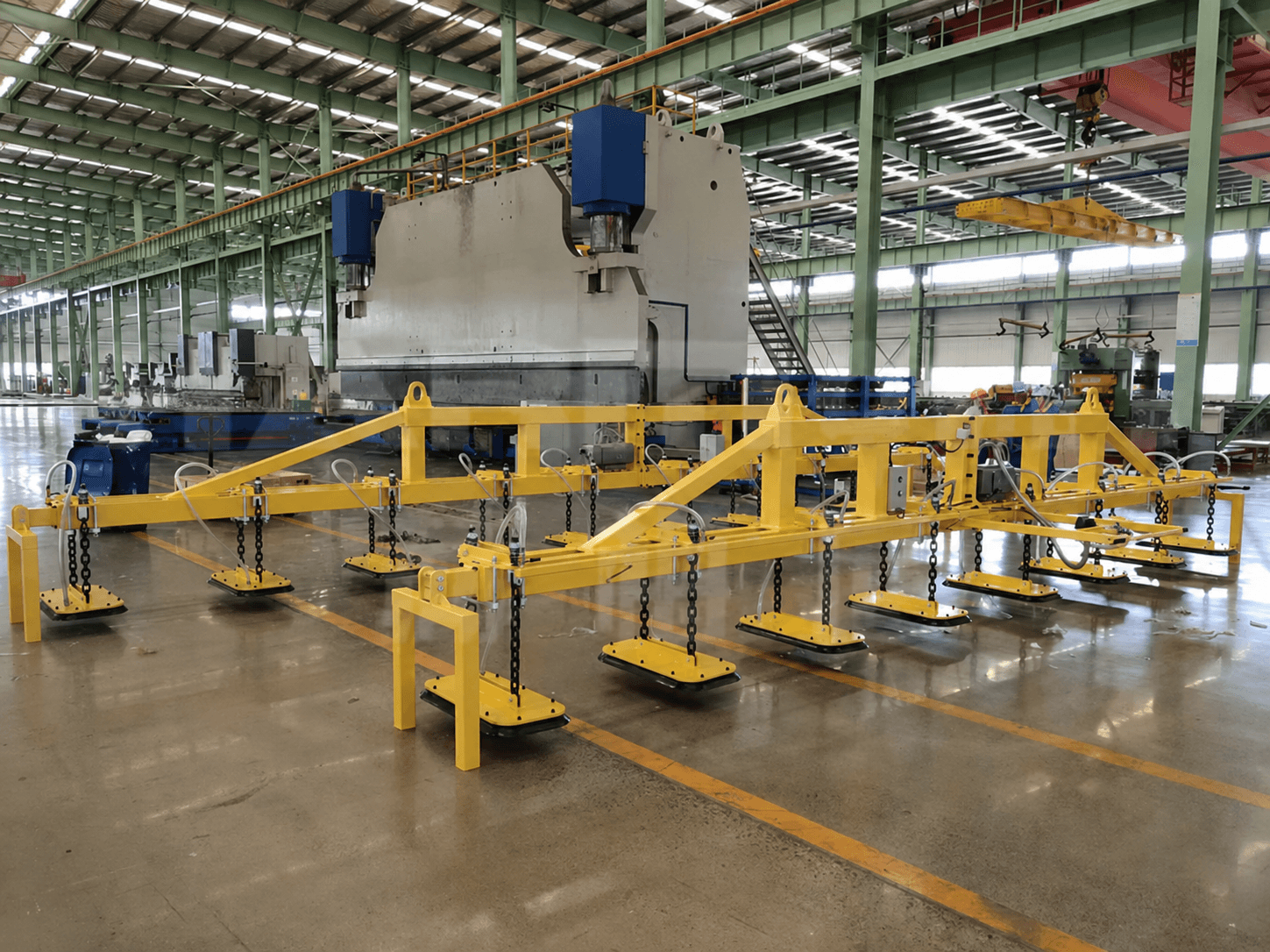

The heavy duty sheet metal vacuum lifters are purpose-built for heavy plate handling at 3 tonnes and above, with each unit custom-configured to the application rather than picked from a fixed catalog. Large-format sheets demand large-scale vacuum capacity. The heavy duty sheet metal vacuum lifter spans 3,000 KG to 20,000 KG across its configuration range. It scales from mid-weight fabrication plates to the oversized sheets and structural sections that define heavy steel mill workflows.
Heavy duty sheet metal vacuum lifters pair high-flow vacuum pumps with multi-circuit vacuum systems to deliver consistent, deep holding power across the full pad array, even on wide-span plates where load distribution is uneven. The frame is fabricated from national-standard square tube steel, providing the structural rigidity needed for safe, stable lifting at these weight classes. For operations where a power interruption would mean a stalled production line, or a safety risk. An optional UPS backup power system maintains holding vacuum for over six hours, keeping the load secure long after primary power is lost.
Heavy Duty Sheet Metal Vacuum Lifters Advantage
- Plate Size up to 40 m × 20 m: Multi-pad array and structural frame are configured per application so oversized sheets lift evenly and stably — dimensions conventional lifters cannot manage.
- 400 °C High-Temperature Rating: Hot plates straight from the cutting or plasma bed are lifted immediately. No cool-down wait, no bottleneck.
- Imported Vacuum Pump & Valve Assembly: High-flow pumps paired with precision control valves deliver the throughput and reliability that 50-tonne continuous duty demands.
- Application-Specific Configuration: Pad type, pad count, array layout, frame geometry, and power setup are all matched to your actual workpiece — not picked from a fixed catalog. Dedicated pad compounds for stainless steel and aluminum prevent surface marking.
- Accumulator + Pressure Monitoring: Maintains holding vacuum during momentary power loss. If pressure approaches the safety threshold, the system alarms and locks release until safe vacuum is confirmed.
- ISO 9001 + CE Certified: Manufactured under ISO 9001 quality management. CE certified for EU safety, health, and environmental compliance.
Heavy Duty Sheet Metal Vacuum Lifters Technical Parameter
| Type | Maximum Load | External Dimension(mm) | Vacuum Diameter(mm) | Vacuum Number | Power System | Control Mode | Net Weight |
|---|---|---|---|---|---|---|---|
| HP-BLZ3000-16S | 3000kg | 6000×1200 | Φ300 | 16pcs | DC12V | Manual/Remote control | 600kg |
| HP-BLJ3000-16S | 3000kg | 6000×1200 | Φ300 | 16pcs | AC208-460V (±10%) | Manual/Remote control | 600kg |
| HP-BLJ5000-10S | 5000kg | 6000×1200 | Φ450 | 10pcs | AC208-460V (±10%) | Manual/Remote control | 1000kg |
| HP-BLJ10T-10S | 10T | （6000+6000）×2000 | 850×450 | 10pcs | AC208-460V (±10%) | Manual/Remote control | 2800kg |
| HP-BLJ20T-20S | 20T | （6000+6000+6000）×2000 | 850×450 | 20pcs | AC208-460V (±10%) | Manual/Remote control | 5500kg |

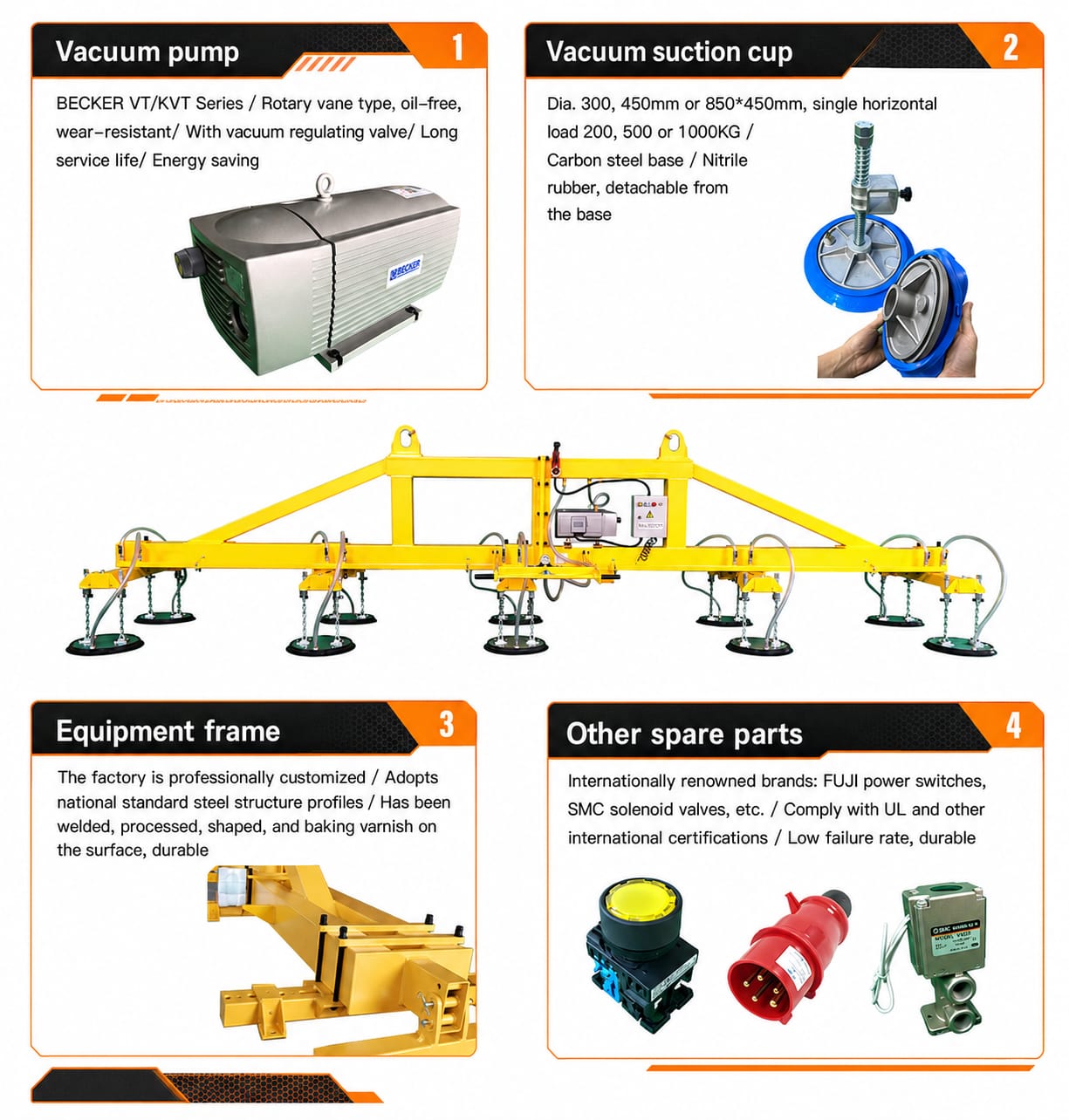

Heavy Duty Sheet Metal Vacuum Lifters Main Components
Heavy Duty Sheet Metal Vacuum Lifters Applications
Heavy Duty Sheet Metal Vacuum Lifters Used in Glass Handling – 3000KG Capacity
- 40 Pad Vacuum Lifters: Employs 40 pad vacuum lifters to distribute force evenly, preventing glass breakage during overhead crane. Assisted transport of 3000KG oversized glass sheets.
- Scratch-Free Single-Operator Control: Soft vacuum pads eliminate surface scratches, allowing a single operator to manage glass vacuum lifters for high-frequency, damage-free loading with ease.

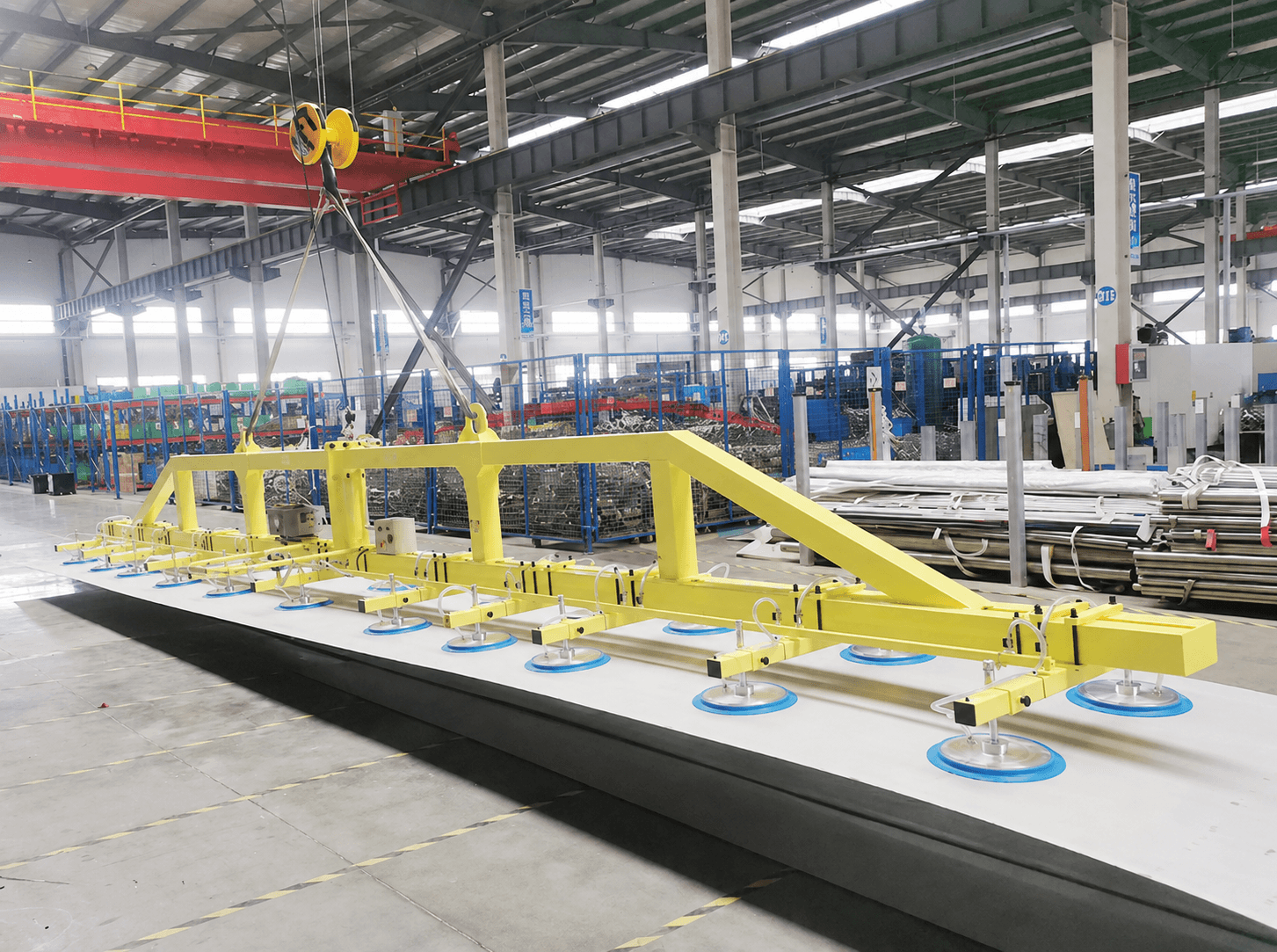

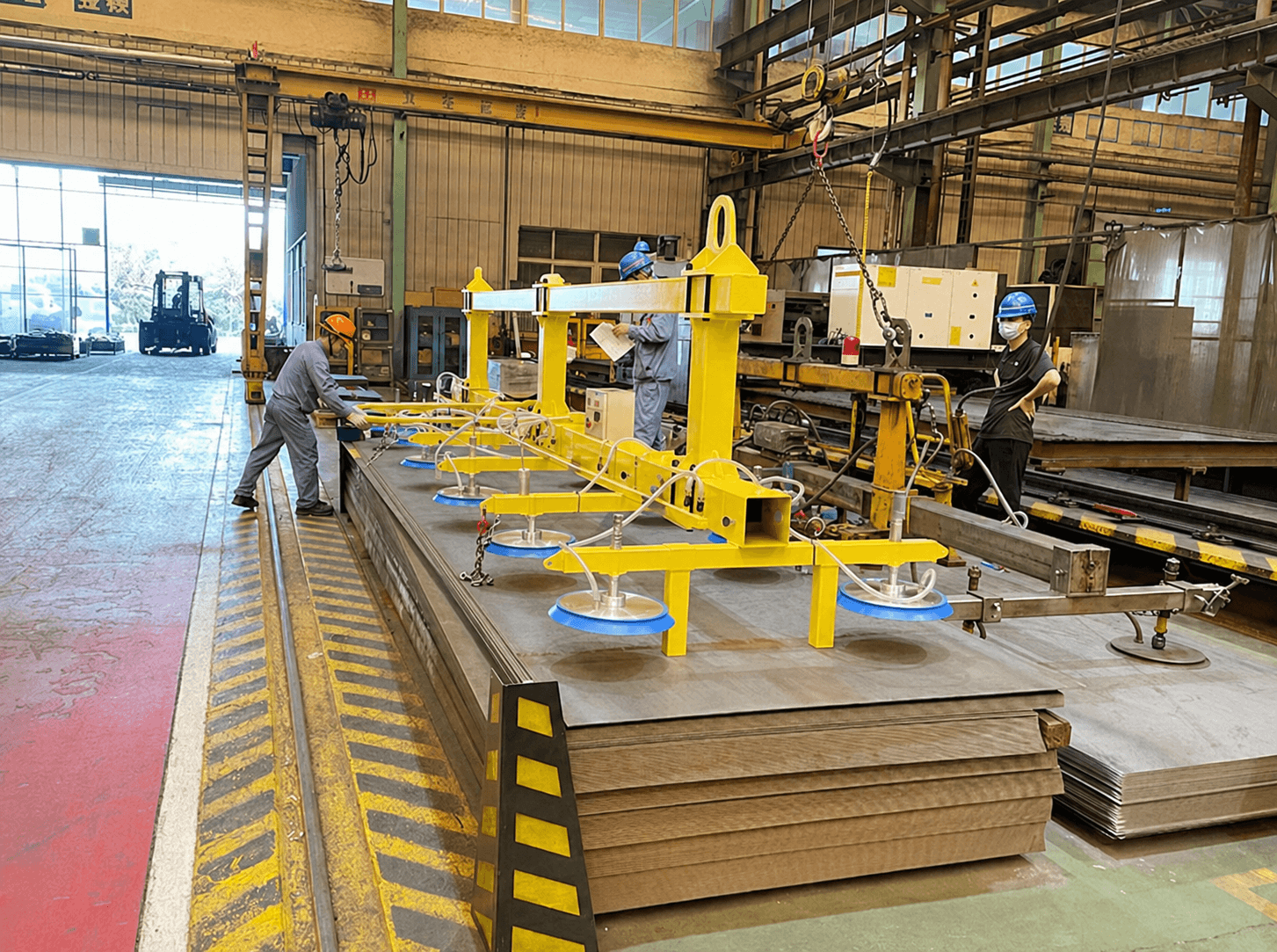

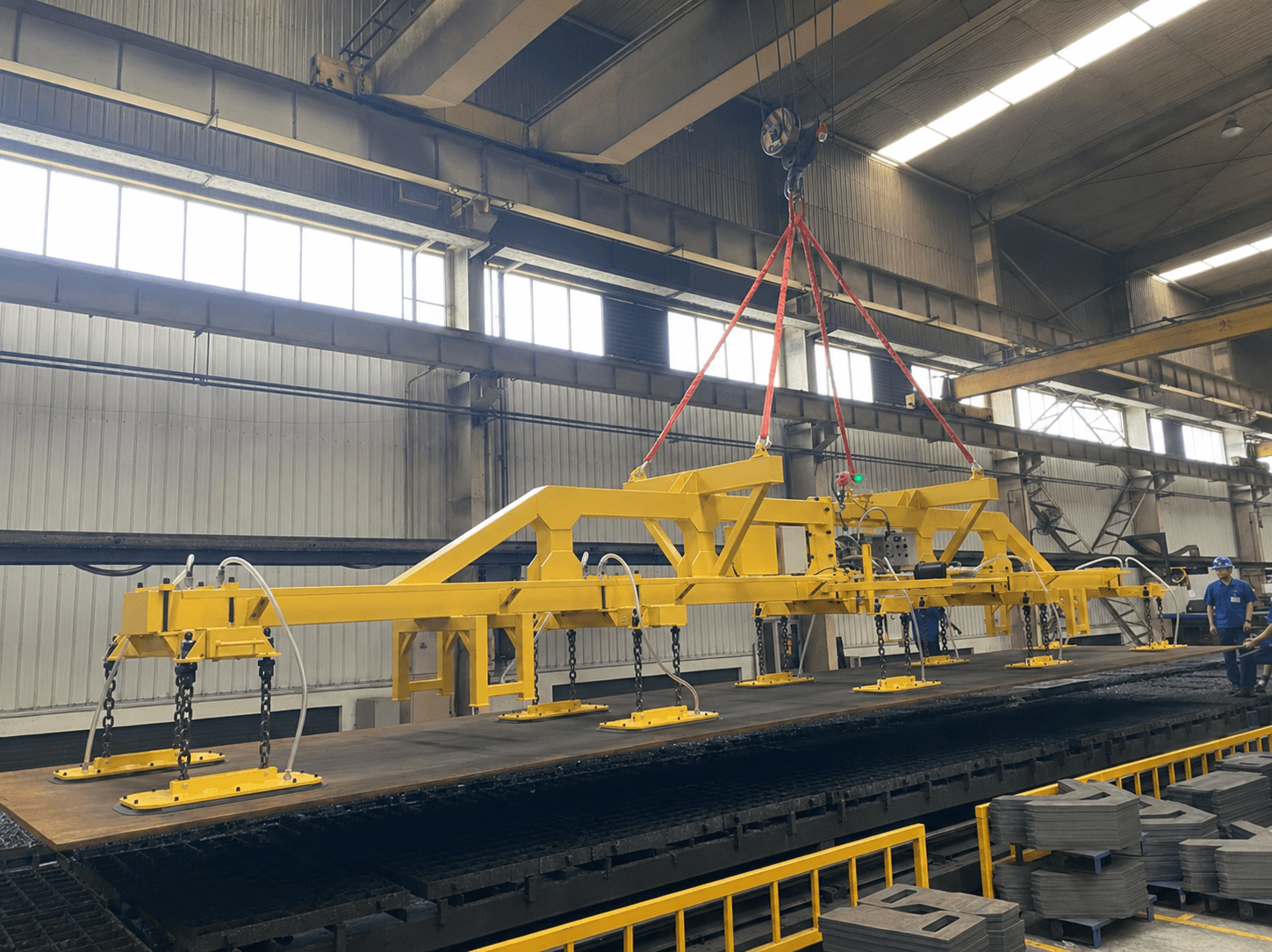

Heavy Duty Sheet Metal Vacuum Lifters Used in Steel Plate Handling – 12000KG Capacity

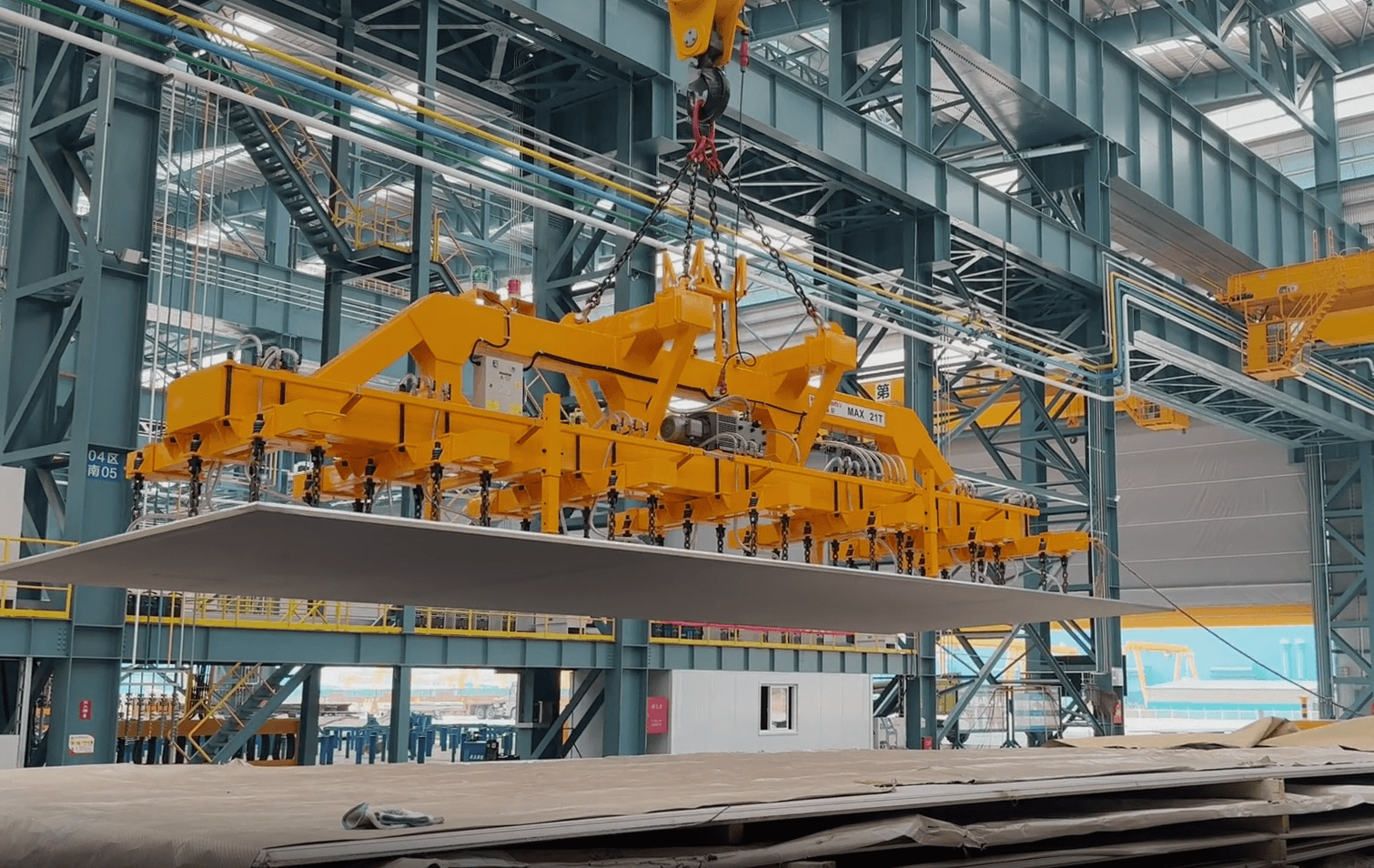

- 12 Pad Vacuum Lifters: Features 12 large vacuum pads mounted on a reinforced double-beam frame. Used with an overhead crane for stable horizontal lifting and precise handling of steel plates weighing up to 12,000KG.
- Efficient Steel Plate Handling: Suitable for single-sheet separation, loading and unloading, stacking, cutting-line feeding and transfer between production stations.

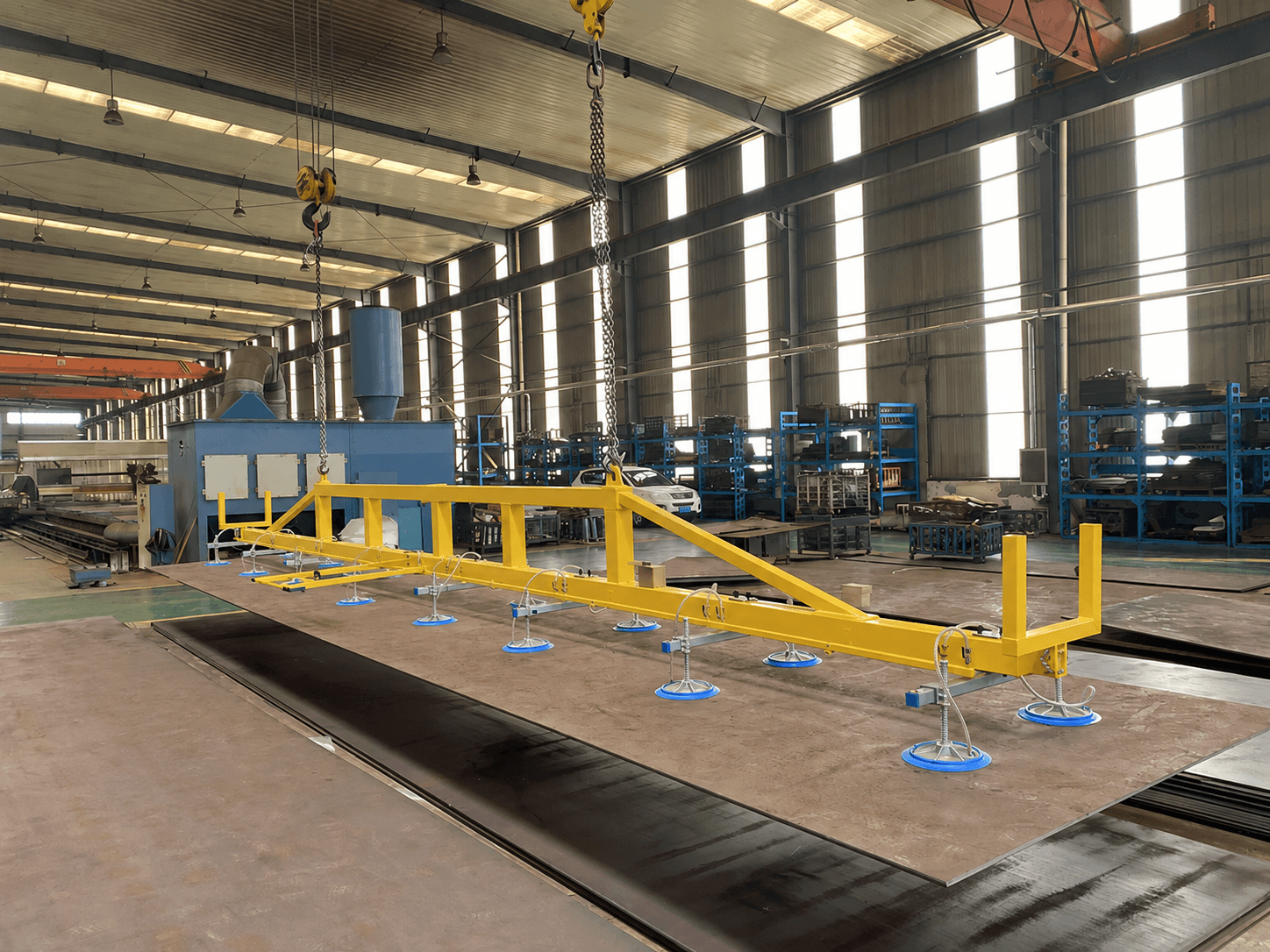

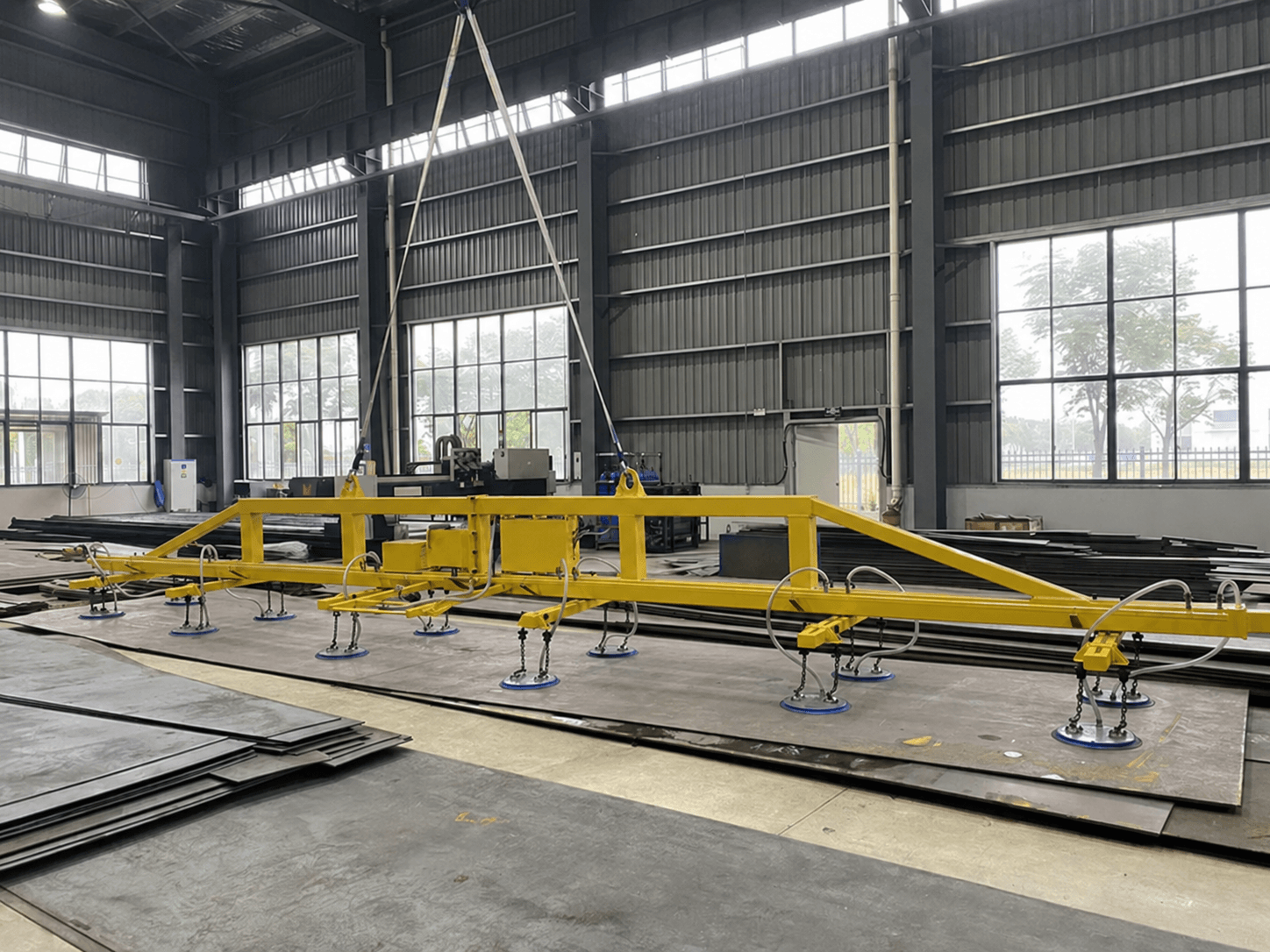

Heavy Duty Sheet Metal Vacuum Lifters in Pipe Manufacturing – 14,000KG Capacity
- 22 Pad Vacuum Lifters: Features 22 large vacuum pads distributed along an extended reinforced frame, providing balanced suction and stable horizontal lifting of steel plates weighing up to 14,000KG.
- Efficient Plate Feeding and Transfer: Ideal for single-sheet separation, plate loading and unloading, production-line feeding, stacking and transfer between pipe-forming processes.

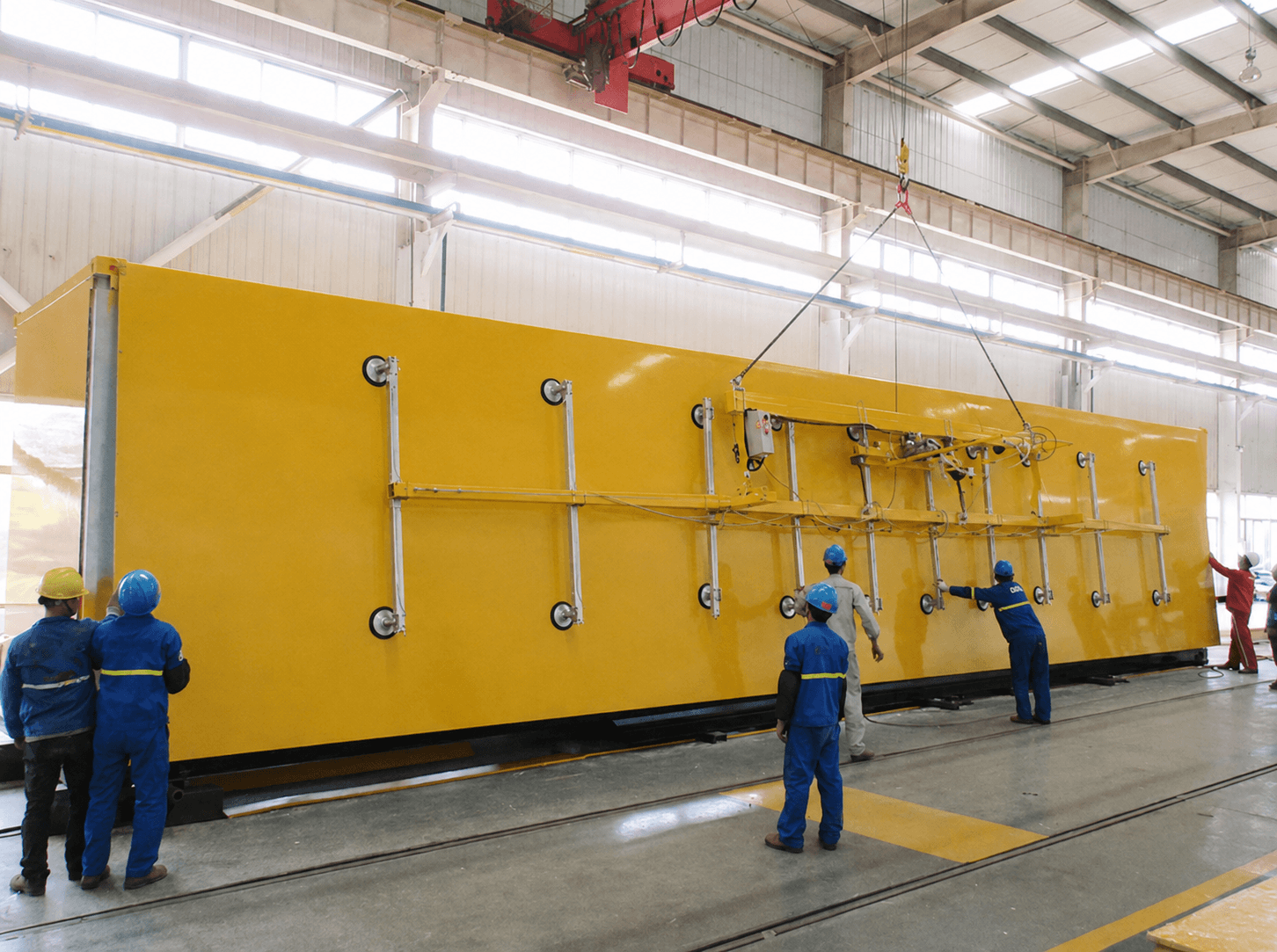

Heavy Duty Sheet Metal Vacuum Lifters Used in Special-Purpose Vehicle Manufacturing – 2,000KG Capacity
- 20 Pad Vacuum Lifters: Features 20 evenly distributed vacuum pads on an extended adjustable frame, providing balanced suction for vertical handling of large vehicle body panels weighing up to 2,000KG.
- Designed for Special-Purpose Vehicle Production: Engineered for handling trailer sidewalls, truck body panels, compartment panels and other large-format sheet-metal components.

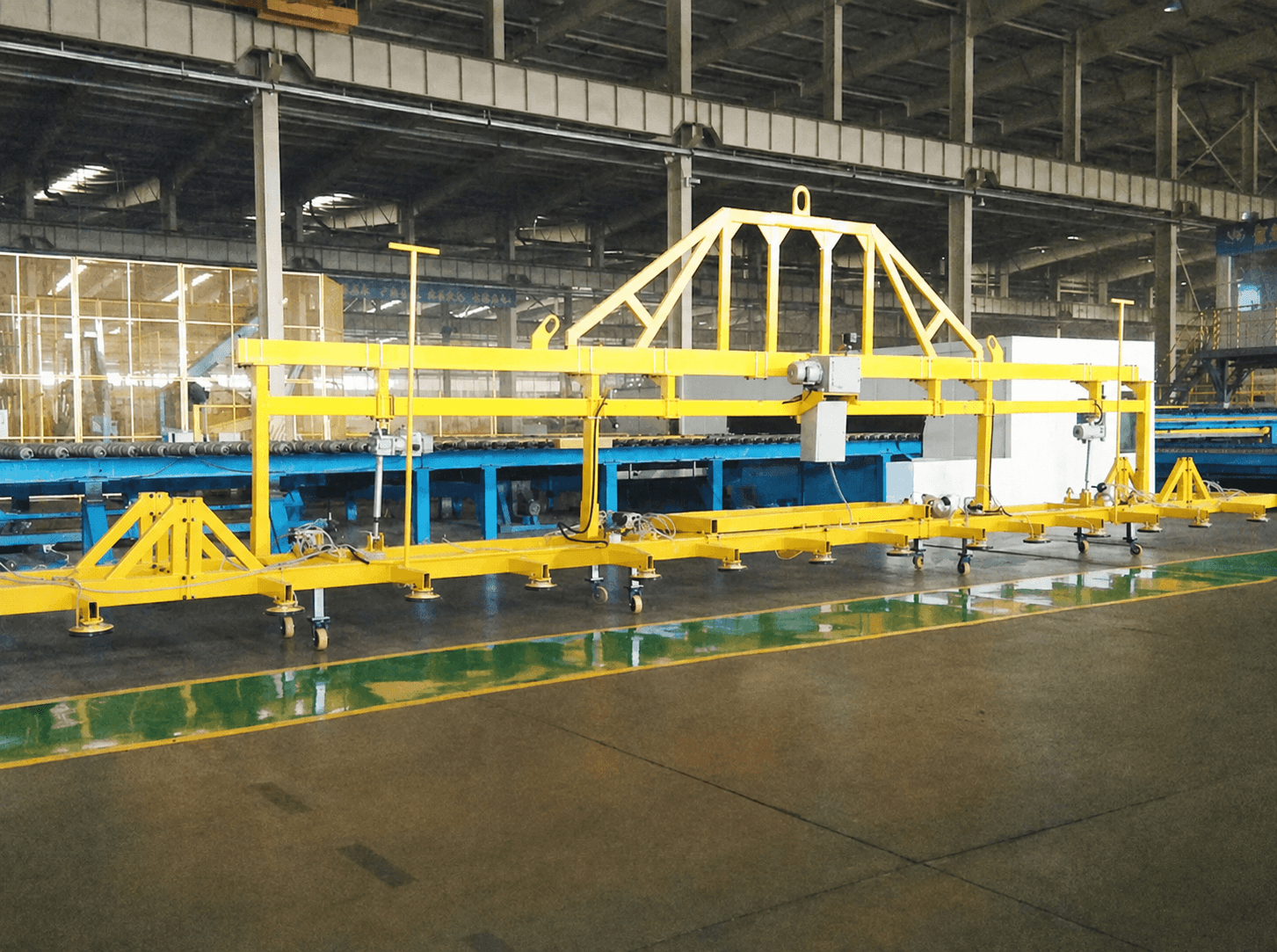

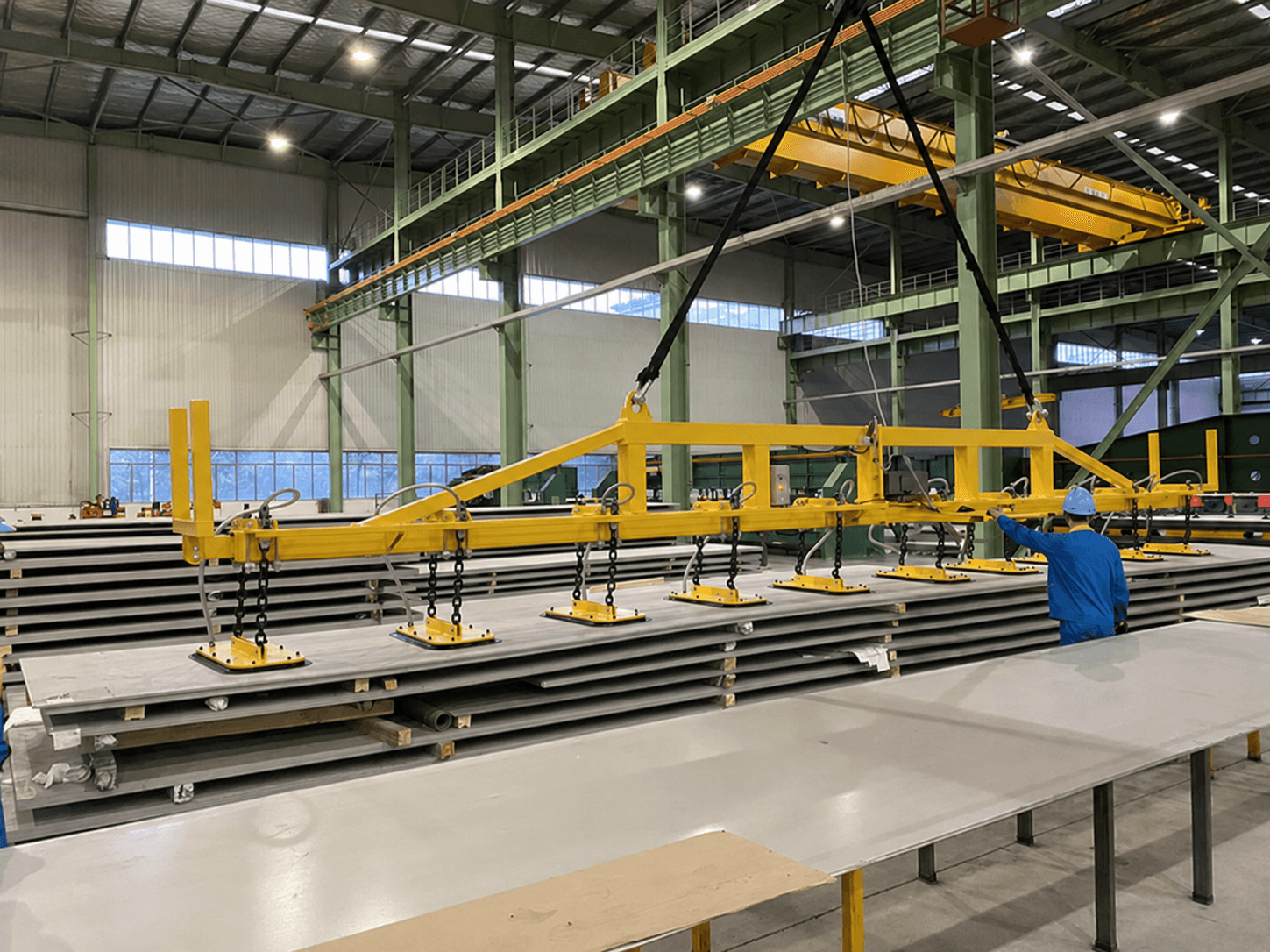

Heavy Duty Sheet Metal Vacuum Lifters Used in Stainless Steel Plate Horizontal Handling – 8,000KG Capacity
- 8 Pad Vacuum Lifters: Features 8 rectangular vacuum pads distributed along a reinforced extended frame, ensuring balanced suction and stable horizontal lifting of stainless steel plates weighing up to 8,000KG.
- Safe, Surface-Friendly Handling: AC-powered vacuum operation enables efficient plate separation, loading, stacking and production-line transfer while minimizing scratches and mechanical damage.

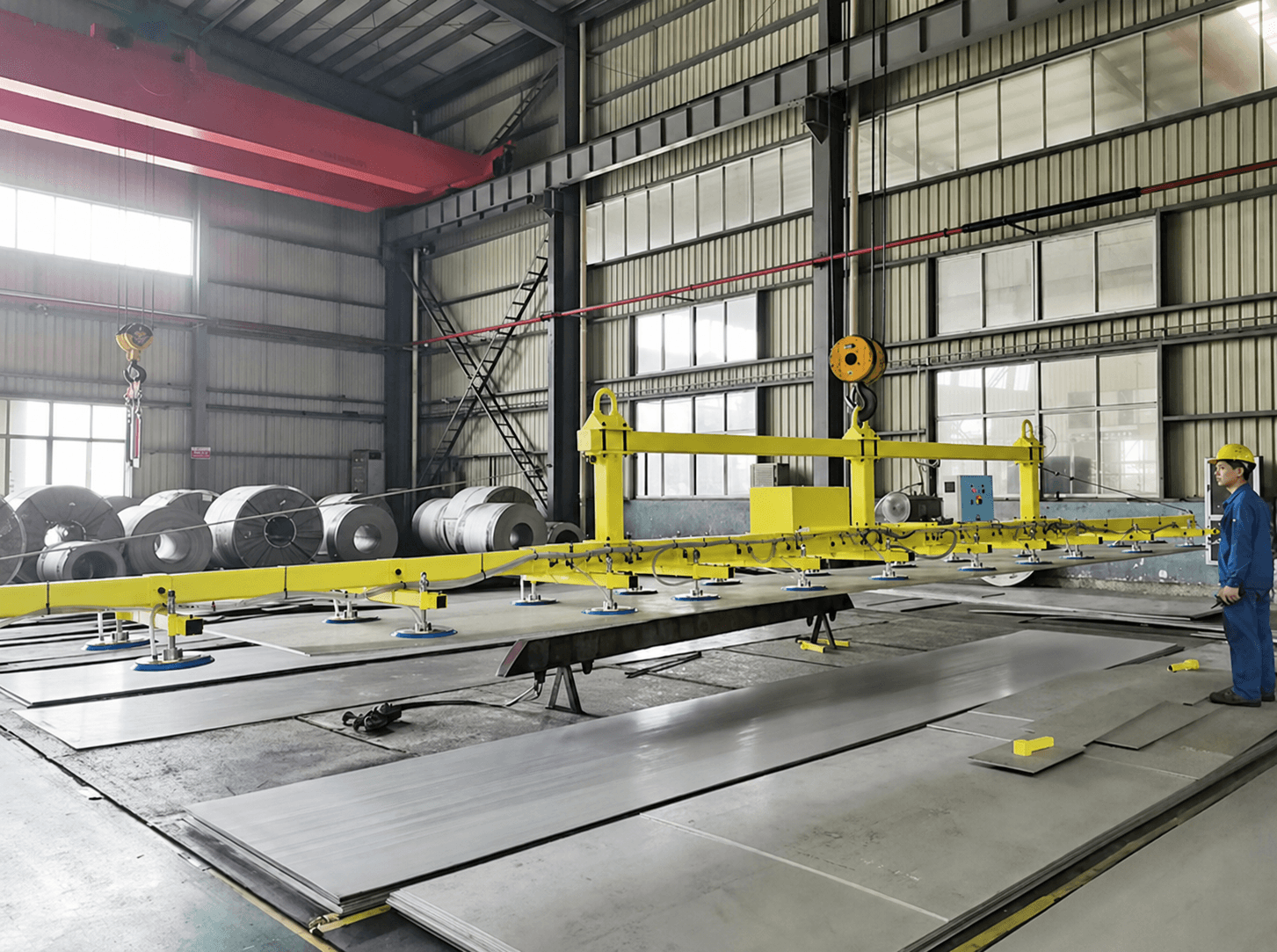

Heavy Duty Sheet Metal Vacuum Lifters Used in Pharmaceutical and Chemical Equipment Manufacturing – 14,000KG
- 22 Pad Vacuum Lifters: Features 22 vacuum pads distributed along an extended reinforced frame, providing balanced suction and stable horizontal lifting of large stainless steel plates weighing up to 14,000KG.
- Designed for Pharmaceutical and Chemical Equipment: Ideal for handling stainless steel plates used to manufacture pressure vessels, reactors, storage tanks, process vessels and other large industrial equipment.
Smart Vacuum Handling Solutions for Safer, More Efficient Lifting
Heavy duty sheet metal vacuum lifters solves the gripping problem. But material flow doesn’t stop at the pickup point. That’s why our engineering scope extends beyond the lifter itself. Into how the load enters the station, how it’s positioned during transfer, and how the lifter communicates with the overhead crane or gantry it rides on.
On the vacuum side: pad compounds matched to surface material, multi-circuit architecture so one seal break won’t cascade, optional UPS backup holding 6+ hours, and configurations covering 500 kg to 20,000 kg across steel, aluminum, glass, and coated plate.
On the intelligent side: remote control with live vacuum-pressure readout, automatic lockout below safety threshold, and integration-ready signal interfaces for existing plant control systems. The lifter doesn’t just hold your sheet. It talks to the operator and the crane, and it refuses to release until conditions are safe.
If your shop is moving large-format or high-temperature sheets and your current handling method is holding back throughput — send us your workpiece parameters. We’ll return a configuration that covers the gripping, the power architecture, and the control logic.
