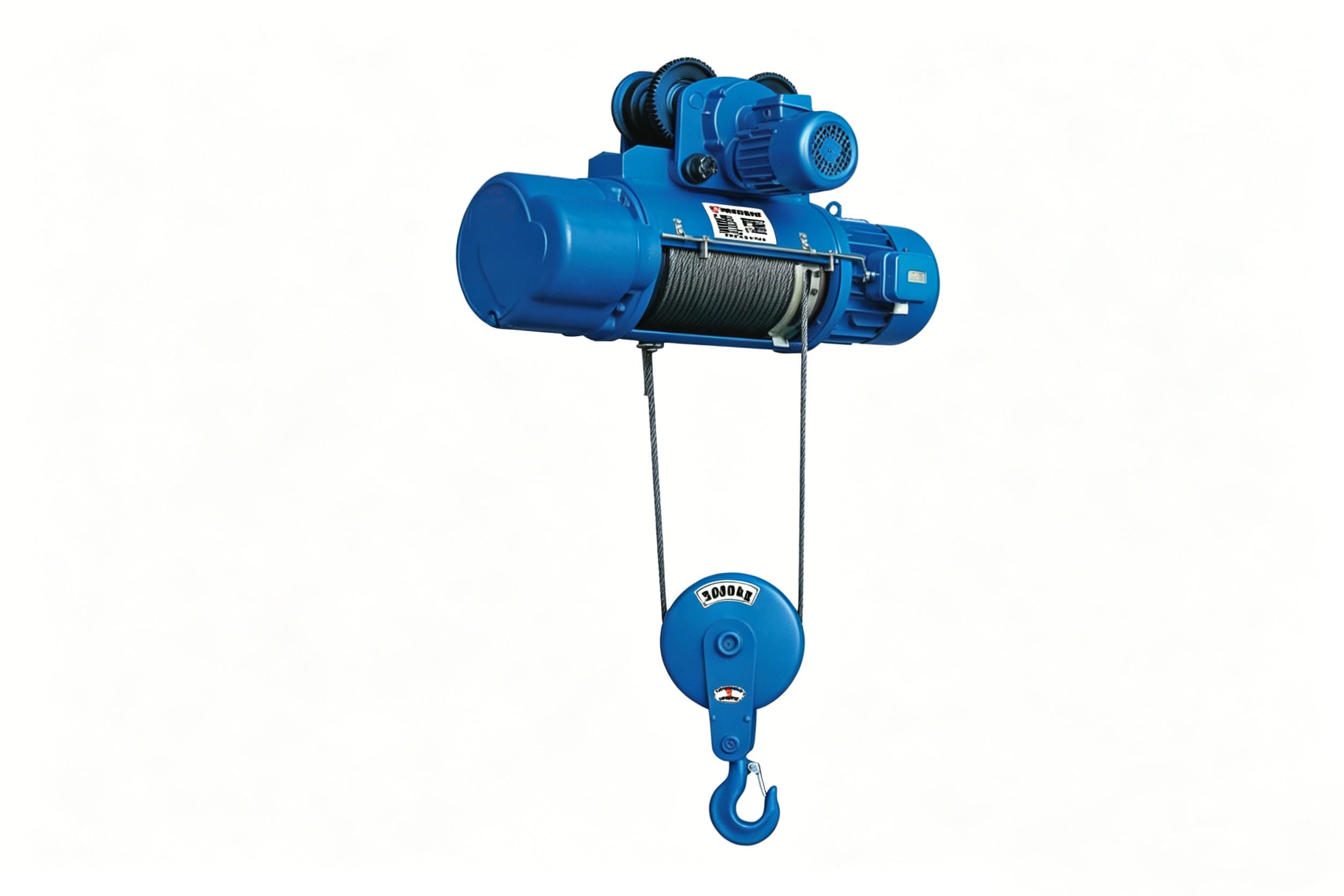

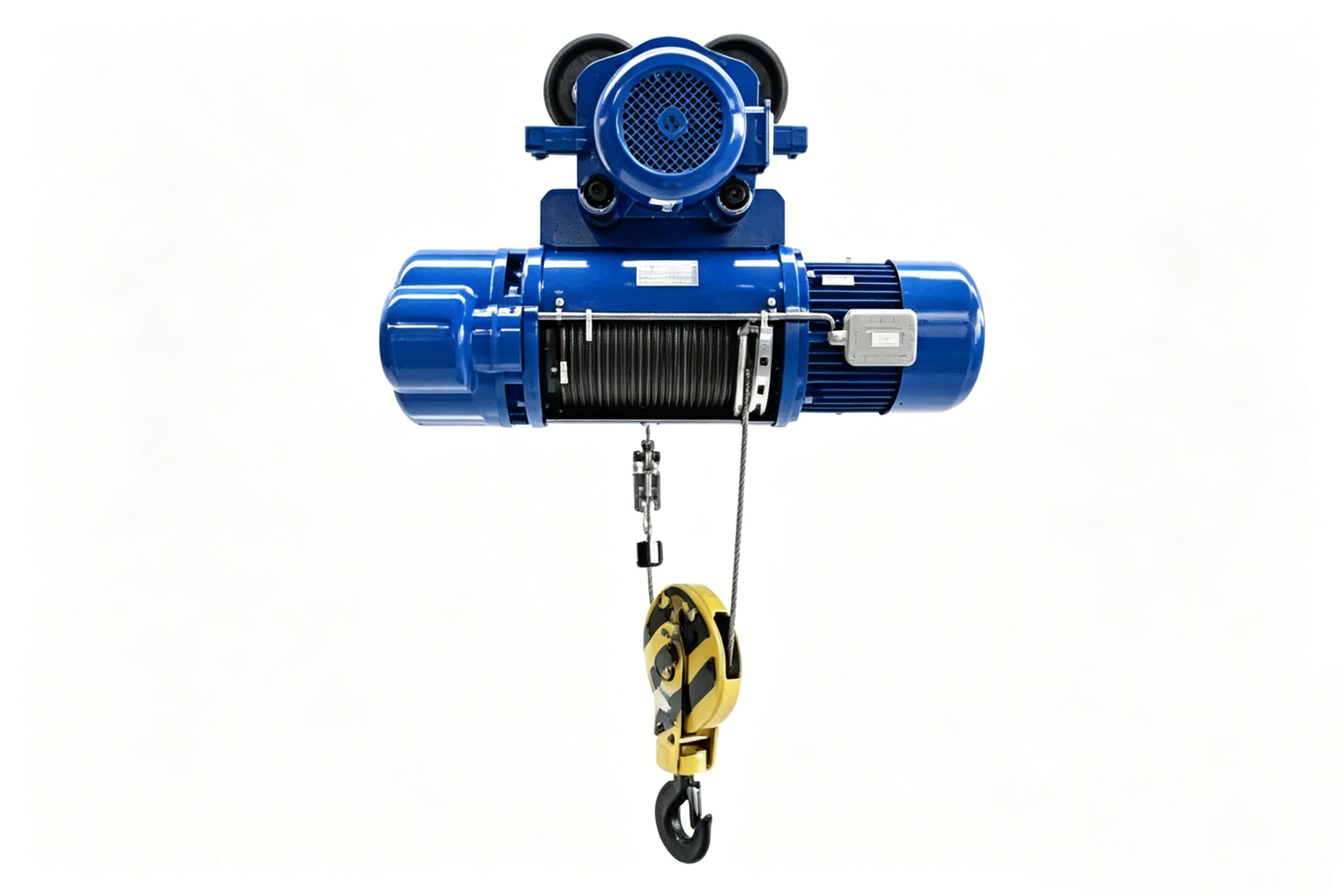

CD Single Speed Electric Wire rope hoists are lightweight and compact. They are economical, practical, efficient, and easy to maintain. The hoists are small in size, compact in structure, available in a variety of models and specifications. The CD Single Speed Electric Wire Rope Hoists can be installed on single girder cranes, overhead cranes, gantry cranes, and jib cranes. Therefore, they are widely used in factories, warehouses, docks, power plants, logging yards, and other places to improve labor efficiency and working conditions.
Price List of CD Single Speed Electric Wire Rope Hoists: Economical and practical

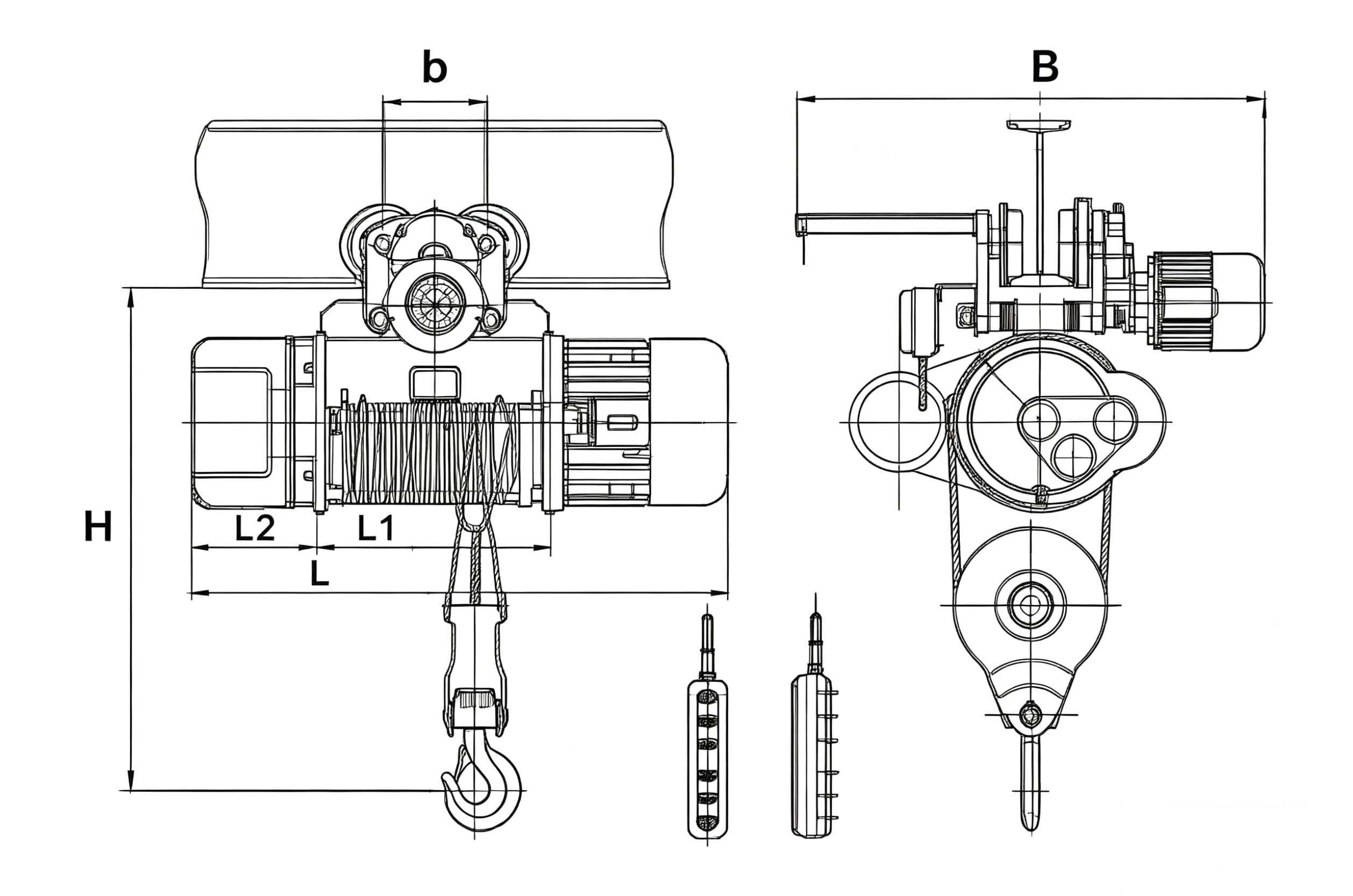

For more detailed information on the complete specifications, accurate reference prices, and corresponding technical parameters of our CD Electric Wire Rope Hoists, please refer to the following table which to help you quickly find the most suitable product for your needs.
| Kapacitet (ton) | Løftehøjde (m) | Løftekraft (kW) | Løftehastighed (m/min) | H(mm) | Pris (USD) |
|---|---|---|---|---|---|
| 0.25 | 3-9 | 0.4 | 8 | 423 | \ |
| 0.5 | 6-12 | 0.8 | 8 | 650 | \ |
| 1 | 6-30 | 1.5 | 8 | 667-767 | $589-$789 |
| 2 | 6-30 | 3 | 8 | 840-950 | $710-$945 |
| 3 | 6-30 | 4.5 | 8 | 954-1058 | $789-$1023 |
| 5 | 6-30 | 7.5 | 8 | 1120-1183 | $997-$1284 |
| 10 | 9-30 | 13 | 7 | 1055 | $1731-$2236 |
| 16 | 9-30 | 13 | 3.5 | 1055 | $2013-$2552 |
Tips: The above are some parameters and corresponding prices for the CD Single Speed Electric Wire Rope Hoists. For more specifications, please consult ZKHOIST ingeniører.
Product Features of CD Single Speed Electric Wire Rope Hoists
- Kompakt struktur, letvægts og lille størrelse: Easy to install and transport, suitable for space-constrained working environments.
- Smooth operation and simple operation: Constant lifting speed, suitable for general hoisting needs, and flexible control methods, supporting manual or remote operation.
- Høj alsidighed: Can be installed independently on I-beam rails, or used with electric single-girder, double-girder, cantilever, and gantry cranes.
- Praktisk vedligeholdelse og lang levetid: The reducer adopts hardened tooth surface transmission or a three-stage fixed-axis helical gear design; key components are heat-treated for wear resistance and durability.
- Bredt udvalg af anvendelser: Velegnet til fabrikker, lagre, havne, fragtgårde, kraftværker osv. med et driftstemperaturområde på -20 ℃ til 40 ℃, højder under 1000 meter og miljøer uden brandfarlige, eksplosive eller ætsende medier.
Core Components of CD Single Speed Electric Wire Rope Hoists

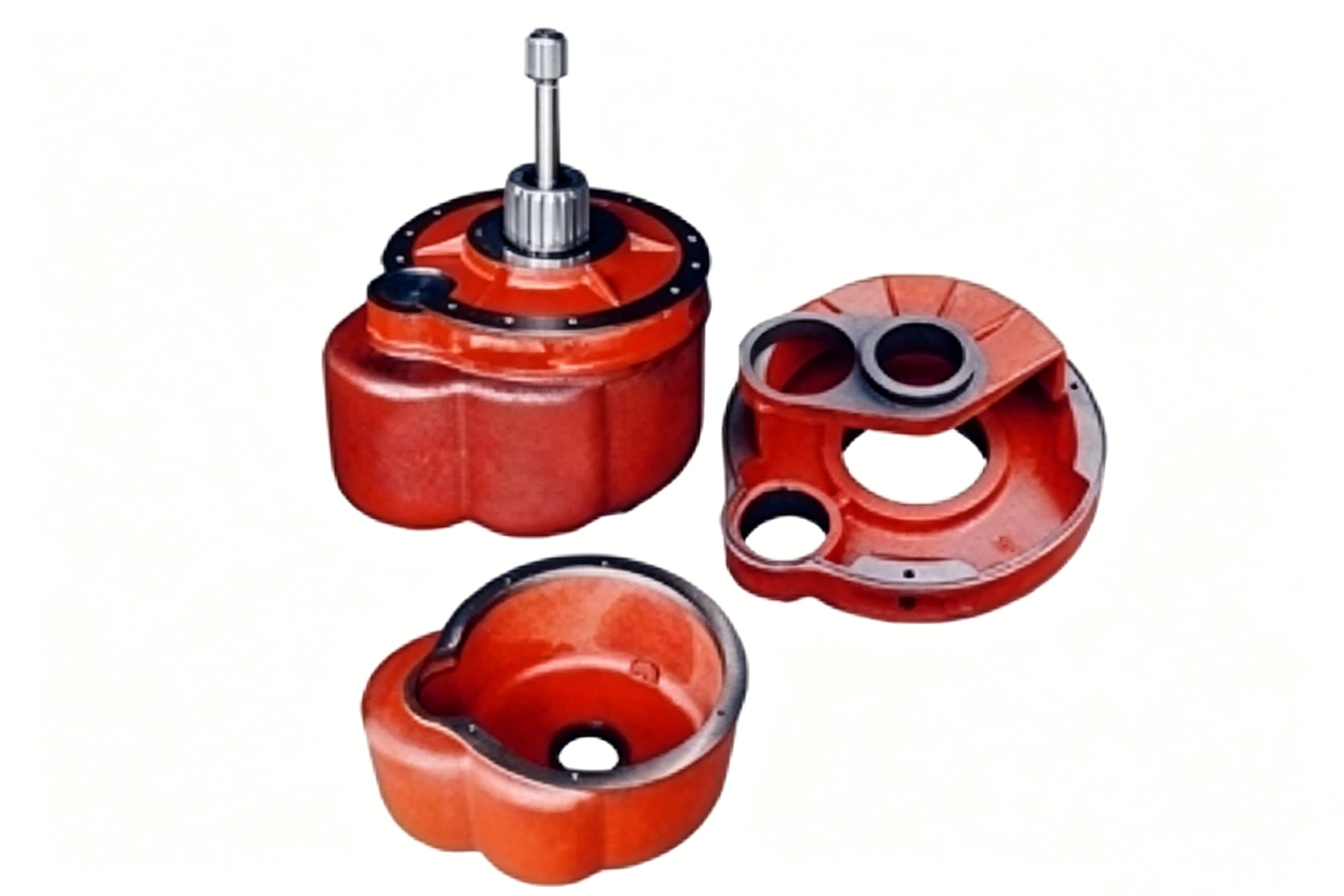

Gearkasse
- Højkvalitetsgear: høj præcision, stærk slidstyrke, jævn transmission
- Karbureret kobling: bedre slagfasthed, forbedret transmissionspålidelighed

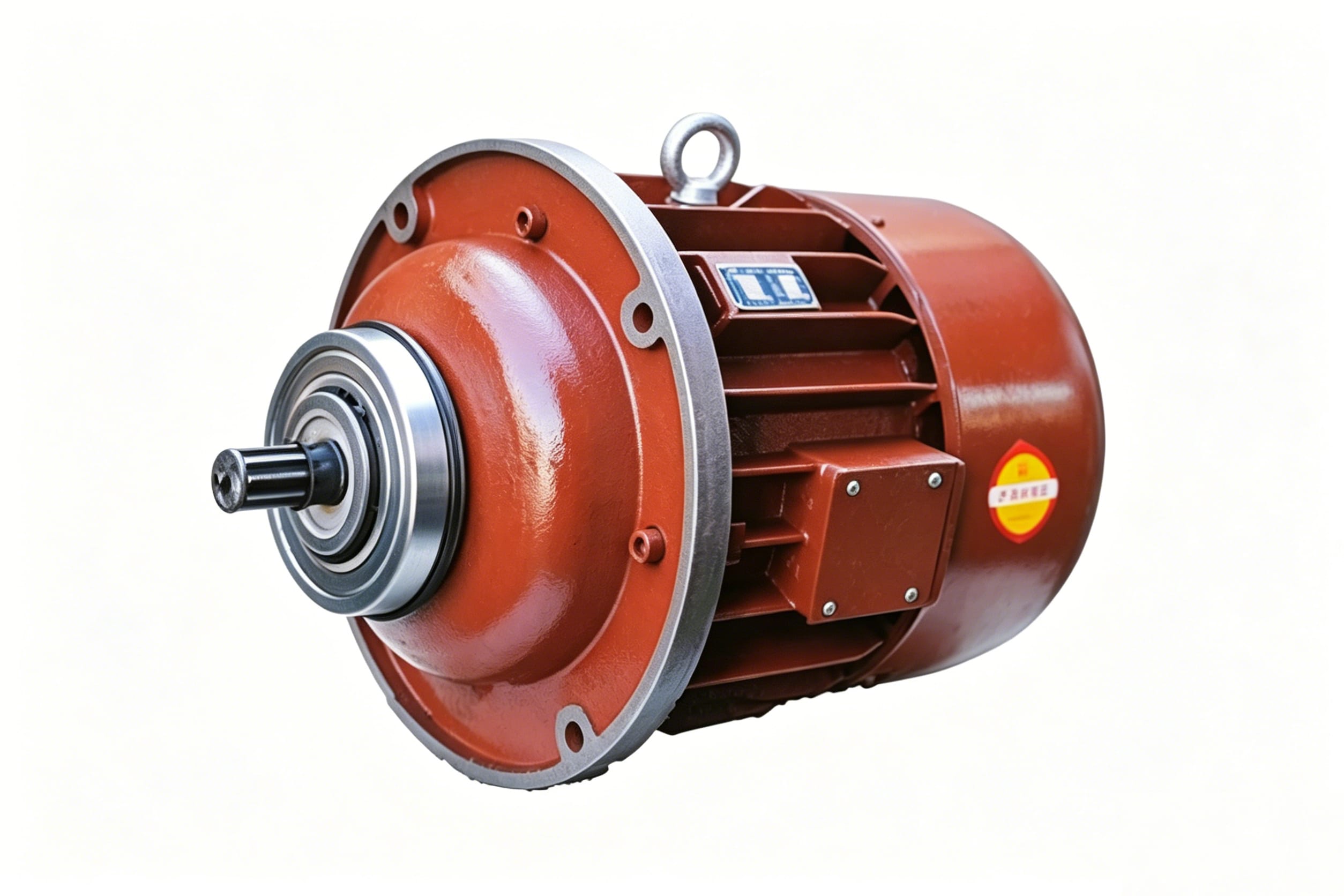

Løftemotor
- Reinforced stator housing, higher magnetic flux
- Smooth operation, to mitigate the adverse effects of the impact forces during startup and shutdown on the cargo

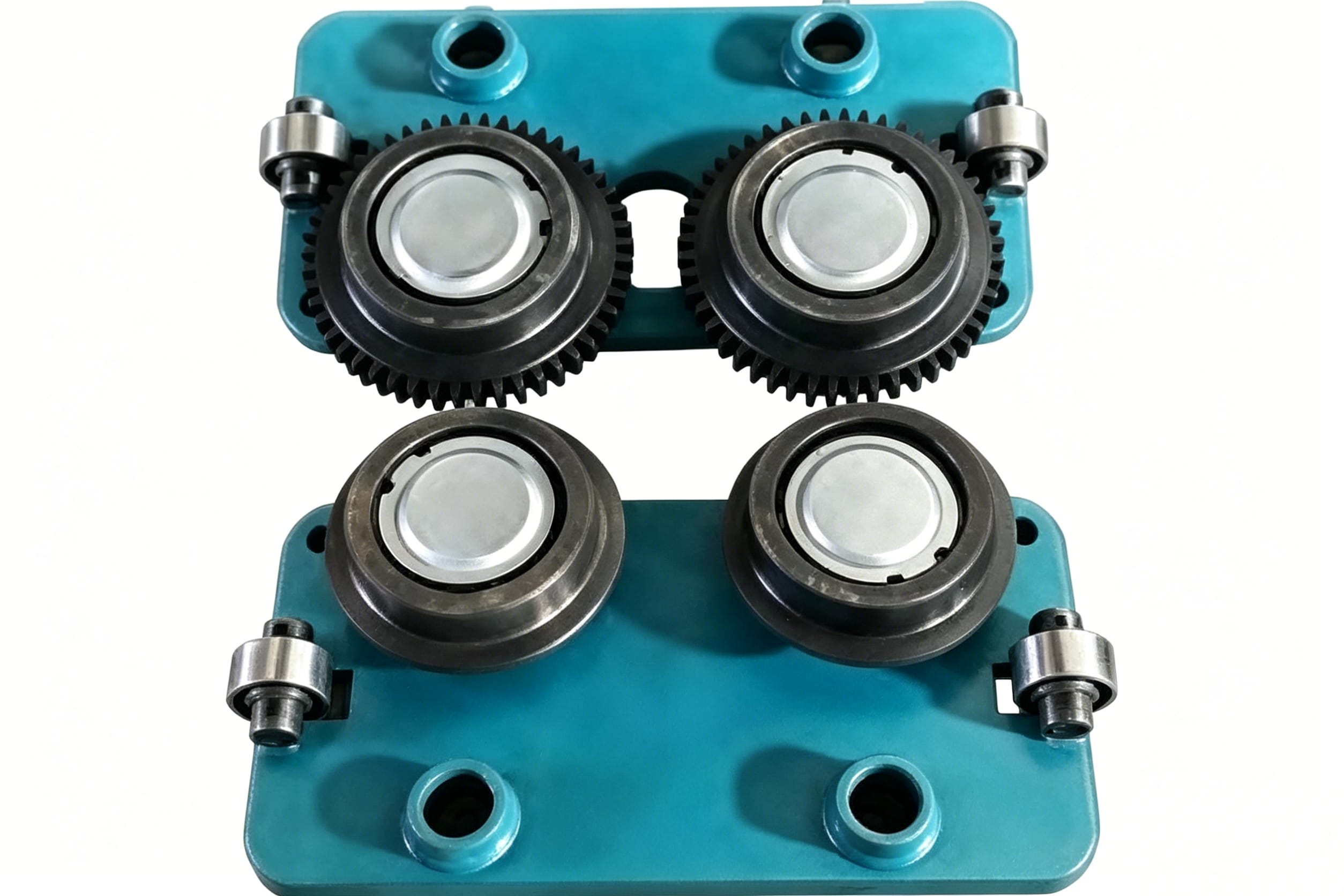

Trolleyhjul
- Karburerede hjul: Høj hårdhed, fremragende slidstyrke, længere levetid
- Nyt anti-klatredesign: Eliminerer klatring og skævhed på skinnerne, hvilket sikrer sikker og jævn kørsel
- Premium-stifter: Høj styrke og præcision for mere pålidelige forbindelser

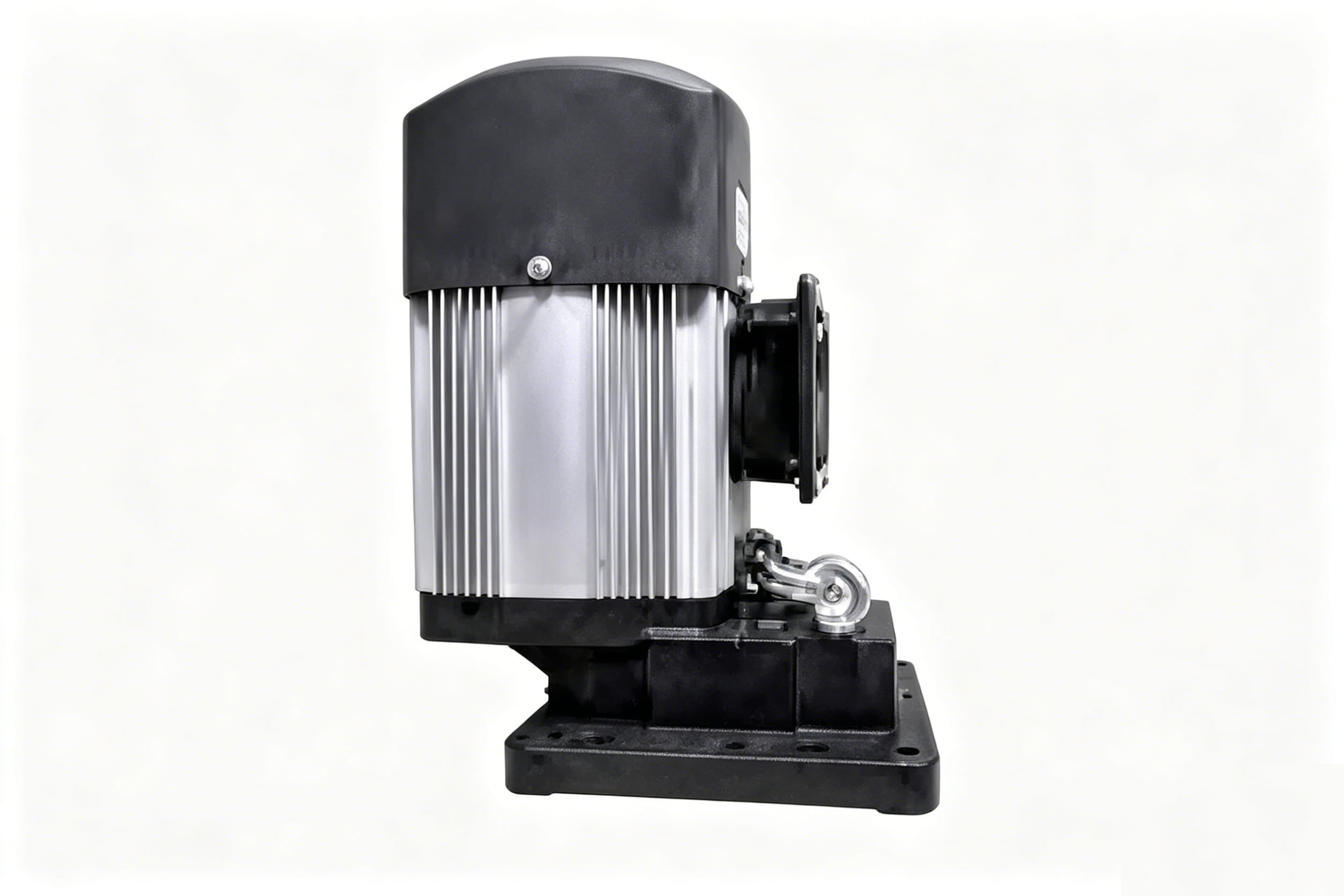

Travel Motor
- 3-in-1 soft-start motor: motor + reducer + brake integrated
- Smooth travel, reduced impact
- Soft start, ≤60dB low noise

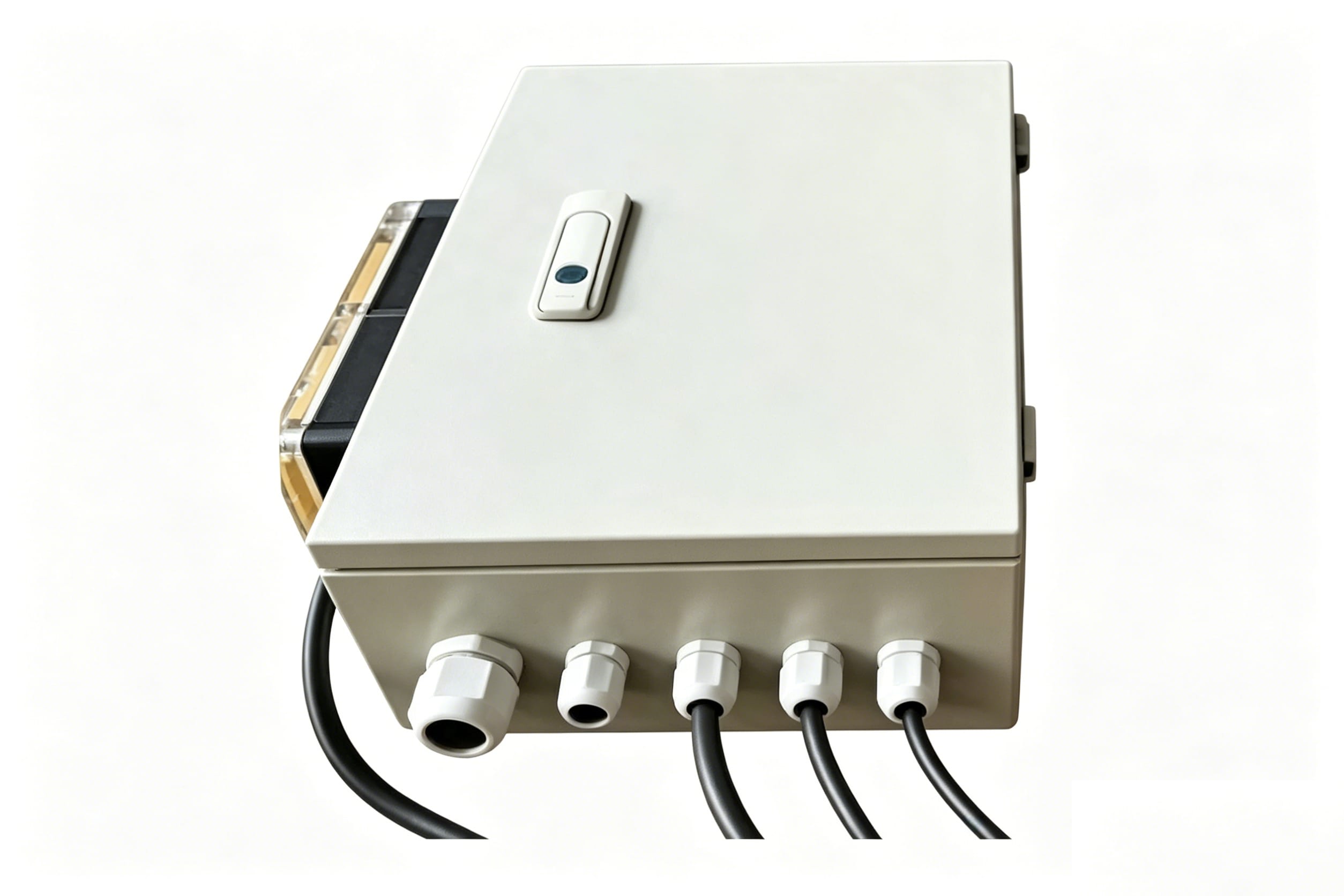

Elektrisk styresystem
- CHINT/DELIXI elektriske dele: stabile, holdbare, lavere fejlrate
- IP54-beskyttelsesboks: støvtæt, stænksikker til barske miljøer
- Indbygget termisk overbelastningsbeskyttelse: temperaturovervågning i realtid, der forhindrer overophedning af motoren
Sammenligning af CD-taljer og MD-taljer
For at imødekomme forskellige løftebehov, ZKHOIST has launched two wire rope electric hoists with different positioning and differentiated designs for different usage scenarios:
| Sammenligningselementer | CD elektriske wiretaljer med én hastighed | MD elektriske wiretaljer med dobbelt hastighed |
|---|---|---|
| Løftehastighed (1t/6m talje) | 8 m/min | 0,8/8 m/min |
| Motor | Enkelt motor | Dobbelt motor / Dobbelt vikling |
| Arbejdspligt | M3 | M3-M4 |
| Kernefordele | Økonomisk, lav pris Nem at vedligeholde | Dobbelte løftehastigheder, jævn drift ved lav hastighed, lav slagkraft |
| Typisk anvendelse | Til lastning og losning på lager, generel hejsning i værksteder og generelle fabriksbygninger er præcis positionering ikke nødvendig. | Præcisionsmontering, lukning af forme, vedligeholdelse af værktøjsmaskiner og hejsning af værdifulde og skrøbelige dele. |
Gratis ekspertsupport: Vælg den rigtige talje til dit projekt
CD Single Speed Electric Wire Rope Hoists are lightweight, compact, efficient, and easy to maintain, making them suitable for general lifting operations in factories and warehouses, improving labor efficiency. If you are unsure about the appropriate tonnage, lifting height, or rail specifications, or want to compare the compatibility of CD/MD Wire Rope Electric Hoists, ZKHOIST Ingeniører vil tilbyde dig en gratis individuel udvælgelsesservice, der hjælper dig med hurtigt at finde det mest passende og økonomiske produkt.
